AYP K103A Parts List

Size:
20.35 Kb
Download

K103A (1996)

Page 1 of 2

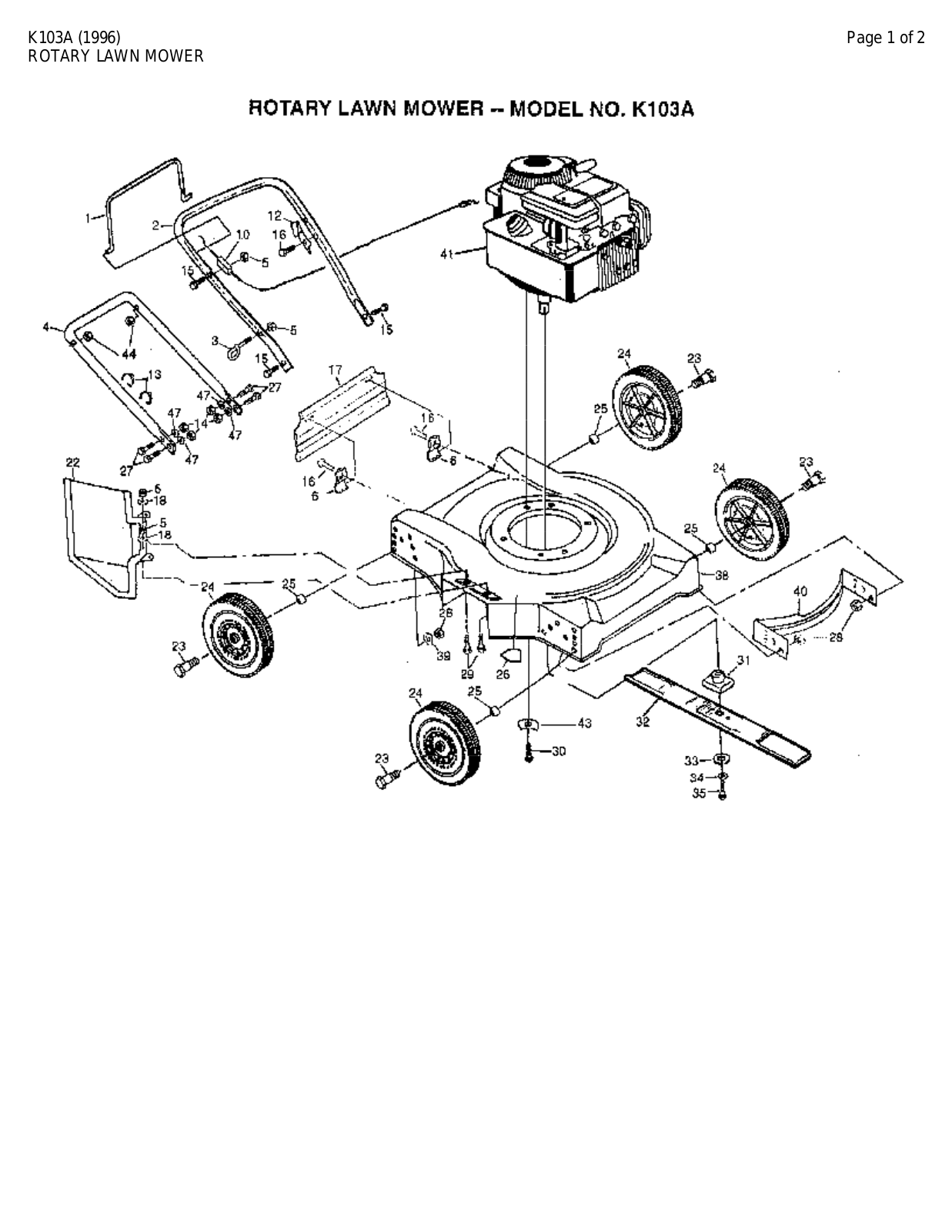

ROTARY LAWN MOWER



K103A (1996)



Page 2 of 2

ROTARY LAWN MOWER

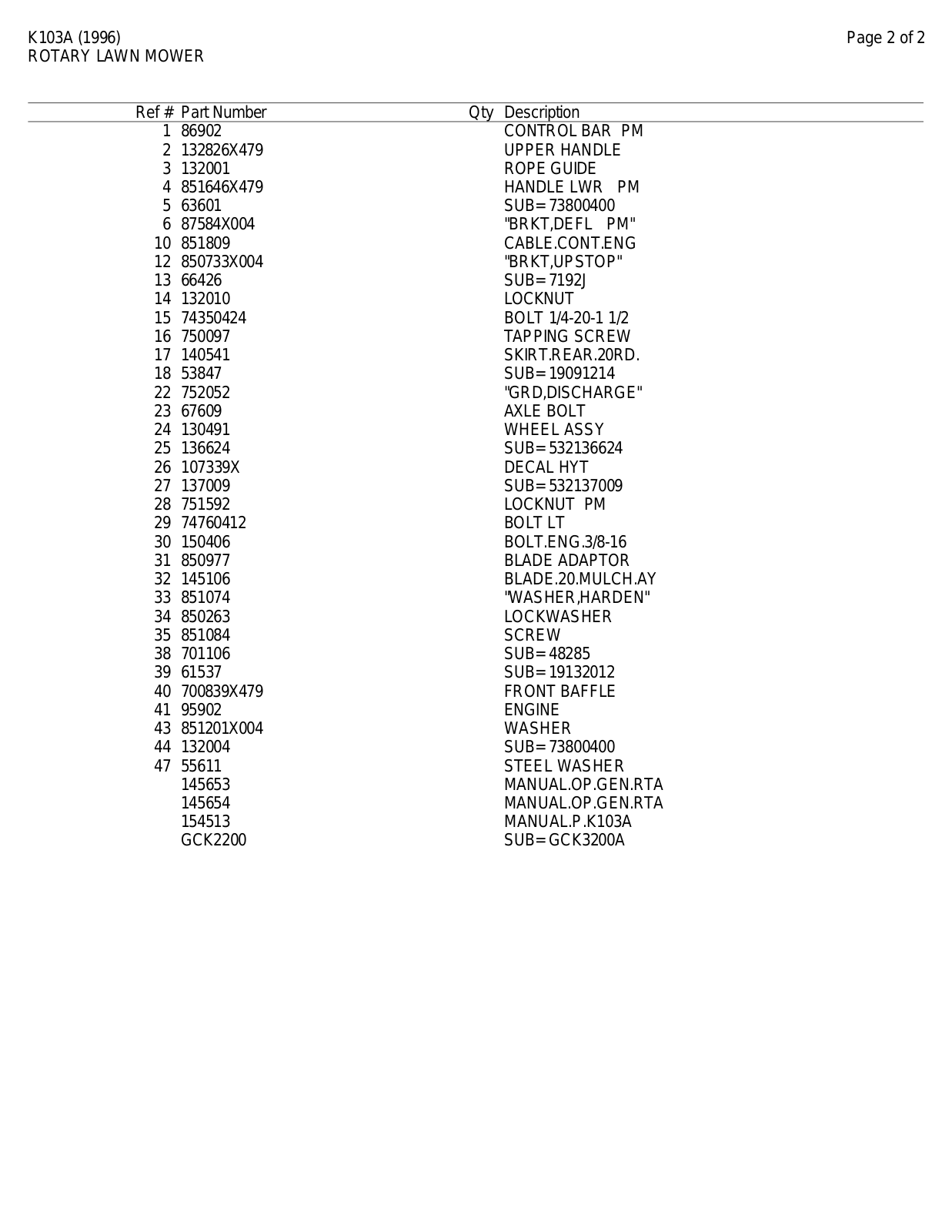

Ref # Part Number

Qty Description

1

86902

CONTROL BAR PM



2

132826X479

UPPER HANDLE

3

132001

ROPE GUIDE

4

851646X479

HANDLE LWR PM

5

63601

SUB= 73800400

6

87584X004

"BRKT,DEFL PM"

10

851809

CABLE.CONT.ENG

12

850733X004

"BRKT,UPSTOP"

13

66426

SUB= 7192J

14

132010

LOCKNUT

15

74350424

BOLT 1/4-20-11/2

16

750097

TAPPING SCREW

17

140541

SKIRT.REAR.20RD.

18

53847

SUB= 19091214

22

752052

"GRD,DISCHARGE"

23

67609

AXLE BOLT

24

130491

WHEEL ASSY

25

136624

SUB= 532136624

26

107339X

DECAL HYT

27

137009

SUB= 532137009

28

751592

LOCKNUT PM

29

74760412

BOLT LT

30

150406

BOLT.ENG.3/8-16

31

850977

BLADE ADAPTOR

32

145106

BLADE.20.MULCH.AY

33

851074

"WASHER,HARDEN"

34

850263

LOCKWASHER

35

851084

SCREW

38

701106

SUB= 48285

39

61537

SUB= 19132012

40

700839X479

FRONT BAFFLE

41

95902

ENGINE

43

851201X004

WASHER

44

132004

SUB= 73800400

47

55611

STEEL WASHER



145653

MANUAL.OP.GEN.RTA



145654

MANUAL.OP.GEN.RTA



154513

MANUAL.P.K103A



GCK2200

SUB= GCK3200A
