AYP HD6A22HWC Parts List

Size:
19.14 Kb
Download

HD6A22HWC (1999)

Page 1 of 2

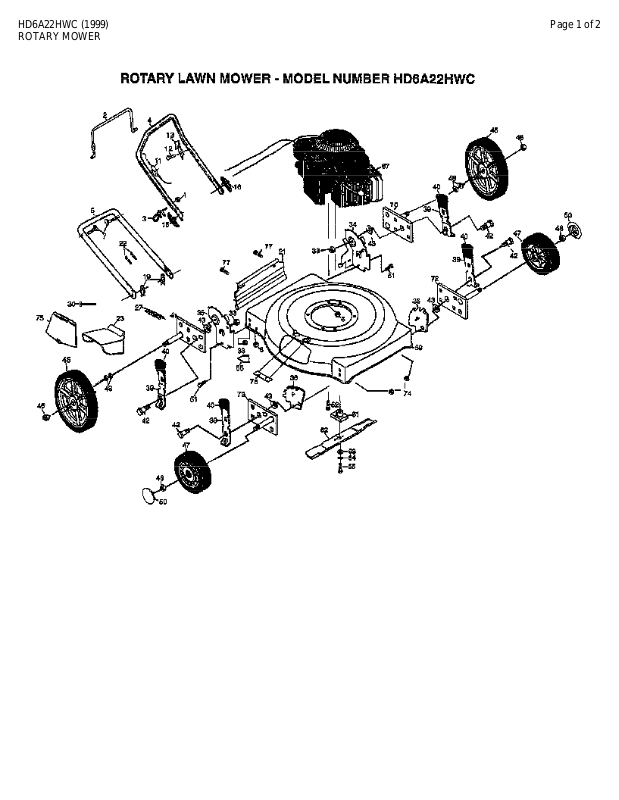

ROTARY MOWER



HD6A22HWC (1999)



Page 2 of 2

ROTARY MOWER













Ref # Part Number

Qty Description

1

63601

SUB= 73800400



2

161748

CONTROL.BAR

3

132001

ROPE GUIDE

4

165540X479

HANDLE.UPPER.COMF.

5

160609X479

LOWER HANDLE

6

63601

SUB= 73800400

7

131959

BOLT.HANDLE.LM

11

162778

ENG ZONE CNTRL CB

12

750097

TAPPING SCREW

13

850733X004

"BRKT,UPSTOP"

16

136376

KNOB HANDLE

19

51793

HAIRPIN COTTER

21

165858

"SKIRT.REAR.22SD/ECON.21"""

22

66426

SUB= 7192J

23

160831

GUARD.DISCHARGE

27

160832

HINGE.SPRING

30

160833

HINGE.ROD.22SD

33

63124

SUB= 73690500

34

168162X479

BRKT.ASM.WHEEL.SUPT.LT

35

168163X479

BKRT.ASM.HDLE/ADJ.LT

36

160835X007

WHEEL.BRKT.ADJ.

39

168360X004

SPRING.SELECTOR.5/9POS

40

87877

KNOB PM

41

169663

AXLE ARM AY

42

160828

SHOULDER BOLT

43

19112222

WASHER.BELLEVELLE

45

700735

ASM WHL & TIRE

46

83923

HEX FLANGE LOCKNT

47

146247

WHEEL.8X2.PR.RAD.

48

57143

WAVE WASHER

50

77400

HUB CAP

51

74760514

BOLT

52

150406

BOLT.ENG.3/8-16

55

141846

DECAL DANGER E/S

59

162685

LAWN MOWER HOUSING

61

851514

ADAPTOR.BLADE.LM

62

141114

"BLADE.MULCH.22"""

63

851074

"WASHER,HARDEN"

64

850263

LOCKWASHER

65

851084

SCREW

67

SUPPLIER

CHECK WITH SUPPLIER

70

169662

AXLE ARM AY

72

167132X004

ARM.ASM.AXLE.RR/LF.

73

167133X004

ARM.ASM.AXLE.LR/RF

74

751153

LOCKNUT

75

160830

MULCHER PLATE

76

161622

CLIP.CLOSECUT.22SD

77

74760412

BOLT LT



161058

DECAL.WARNING



161116

MANUAL.GEN.PUSH



161659

MANUAL.OPER.SPAN



168592

REPLACEMENT PARTS MANUAL



GCK3300

GRASS CATCHER KIT
