AYP DE150DB Parts List

Size:
42.06 Kb
Download

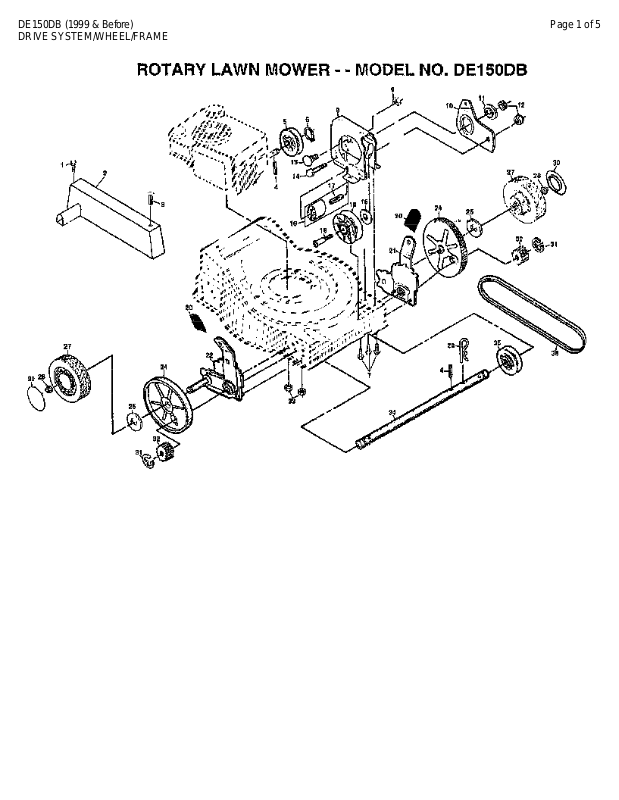

DE150DB (1999 & Before)

Page 1 of 5

DRIVE SYSTEM/WHEEL/FRAME



DE150DB (1999 & Before)

Page 2 of 5

DRIVE SYSTEM/WHEEL/FRAME











Ref # Part Number

Qty Description

1

141912

SCREW HXHD 10-24



2

154049

DRIVE COVER

3

701477

FASTNER PUSH DRCV

4

164795

DRIVE PAWL

5

88043

PULLEY PM

6

12000030

RETAINING RING ST

7

54583

SCREW

8

851947X004

"CLUTCH,FRAME"

9

50962

LOCKNUT

10

702631X004

LEVER.CLUTCH

11

88067

SPACER PM

12

750253

LOCKNUT

13

72070504

CARRIAGE BOLT

14

74350424

BOLT 1/4-20-11/2

15

88069

SPACER PM

16

48160

IDLER ASSY

17

88576

IDLER SPACER

18

88517

SHOULDER BOLT

19

88516

IDLER PULLEY

20

87877

KNOB PM

21

152018

WHEEL ADJ ASSY LH

22

152019

WHEEL ADJ ASSY RH

24

88080

DUST SHROUD PM

25

67725

WASHER FLUT

27

750851

DRIVE WHEEL ASS'Y

28

145212

NUT.HXFLG.LOCK.

29

85179

RETAINER CLIP PM

30

77400

HUB CAP

31

12000058

E-RING.7/16.RE.

32

137054

PINION.GEAR

33

63601

SUB= 73800400

34

700537

SHAFT.DRIVE.17.81

35

88082

DRIVE PULLEY PM

36

111924X

SUB= TH3H340



MA36

CLIPPING DEFL



MK20FRD

"KIT, MULCHER 20"""

DE150DB (1999 & Before)

Page 3 of 5

ROTARY LAWN MOWER



DE150DB (1999 & Before)

Page 4 of 5

ROTARY LAWN MOWER











Ref # Part Number

Qty Description

1

146771

BAIL.CNTRL.DLX.ST



2

167120

HANDLE.UPPER.DL.ST.

3

151590X479

HANDLE.LWR.DLX.20

4

132001

ROPE GUIDE

5

63601

SUB= 73800400

6

131959

BOLT.HANDLE.LM

7

66426

SUB= 7192J

8

158755

PAN HEAD SCREW

9

851462

CONTROL THROTTLE

11

130861

"CABLE,ENG ZONE CO"

12

146392

CONTROL.DRV.20FBD

14

128638

"NUT,WING PM"

15

51793

HAIRPIN COTTER

17

145669

GUIDE.CABLE.FWBD

19

156445X479

BACK PLATE

20

700363X479

BAFFLE.SIDE

21

146143X479

GUARD.FOOT.REAR.

23

147613

KIT.DOOR.RR.20STL

24

751592

LOCKNUT PM

25

151589X479

BRACKET.HDL.LH.

26

151588X479

BRACKET.HDL.RH.

27

150078

SCREW.HXWS.5/16

29

750085X007

BRKT.WHL.ADJ

30

146630

SPACER.HEIGHT.ADJ

32

700331X004

SPRING SELECTOR

33

87877

KNOB PM

34

145935X004

ARM.AXLE.ASM.BZP.

35

62335

"WASHER, BELLEVIL."

36

142748

BOLT SHLD 3/8-16

37

148437

WHEEL.8X1.75.GREY

38

83923

HEX FLANGE LOCKNT

40

77400

HUB CAP

41

146694

SCREW.1/4-20.38

42

53998

SUB= 19131216

43

54583

SCREW

44

133188X479

DISCHARGE GUARD

45

850999

SCREW

46

145494

DECAL.DANGER.CUTF

48

850988

ENGINE SPACER

50

169207X479

REAR BAFFLE

51

170635

FRONT BAFFLE

52

170679

HOUSING ASSY

53

851084

SCREW

54

850263

LOCKWASHER

55

851074

"WASHER,HARDEN"

56

850972

BLADE.STAND.20INC

57

851514

ADAPTOR.BLADE.LM

64

213146

CABLE CLAMP

65

83816

SCREW PM

67

149619

GRASSBAG.250B1.BL

68

149555

FRAME.CATCHER.2.5

70

SUPPLIER

CHECK WITH SUPPLIER

72

150050

SCREW.HXTAP.10-24

73

128415

BLIND RIVET

74

87930

GUIDE CLIP PM

75

88652

HINGE SCREW

76

158755

PAN HEAD SCREW

77

751152

LOCKNUT

DE150DB (1999 & Before)

Page 5 of 5

ROTARY LAWN MOWER











Ref # Part Number

Qty Description

79

155981

HANDLE GRIP



80

17600406

SCREW 1/4X20



161057

DECAL.INTRN.DRIVE.COVER



173868

REPLACEMENT PARTS MANUAL



173869

OPERATOR'S MANUAL
