AYP CT905B Parts List

Size:
52.77 Kb
Download

CT905B (1999 & Before)

Page 1 of 7

GEAR CASE



CT905B (1999 & Before)

Page 2 of 7

GEAR CASE













Ref # Part Number

Qty Description

1

17490416

SCREW.1/4-20



2

137055X004

BRACKET.GEARCASE

3

137053

SHIFTER

4

57072

SEAL

5

702710

PIN GROOVED 1/8X5

6

48373

KIT GEARCASE HALV

7

77881

BEARING

8

137051

SHAFT.WORM

9

137077

SHAFT.DRIVE.SD

10

57079

THRUST WASHER

11

131484

CLUTCH YOKE

12

700343

BUSHING.GEAR BOX

13

86447

PLUG PM

14

137050

GEAR.HELICAL

15

750436X

CLUTCH JAW

16

750369

SUB= 6066J

17

12000003

RING T

18

850848

HI PRO KEY

19

81585X004

SPRING BRKT

CT905B (1999 & Before)

Page 3 of 7

ROTARY LAWN MOWER



CT905B (1999 & Before)



Page 4 of 7

ROTARY LAWN MOWER















Ref # Part Number

Qty Description





1

84676X479

SUB= 151516X479



2

132001

ROPE GUIDE





3

63601

SUB= 73800400

4

131959

BOLT.HANDLE.LM

5

851512

CONTROL BAR

6

66426

SUB= 7192J





7

86055

SUB= 144929





8

700417

"CONTROL, THROTTLE"

9

85723

WASHER PM





10

130861

"CABLE,ENG ZONE CO"

11

850738X479

SUB= 145642X479

12

51793

HAIRPIN COTTER

13

136376

KNOB HANDLE

14

134254

SUB= 140539





15

750097

TAPPING SCREW

16

701969X479

SUB= 150959





17

701971X479

SUB= 150959





18

55187

SCREW





19

59289

STEEL WASHER

20

74760612

SUB= 74780612

21

751592

LOCKNUT PM

22

700325X007

BRACKET.ADJ.9POS.

23

84920

SUB= 146630





24

87584X004

"BRKT,DEFL

PM"

25

700331X004

SPRING SELECTOR

26

87877

KNOB PM





27

851119X004

AXLE ARM ASSY R

28

61651

WASHER





29

84921

SUB= 142748





30

700735

ASM WHL & TIRE

31

57143

WAVE WASHER

32

83923

HEX FLANGE LOCKNT

33

850709

ROD SUPPORT

34

851856

SCREW





35

88348

WASHER PM





36

850998

SCREW





37

851201X004

WASHER





38

134612

SUB= 48283





39

132352X479

BAFFLE FRONT 22SD

40

701664

KIT.HSG.22SD.FWGD

41

54583

SCREW





42

111662X479

WHL SUPT BRKT RH

43

851084

SCREW





44

850263

LOCKWASHER

45

851074

"WASHER,HARDEN"

46

850973

"BLADE.22"""





47

851514

ADAPTOR.BLADE.LM

48

851854

"ROD,HINGE

"



49

851852X004

"BRKT,HSG"





50

111661X479

WHL SUPT BRKT LH

51

851855

"SPRING,TORSION"

52

850724

SUB= 155890





53

74510400

KEPS LOCKNUT

54

851750

SUB= 532851750

55

87677

HI PRO KEY PM

56

59708

SCREW





57

84596

ENGINE.PULLEY.FWG

58

213146

CABLE CLAMP

CT905B (1999 & Before)

Page 5 of 7

ROTARY LAWN MOWER











Ref # Part Number

Qty Description

59

83816

SCREW PM



60

74100412

SCREW

61

85463

DECAL-DANGERPM

62



REFER TO IMAGE

63

83731

PUSH ON SPEED NUT

64

851552

"SCREW,PAN HD"



83976X479

"BAFFLE,REAR"



140755

MANUAL OPR GEN SP



142260

MANUAL.P.CT905B



137340

DECAL.HSG.LOGO.22

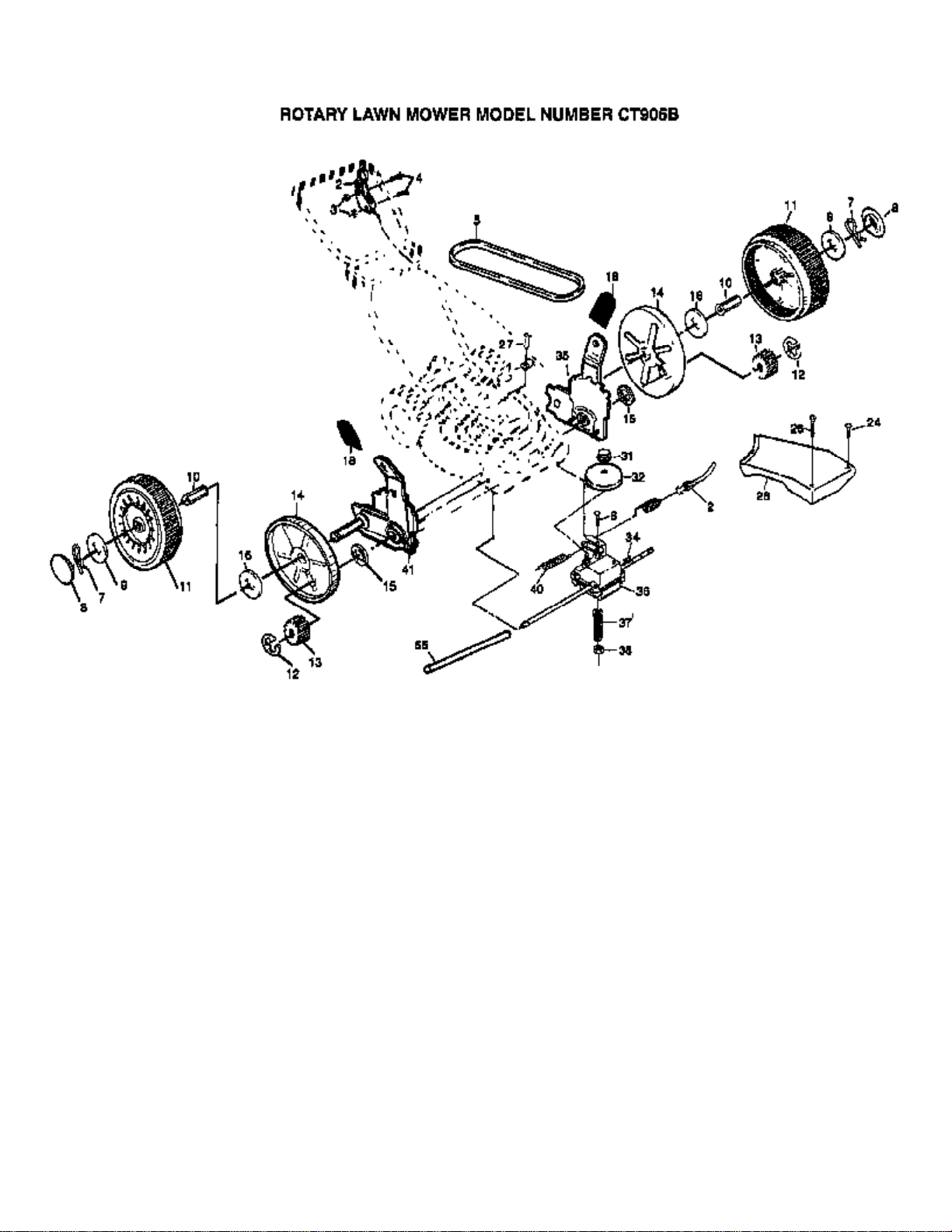

CT905B (1999 & Before)

Page 6 of 7

ROTARY LAWN MOWER



CT905B (1999 & Before)

Page 7 of 7

ROTARY LAWN MOWER











Ref # Part Number

Qty Description

1

87930

GUIDE CLIP PM



2

700615

CONTROL.DRIVE

3

69180

LOCKNUT

4

750029

SCREW

5

137078

SUB= 157769

6

700875

BOLT.1/4-20X2.0

7

85179

RETAINER CLIP PM

8

77400

HUB CAP

9

52160

WASHER

10

88446

BUSHING.HEX

11

700953

WHEEL.8X2.LP.PR

12

12000058

E-RING.7/16.RE.

13

137054

PINION.GEAR

14

88080

DUST SHROUD PM

15

88118

WASHER PM

16

67725

WASHER FLUT

18

87877

KNOB PM

24

136797

SUB= 149746

26

87866

SUB= 146072

27

750097

TAPPING SCREW

28

137080

COVER DRIVE BLK

29

77881

BEARING

31

132010

LOCKNUT

32

137052

PULLEY.DRIVEN

34

850848

HI PRO KEY

35

700339

SUB= 151228

36

702510

SUB= 48366

37

137090

SPRING.TENSION

38

63601

SUB= 73800400

40

75192

SPRING

41

700340

SUB= 151226

55

86012

DRV SHAFT TUBE PM



700739

DECAL.CVR.DR.22SD
