AYP CP14542B Parts List

Size:
199.59 Kb
Download

CP14542B (1995)

Page 1 of 25

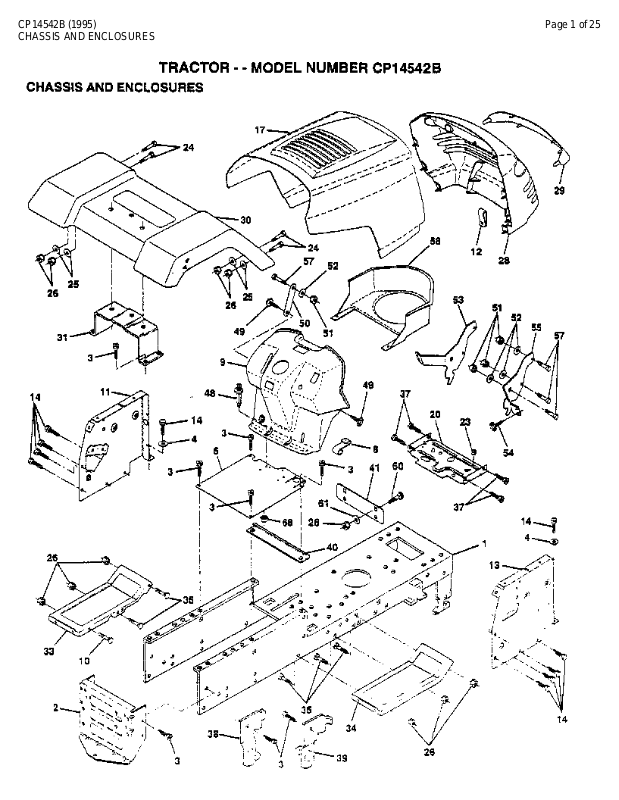

CHASSIS AND ENCLOSURES



CP14542B (1995)



Page 2 of 25

CHASSIS AND ENCLOSURES











Ref # Part Number

Qty Description

1

145501

CHASSIS.WLD.11GA



2

140356

SUB= 145009

3

17490612

SCREW

4

19131216

WASHER

6

145206

SUB= 145206X431

8

126471X

"CLIP,INSULATOR"

9

140622

SUB= 532142467

10

72140608

SUB= 72110608

11

140815

SUB= 146965

12

145660

CLIP.TINNERMAN

13

140178

SUB= 146959

14

17490608

SCREW LT

17

139394X520

HOOD.STL.PRV.LA

20

145210

PLATE.MTG.BTRY.TK

23

124028X

SUB= 532124028

24

74780616

BOLT

25

19131312

WASHER

26

73800600

NUT

28

140141

SUB= 157373

29

140273

LENS GRILLE

30

140001X520

FENDER.PNTD

31

139976

BRACKET SUPT FEND

33

145244X417

FOOTREST.LH.LT/GT

34

145243X417

FOOTREST.RH.LT/GT

35

72110606

BOLT

37

17490512

SCREW

38

139886

BRACKET ASM LH

39

139887

BRACKET ASM RH

40

139977

SPACER FENDER LT

41

139978

PLATE EXTEN FEND

48

138096

RIVET.PUSH.PLATE

49

17490412

SCREW HEX CRT

50

142779

BRACE SUPT DASH

51

73800400

NUT

52

19091416

WASHER

53

144697

BRACKET.GRILLE.LH

54

17030814

SUB= 91817030814

55

144696

BRACKET.GRILLE.RH

57

74780412

SUB= 74780414

58

140806

DUCT AIR 12-15H

60

72140608

SUB= 72110608

61

19171416

WASHER

68

73510400

NUT



5479J

PLUG BUTTON T



134014

PLUG DOME

CP14542B (1995)

Page 3 of 25

DECALS



CP14542B (1995)



Page 4 of 25

DECALS













Ref # Part Number

Qty Description

1

140819

SUB= 156867



2

135594

NLA

3

145588

DECAL.HD.RH.CP.

4

145589

DECAL.HD.LH.CP.

5

135013

NLA

6

272991

DECAL, ENGINE

8

133796

DECAL

9

4900J

DECAL T

10

131425

CHASSIS DECAL

11

136832

DECAL

12

138841

DECAL.FEND.QUICK.



133671

FOOTREST PAD



138311

DECAL HANDLE LIFT



145278

MANUAL.OP.GENERIC



148722

MAN.PTS.CP14542B



LBD48

SNOW BLADE



LSB42

SNOW THROWER



LC05

WHEEL WTS.



C42

GRASS CATCHER



CH208

TIRE CHAINS

CP14542B (1995)

Page 5 of 25

DRIVE



CP14542B (1995)



Page 6 of 25

DRIVE













Ref # Part Number

Qty Description

1

145605

SUB= 161899



2

146682

SPRING.BRAKE.RETU

3

123666X

PULLEY TRANS

4

12000028

SUB= 2267J

5

121520X

STRAP TORQUE

6

17490512

SCREW

8

141003

ROD SHIFT FEND LT

10

76020416

PIN COTTER 1/8

11

105701X

WASH-SHFTPLT LT

12

19151216

WASHER

13

74550412

BOLT.1/4-28.W/PAT

14

10040400

LOCKWASHER

15

74780544

BOLT HEX

18

74780616

BOLT

19

73800600

NUT

21

106933X

KNOB T (1/2-HOLE)

22

130804

BRAKE ROD

24

73350600

NUT

25

106888X

SPRING ROD LT

26

19131316

WASHER

27

76020412

COTTER PIN

28

145204

ROD.BRAKE.PARK.LT

29

71673

PLUNGER CAP T

30

130807

TRANSAXLE MTG BKT

31

127275X

"KEEPER,BELT LH T"

32

74760512

BOLT

34

149001

SHAFT.PEDAL.FOOT

35

120183X

NYLON BEARING

36

19211616

WASHER LT

37

1572H

SUB= 2882J

38

123674X

PULLEY.IDLER.FLAT

39

74760644

BOLT

40

4470J

SPACER T

41

109070X

BELT KEEPER LT

42

19131312

WASHER

44

105706X

"LY, BEARING"

45

110812X

WASHER LT

46

12000039

KLIP RING

47

127783

SUB= 139245

48

123789X

ARM IDLER

49

123205X

RETAIN BELT

50

74760624

SUB= 74930624

51

73680600

SUB= 73690600

52

73680500

SUB= 73690500

53

105710X

"LINK, CLUTCH T"

55

105709X

"SPRING, RETURN LT"

56

74760620

SUB= 74780620

57

130801

SUB= 138255

58

127274X

"KEEPER,BELT RH T"

59

140312

KEEPER BELT CNTSP

61

17490612

SCREW

62

8883R

PEDAL COVER T

63

140186

PULLEY.ENGINE

64

71170764

BOLT

65

10040700

LOCKWASHER

66

129921

KEEPER.BELT.ENG.L

67

74760616

BOLT

70

134683

KEEPER BELT ENG

CP14542B (1995)



Page 7 of 25

DRIVE













Ref # Part Number

Qty Description

72

19132012

WASHER



74

109502X

SPACER LT

75

121749X

WASHER

76

12000001

E-RINGLT

77

123583X

SQUARE KEY

78

121748X

WASHER

80

131487

ARM SHIFT TRANS

81

136933

SHAFT ASM.SHIFT

82

123782X

"SPRING,TORSION"

83

19171216

WASHER

84

132183

TIE ROD

85

73530400

NUT 1/4-28

86

71208

BUSHING

87

19212016

WASHER D

88

12000008

KLIP RING

89

139964

SUB= 918139964

90

124346X

NUT

100

19111216

WASHER M

CP14542B (1995)

Page 8 of 25

ELECTRICAL



CP14542B (1995)



Page 9 of 25

ELECTRICAL













Ref # Part Number

Qty Description

1

121265X

SUB= 123899X



2

74760412

BOLT LT

3

19091016

WASHER

4

10040400

LOCKWASHER

5

121264X

"CAP,BATTERY "

6

73220400

SUB= 50675

7

109238X

TUBE T

8

144940

SUB= 156417

9

109596X

HOSE CLAMP T

19

10090400

SUB= 10040400

20

73350400

NUT

21

136850

"HARNESS,LIGHT SOC"

22

4152J

HEADLAMP BULB

24

4799J

"CABLE T, BATTERY"

25

146147

CABLE.BTRY.6GA.RD

26

108824X

FUSE HYT

28

4207J

CABLE T

29

121305X

SWITCH SEAT

30

140301

SWITCH IGN 4POS

31

124211X

NUT IGNITION

32

141226

COVER KEY SWITCH

33

122147X

KEY

35

108236X

BRACKET LT

36

17021008

SCREW

38

140336

BRACKET SWITCH IN

39

109553X

SWITCH INTERLOCKT

40

146058

SUB= 151212

41

71110412

BOLT.HX.1/4-20

42

131563

SUB= 154336

43

145673

SUB= 146154

44

73510400

NUT

45

121433X

SUB= 122822X

46

141940

PROTECTION LOOP

70

141164

HARNESS ENGINE
