AYP CHD4QE22SC Parts List

Size:
19.01 Kb
Download

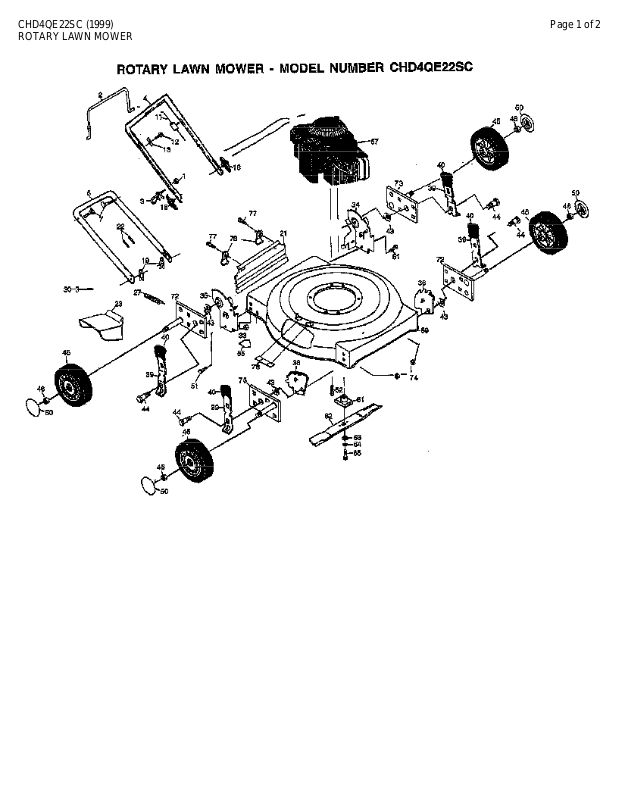

CHD4QE22SC (1999)

Page 1 of 2

ROTARY LAWN MOWER



CHD4QE22SC (1999)



Page 2 of 2

ROTARY LAWN MOWER











Ref # Part Number

Qty Description

1

63601

SUB= 73800400



2

86902

CONTROL BAR PM

3

132001

ROPE GUIDE

4

165452X479

HANLDE.UPPER.STAND.

5

157081X479

HANDLE LOWER

7

131959

BOLT.HANDLE.LM

11

158152

"CABLE-MZR,SNAP"

12

750097

TAPPING SCREW

13

86899X004

"BRKT,UPSTOP PM"

16

136376

KNOB HANDLE

19

51793

HAIRPIN COTTER

21

165858

"SKIRT.REAR.22SD/ECON.21"""

22

66426

SUB= 7192J

23

160831

GUARD.DISCHARGE

27

160832

HINGE.SPRING

30

160833

HINGE.ROD.22SD

33

751153

LOCKNUT

34

168164X479

BRKT.HDLE/ADJ.LT

35

168165X479

BRKT.HDLE/ADJ.RT

36

160835X007

WHEEL.BRKT.ADJ.

39

168360X004

SPRING.SELECTOR.5/9POS

40

87877

KNOB PM

43

19112222

WASHER.BELLEVELLE

44

160828

SHOULDER BOLT

45

107644X

WHEEL & TIRE PM

46

83923

HEX FLANGE LOCKNT

50

77400

HUB CAP

51

17600406

SCREW 1/4X20

52

150406

BOLT.ENG.3/8-16

55

107333X

DANGER DECAL

59

163326

LAWN MOWER HOUSING

61

851514

ADAPTOR.BLADE.LM

62

141114

"BLADE.MULCH.22"""

63

851074

"WASHER,HARDEN"

64

850263

LOCKWASHER

65

851084

SCREW

67

SUPPLIER

CHECK WITH SUPPLIER

72

167132X004

ARM.ASM.AXLE.RR/LF.

73

167133X004

ARM.ASM.AXLE.LR/RF

74

751153

LOCKNUT

76

161622

CLIP.CLOSECUT.22SD

77

750097

TAPPING SCREW

78

87584X004

"BRKT,DEFL PM"



162300

DECAL.WARNING



161116

MANUAL.GEN.PUSH



163686

MANUAL.OPER.FRENCH



169816

REPLACEMENT PARTS MANUAL



GCK3300

GRASS CATCHER KIT



MK3300

MULCHER KIT
