AYP AN2B351A Parts List

Size:
21.33 Kb
Download

AN2B351A (1999 & Before)

Page 1 of 2

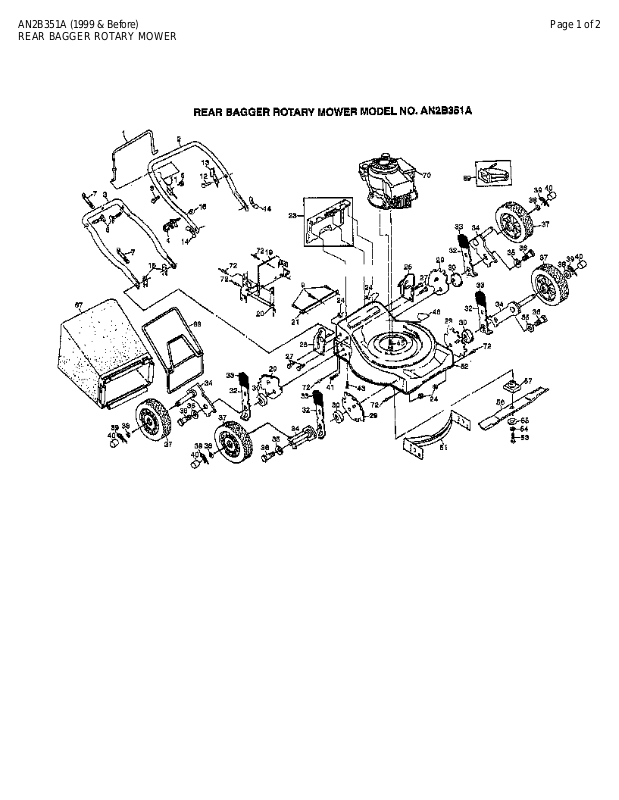

REAR BAGGER ROTARY MOWER



AN2B351A (1999 & Before)

Page 2 of 2

REAR BAGGER ROTARY MOWER











Ref # Part Number

Qty Description

1

86902

CONTROL BAR PM



2

132649X479

SUB= 160223X479

3

84676X479

SUB= 151516X479

4

132001

ROPE GUIDE

5

63601

SUB= 73800400

6

131959

BOLT.HANDLE.LM

7

66426

SUB= 7192J

8

74350424

BOLT 1/4-20-11/2

9

146694

SCREW.1/4-20.38

11

130861

"CABLE,ENG ZONE CO"

12

750097

TAPPING SCREW

13

850733X004

"BRKT,UPSTOP"

14

128638

"NUT,WING PM"

15

51793

HAIRPIN COTTER

16

73510400

NUT

19

145854X479

PLATE.BACK.PNT.

20

700363X479

BAFFLE.SIDE

21

146143X479

GUARD.FOOT.REAR.

23

147613

KIT.DOOR.RR.20STL

24

751592

LOCKNUT PM

25

700913X419

SUB= 150956

26

700915X419

SUB= 150956

27

55187

SCREW

29

700375

SUB= 700325X007

30

84920

SUB= 146630

32

700331X004

SPRING SELECTOR

33

87877

KNOB PM

34

85021X004

AXLE ARM

35

62335

"WASHER, BELLEVIL."

36

142748

BOLT SHLD 3/8-16

37

700263

WHEEL ASM

38

52160

WASHER

39

85179

RETAINER CLIP PM

40

800090

HUB CAP-PLASTIC

41

88652

HINGE SCREW

43

54583

SCREW

45

850998

SCREW

46

145494

DECAL.DANGER.CUTF

51

701640X479

BAFFLE.FRONT

52

147828

KIT.HSG.20RD.PUSH

53

851084

SCREW

54

850263

LOCKWASHER

55

851074

"WASHER,HARDEN"

56

145106

BLADE.20.MULCH.AY

57

850977

BLADE ADAPTOR

67

147270

GRASSBAG.170A1.GE

68

750532

FRAME.CATCHER.ASM

69

MA36

CLIPPING DEFL

70



CHECK WITH SUPPLIER

72

128415

BLIND RIVET



149153

GUARD.MUFFLER.TEC



851856

SCREW



146953

MANUAL.OP.GEN.ENG



146954

MANUAL.OP.GEN.PUS



147822

MANUAL.P.AN2B351A
