AYP 8933 Parts List

Size:
184.49 Kb
Download

8933 (1999 & Before)

Page 1 of 26

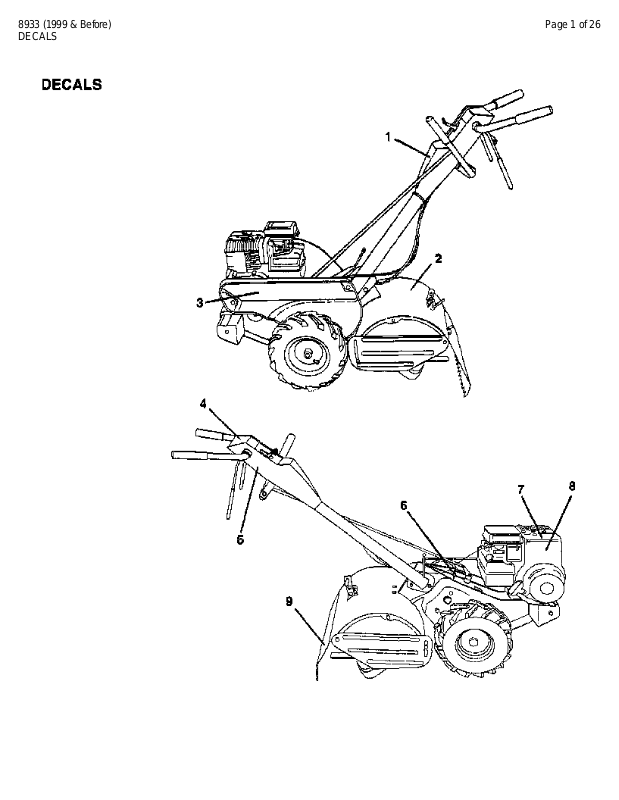

DECALS



8933 (1999 & Before)



Page 2 of 26

DECALS













Ref # Part Number

Qty Description

1

137457

DECAL.PNL.CNT.



2

137458

DECAL.SHLD.TINE

3

137459

DECAL.GD.BELT 3.5

4

136943

DECAL.INSTRUCTION

5

120431X

DECAL TI

6

102180X

DECAL CRT

7

110593X

SUB= 121858X

8

126230X

"DECAL,ENG HP"

9

120075X

DECAL TI



137168

NLA

8933 (1999 & Before)

Page 3 of 26

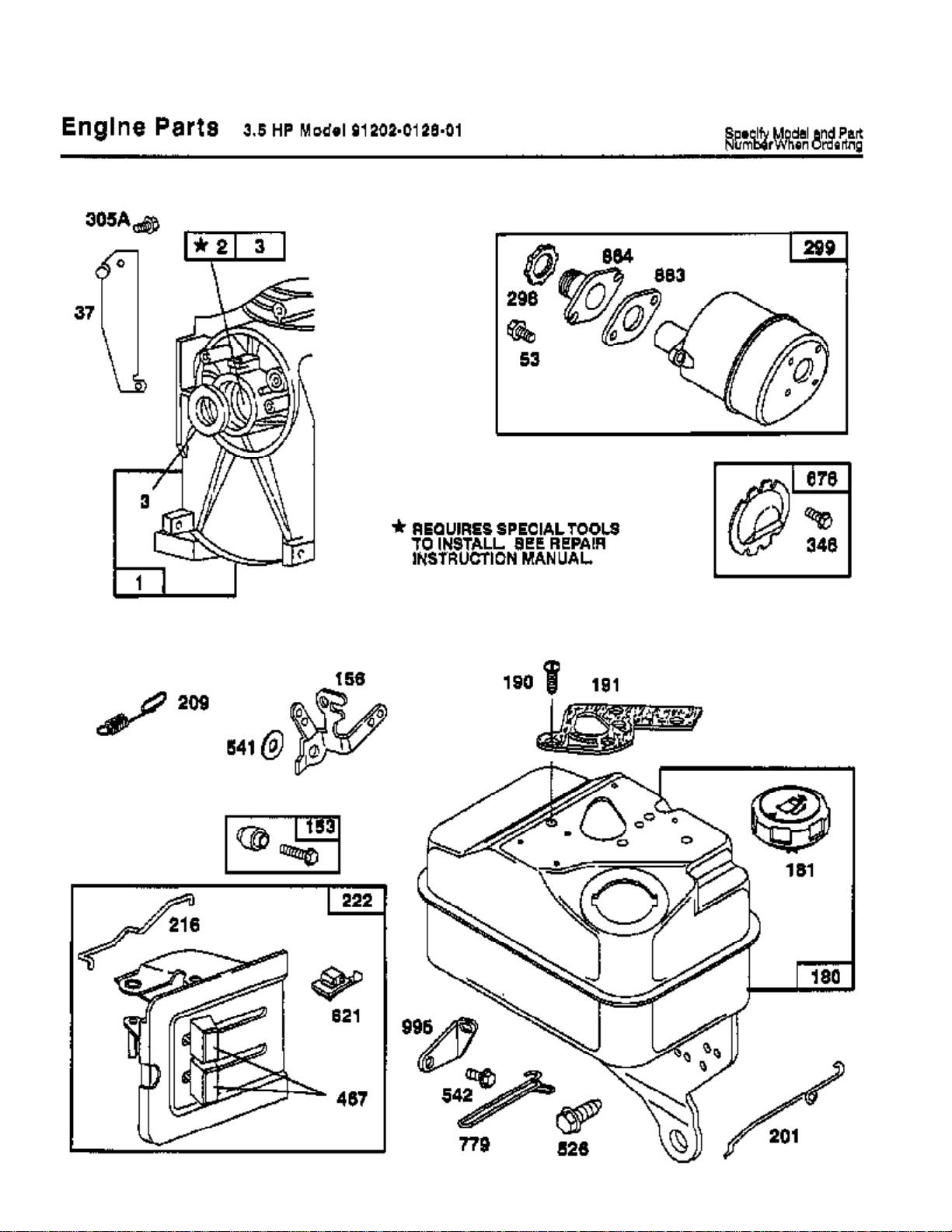

ENGINE



8933 (1999 & Before)



Page 4 of 26

ENGINE













Ref # Part Number

Qty Description

1

494549

CYLINDER ASSEMBLY



2

293708

BUSHING, CYLINDER

3

299819

SEAL, OIL

5

213942

HEAD, CYLINDER

7

272536

GASKET, CYLINDER HEAD

8

294178

BREATHER, VALVE CHAMBER

9

27549

GASKET, VALVE COVER

10

93394

SCREW, SEMS, BREATHER, MOUNTING

11

66578

GROMMET, BREATHER TUBE

12

270833

GASKET, CRANKCASE, STANDARD .015"



270895

GASKET, CRANKCASE .005"



270896

GASKET, CRANKCASE .009"

13

93111

SCREW, CYLINDER HEAD

15

94387

PLUG OIL DRAIN



93448

PLUG, PIPE, HEX SOCKET

16

492880

CRANKSHAFT



230978

CRANKSHAFT GEAR PIN

18

394820

BUSHING, CRANKCASE COVER

19

293708

BUSHING, CYLINDER

20

299819

SEAL, OIL

21

66768

PLUG, OIL FILLER

22

94607

SCREW, SEM, MOUNTING

23

296884

KEY, FLYWHEEL

24

222698

KEY, FLYWHEEL

25

298904

PISTON ASSEMBLY, STANDARD



298905

PISTON ASSEMBLY .010" OVERSIZE



298906

PISTON ASSEMBLY .020" OVERSIZE



298907

PISTON ASSEMBLY .030" OVERSIZE

26

298982

RING SET, PISTON, STANDARD



298983

RING SET, PISTON .010" OVERSIZE



298984

RING SET, PISTON .020" OVERSIZE



298985

RING SET, PISTON .030" OVERSIZE

27

26026

LOCK, PISTON PIN

28

298909

PIN ASSY, PISTON, STD



298908

PIN ASSEMBLY, PISTON .005" OVERSIZE

29

294367

ROD ASSEMBLY, CONNECTING



296079

ROD ASSEMBLY, CONNECTING .020" UNDERSIZE





CRANKPIN

30

220670

DIPPER, CONNECTING ROD

32

94404

SCREW, CONNECTING ROD

33

296676

VALVE, EXHAUST

34

296677

VALVE, INTAKE

35

260552

SPRING, INTAKE VALVE

37

224557

GUARD, FLYWHEEL

40

93312

RETAINER, VALVE SPRING

45

230173

TAPPET, VALVE

46

493747

GEAR, CAM

52

271936

GASKET, INTAKE ELBOW MOUNTING

53

94523

SCREW, EXHAUST

56

280439

PULLEY, STARTER

57

490179

SPRING, REWIND STARTER

58

280406

ROPE, REWIND STARTER

60

393152

HANDLE, REWIND STARTER

66

399671

CLUTCH ASSEMBLY, REWIND STARTER

67

394897

HOUSING, STARTER CLUTCH

68

63770

BALL, CLUTCH

70

298799

RATCHET, REWIND STARTER

8933 (1999 & Before)



Page 5 of 26

ENGINE















Ref #

Part Number

Qty Description

71

394506

WASHER, CLUTCH RETAINER



73

221661

SCREEN, REWIND STARTER

74

93758

SCREW, SEMS

75

223047

WASHER, SPRING

90

492645

CARBURETOR ASSEMBLY

95

93499

SCREW

96

223793

THROTTLE, CARBURETOR

97

490371

SHAFT AND LEVER, THROTTLE

108

490495

VALVE GROUP, CHOKE

118

231533

VALVE, NEEDLE

124

94616

SCREW, ELBOW MOUNTING

127

220352

PLUG, WELCH

127A

223789

PLUG, WELCH

149

26336

SPRING, NEEDLE VALVE

152

260575

SPRING, THROTTLE ADJUSTMENT

153

490501

SCREW, CARBURETOR CAM AND LEVER

154

93527

SCREW, MACHINE, ROUND HEAD

156

492905

LEVER, SPEED ADJUSTER, FIXED SPEED

163

271935

GASKET, AIR CLEANER MOUNTING

180

495377

TANK ASSEMBLY, FUEL

181

494559

CAP, FUEL TANK

190

94712

SCREW, FUEL TANK

191

272489

GASKET, FUEL TANK TO CARBURETOR

200

495213

BLADE, GOVERNOR

201

262325

LINK, AIR VANE GOVERNOR

209

262317

SPRING, AIR VANE GOVERNOR

216

262359

LINK, CHOKE

222

490649

PANEL, CONTROL

298

220859

LOCKNUT, MUFFLER

299

493288

MUFFLER, EXHAUST

676

393756

DEFLECTOR, MUFFLER

305A

93777

SCREW, HEX HEAD BACK PLATE TO CYLINDER

306

224555

SHIELD, CYLINDER

307

93758

SCREW, SEMS

308

224556

COVER, CYLINDER HEAD

333

398593

ARMATURE, MAGNETO

334

93381

SCREW, SEM, ARMATURE MOUNTING

337

802592

PLUG, SPARK

346

93705

SUB= 69485

356

398808

WIRE, GROUND

358

494550

GASKET SET

363

19069

PULLEY, FLYWHEEL

383

262328

SPRING, FUEL PUMP DIAPHRAGM

392

262328

SPRING, FUEL PUMP DIAPHRAGM

394

270026

DIAPHRAGM

432

221377

CAP, SPRING

433

93265

PIN, DIAPHRAGM COVER

434

210959

COVER, DIAPHRAGM

467

280715

KNOB, CONTROL

526

94408

SCREW SEMS TANK BRKT MOUNT

527

223786

CLAMP BREATHER TUBE

528

231527

TUBE, BREATHER

529

67838

GROMMET, BREATHER TUBE

536

494279

AIR CLEANER KIT

541

22398

WASHER, SPEED ADJUSTER LEVEL

542

94269

SCREW, AIR CLEANER

608

491046

STARTER ASSEMBLY, REWIND

611

391813

FUEL PIPE AND CLIP ASSEMBLY

8933 (1999 & Before)



Page 6 of 26

ENGINE













Ref # Part Number

Qty Description

621

396847

SWITCH, STOP



634

271853

WASHER, THROTTLE SHAFT, FOAM

635

66538

ELBOW, SPARK PLUG

679

270382

WASHER, FOAM

680

221839

WASHER, BRASS

741

261533

GEAR, TIMING

779

262276

LINK, CONTROL

851

221798

TERMINAL, IGNITION CABLE

864

492232

ADAPTER ASSEMBLY, MUFFLER

869

211172

SEAT, INTAKE VALVE, STANDARD

870

211291

SEAT, EXHAUST VALVE, STANDARD

871

262001

GUIDE, EXHAUST VALVE



63709

GUIDE, INTAKE VALVE

883

272203

GASKET, MUFFLER

966

492797

BASE, AIR CLEANER

967

491588

SUB= 3364

968

223765

COVER, AIR CLEANER

969

490073

SCREW, COVER MOUNTING

971

94018

SCREW, AIR CLEANER

987

398970

SEAL, THROTTLE SHAFT

995

223887

BRACKET, CONTROL LINK

1016

490817

SPACER

8933 (1999 & Before)

Page 7 of 26

ENGINE



8933 (1999 & Before)



Page 8 of 26

ENGINE













Ref # Part Number

Qty Description

1

494549

CYLINDER ASSEMBLY



2

293708

BUSHING, CYLINDER

3

299819

SEAL, OIL

5

213942

HEAD, CYLINDER

7

272536

GASKET, CYLINDER HEAD

8

294178

BREATHER, VALVE CHAMBER

9

27549

GASKET, VALVE COVER

10

93394

SCREW, SEMS, BREATHER, MOUNTING

11

66578

GROMMET, BREATHER TUBE

12

270833

GASKET, CRANKCASE, STANDARD .015"



270895

GASKET, CRANKCASE .005"



270896

GASKET, CRANKCASE .009"

13

93111

SCREW, CYLINDER HEAD

15

94387

PLUG OIL DRAIN



93448

PLUG, PIPE, HEX SOCKET

16

492880

CRANKSHAFT



230978

CRANKSHAFT GEAR PIN

18

394820

BUSHING, CRANKCASE COVER

19

293708

BUSHING, CYLINDER

20

299819

SEAL, OIL

21

66768

PLUG, OIL FILLER

22

94607

SCREW, SEM, MOUNTING

23

296884

KEY, FLYWHEEL

24

222698

KEY, FLYWHEEL

25

298904

PISTON ASSEMBLY, STANDARD



298905

PISTON ASSEMBLY .010" OVERSIZE



298906

PISTON ASSEMBLY .020" OVERSIZE



298907

PISTON ASSEMBLY .030" OVERSIZE

26

298982

RING SET, PISTON, STANDARD



298983

RING SET, PISTON .010" OVERSIZE



298984

RING SET, PISTON .020" OVERSIZE



298985

RING SET, PISTON .030" OVERSIZE

27

26026

LOCK, PISTON PIN

28

298909

PIN ASSY, PISTON, STD



298908

PIN ASSEMBLY, PISTON .005" OVERSIZE

29

294367

ROD ASSEMBLY, CONNECTING



296079

ROD ASSEMBLY, CONNECTING .020" UNDERSIZE





CRANKPIN

30

220670

DIPPER, CONNECTING ROD

32

94404

SCREW, CONNECTING ROD

33

296676

VALVE, EXHAUST

34

296677

VALVE, INTAKE

35

260552

SPRING, INTAKE VALVE

37

224557

GUARD, FLYWHEEL

40

93312

RETAINER, VALVE SPRING

45

230173

TAPPET, VALVE

46

493747

GEAR, CAM

52

271936

GASKET, INTAKE ELBOW MOUNTING

53

94523

SCREW, EXHAUST

56

280439

PULLEY, STARTER

57

490179

SPRING, REWIND STARTER

58

280406

ROPE, REWIND STARTER

60

393152

HANDLE, REWIND STARTER

66

399671

CLUTCH ASSEMBLY, REWIND STARTER

67

394897

HOUSING, STARTER CLUTCH

68

63770

BALL, CLUTCH

70

298799

RATCHET, REWIND STARTER

8933 (1999 & Before)



Page 9 of 26

ENGINE















Ref #

Part Number

Qty Description

71

394506

WASHER, CLUTCH RETAINER



73

221661

SCREEN, REWIND STARTER

74

93758

SCREW, SEMS

75

223047

WASHER, SPRING

90

492645

CARBURETOR ASSEMBLY

95

93499

SCREW

96

223793

THROTTLE, CARBURETOR

97

490371

SHAFT AND LEVER, THROTTLE

108

490495

VALVE GROUP, CHOKE

118

231533

VALVE, NEEDLE

124

94616

SCREW, ELBOW MOUNTING

127

220352

PLUG, WELCH

127A

223789

PLUG, WELCH

149

26336

SPRING, NEEDLE VALVE

152

260575

SPRING, THROTTLE ADJUSTMENT

153

490501

SCREW, CARBURETOR CAM AND LEVER

154

93527

SCREW, MACHINE, ROUND HEAD

156

492905

LEVER, SPEED ADJUSTER, FIXED SPEED

163

271935

GASKET, AIR CLEANER MOUNTING

180

495377

TANK ASSEMBLY, FUEL

181

494559

CAP, FUEL TANK

190

94712

SCREW, FUEL TANK

191

272489

GASKET, FUEL TANK TO CARBURETOR

200

495213

BLADE, GOVERNOR

201

262325

LINK, AIR VANE GOVERNOR

209

262317

SPRING, AIR VANE GOVERNOR

216

262359

LINK, CHOKE

222

490649

PANEL, CONTROL

298

220859

LOCKNUT, MUFFLER

299

493288

MUFFLER, EXHAUST

676

393756

DEFLECTOR, MUFFLER

305A

93777

SCREW, HEX HEAD BACK PLATE TO CYLINDER

306

224555

SHIELD, CYLINDER

307

93758

SCREW, SEMS

308

224556

COVER, CYLINDER HEAD

333

398593

ARMATURE, MAGNETO

334

93381

SCREW, SEM, ARMATURE MOUNTING

337

802592

PLUG, SPARK

346

93705

SUB= 69485

356

398808

WIRE, GROUND

358

494550

GASKET SET

363

19069

PULLEY, FLYWHEEL

383

262328

SPRING, FUEL PUMP DIAPHRAGM

392

262328

SPRING, FUEL PUMP DIAPHRAGM

394

270026

DIAPHRAGM

432

221377

CAP, SPRING

433

93265

PIN, DIAPHRAGM COVER

434

210959

COVER, DIAPHRAGM

467

280715

KNOB, CONTROL

526

94408

SCREW SEMS TANK BRKT MOUNT

527

223786

CLAMP BREATHER TUBE

528

231527

TUBE, BREATHER

529

67838

GROMMET, BREATHER TUBE

536

494279

AIR CLEANER KIT

541

22398

WASHER, SPEED ADJUSTER LEVEL

542

94269

SCREW, AIR CLEANER

608

491046

STARTER ASSEMBLY, REWIND

611

391813

FUEL PIPE AND CLIP ASSEMBLY

8933 (1999 & Before)



Page 10 of 26

ENGINE













Ref # Part Number

Qty Description

621

396847

SWITCH, STOP



634

271853

WASHER, THROTTLE SHAFT, FOAM

635

66538

ELBOW, SPARK PLUG

679

270382

WASHER, FOAM

680

221839

WASHER, BRASS

741

261533

GEAR, TIMING

779

262276

LINK, CONTROL

851

221798

TERMINAL, IGNITION CABLE

864

492232

ADAPTER ASSEMBLY, MUFFLER

869

211172

SEAT, INTAKE VALVE, STANDARD

870

211291

SEAT, EXHAUST VALVE, STANDARD

871

262001

GUIDE, EXHAUST VALVE



63709

GUIDE, INTAKE VALVE

883

272203

GASKET, MUFFLER

966

492797

BASE, AIR CLEANER

967

491588

SUB= 3364

968

223765

COVER, AIR CLEANER

969

490073

SCREW, COVER MOUNTING

971

94018

SCREW, AIR CLEANER

987

398970

SEAL, THROTTLE SHAFT

995

223887

BRACKET, CONTROL LINK

1016

490817

SPACER
