AYP 8905 Parts List

Size:
134.51 Kb
Download

8905 (1999 & Before)

Page 1 of 19

22" REAR BAGGER



8905 (1999 & Before)



Page 2 of 19

22" REAR BAGGER













Ref # Part Number

Qty Description

1

86334X473

SUB= 86334X479



2

86337X473

SUB= 86337X479

3

48068

SUB= 48374

4

36953

SCREW SELF TAP

5

86353

CONNECTOR PM

6

111549X

CHARGER PM

7

86649

"PAD PM, BATTERY"

8905 (1999 & Before)

Page 3 of 19

22" REAR BAGGER



8905 (1999 & Before)



Page 4 of 19

22" REAR BAGGER













Ref # Part Number

Qty Description

1

850724

SUB= 155890



2

851953

SUB= 131081

3

85950X479

UPPER HNDL

4

63601

SUB= 73800400

5

851552

"SCREW,PAN HD"

6

851464

CONTROL.THROTTLE

7

85723

WASHER PM

8

851185

SUB= 128889

9

63688

SUB= 136376

10

83816

SCREW PM

11

213146

CABLE CLAMP

12

129898

SUB= 146358

13

750097

TAPPING SCREW

14

87930

GUIDE CLIP PM

15

66426

SUB= 7192J

16

851738

HINGE ROD

17

107339X

DECAL HYT

18

93705

SUB= 69485

19

396548

MUFFLER DEFLECTOR

20

84596

ENGINE.PULLEY.FWG

21

87677

HI PRO KEY PM

22

59708

SCREW

23

83972X004

BACKING STRIP

24

130444

"SKIRT,REAR"

25

850247X479

"BAFFLE,SIDE"

26

851186X473

SUB= 851186X479

27

128415

BLIND RIVET

28

54583

SCREW

29

55505

SCREW

30

800357

SUB= 132001

31

85827

CABLE CLIP PM

32

851710X479

SUB= 151721X479

33

58714

SUB= 131959

34

51793

HAIRPIN COTTER

35

77400

HUB CAP

36

85179

RETAINER CLIP PM

37

52160

WASHER

38

851071

SUB= 148446

39

84921

SUB= 142748

40

62335

"WASHER, BELLEVIL."

41

85021X004

AXLE ARM

42

850855X004

SUB= 700331X004

43

87877

KNOB PM

44

88348

WASHER PM

45

84920

SUB= 146630

46

850904

SUB= 750085X007

47

55187

SCREW

48

63124

SUB= 73690500

49

54583

SCREW

50

851768X473

SUB= 851768X479

51

851769X473

SUB= 851769X479

52

751592

LOCKNUT PM

53

66238

SUB= 72140505

54

851201X004

WASHER

55

850998

SCREW

56

851000

BELT SNUBBER

57

77508X479

SUB= 144964

58

75449

SPEED NUT

8905 (1999 & Before)



Page 5 of 19

22" REAR BAGGER













Ref # Part Number

Qty Description

59

851084

SCREW



60

850263

LOCKWASHER

61

851074

"WASHER,HARDEN"

62

850973

"BLADE.22"""

63

851514

ADAPTOR.BLADE.LM

64

130903

"KIT,HOUSING"

65



REFER TO IMAGE



129925

"SEAL,REAR DOOR"



128137

DECAL.HOUSING



851101

DECAL ELEC START ENGINE

8905 (1999 & Before)

Page 6 of 19

22" REAR BAGGER



8905 (1999 & Before)



Page 7 of 19

22" REAR BAGGER













Ref # Part Number

Qty Description

1

801633

CABLE



2

128378

SUB= 133053

3

86261

SUB= 74250434

4

54338

SUB= 74760444

5

77400

HUB CAP

6

85179

RETAINER CLIP PM

7

52160

WASHER

8

850986

WHL & TIRE ASS'Y

9

53753

E-RING

10

74507

PINION.10.TEETH

11

76401

DUST COVER

12

87877

KNOB PM

13

851032

SUB= 48175

14

851031

SUB= 48174

15

61528

SUB= 74100412

16

63601

SUB= 73800400

17

65692

WOODRUFF KEY

18

83632

SUB= 137090

19

68038

SUB= 73850400

20

75192

SPRING

21

57076

WOODRUFF KEY

22

751001

SUB= 48281

23

83681

PULLEY.DRIVE.LM

24

74976

RETAINER RING

25

750108

SCREW WASHER HD

26

83700

CABLE CLAMP

27

83700

CABLE CLAMP

28

75725

SCREW

29

69411

SCREW

30

851735

"FRAME,CATCHER"

31

127916

GRASSBAG

32

127916

GRASSBAG

33



REFER TO IMAGE

34

851739

"TOP,CATCHER"

35

851658

"TUBE,CATCHER"

36

36953

SCREW SELF TAP

37

750634

SCREW

38

86281

MACHINE SCREW



128662

DECAL, DRIVE COVER

8905 (1999 & Before)

Page 8 of 19

22" REAR BAGGER



8905 (1999 & Before)



Page 9 of 19

22" REAR BAGGER

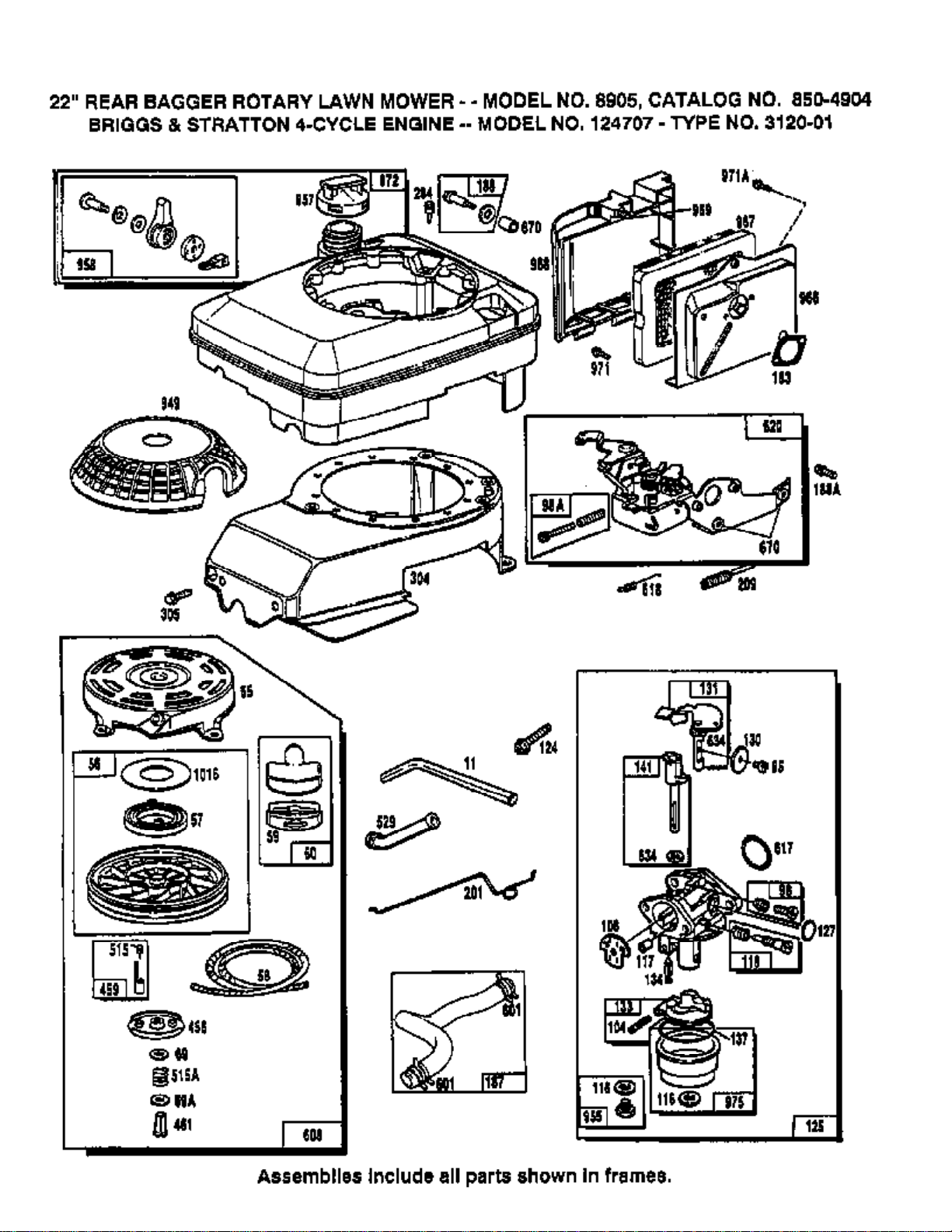

Ref #

Part Number

Qty Description

1

493260

CYLINDER ASSY



2

293708

BUSHING, CYLINDER

3

393862

SEAL,OIL

5

213610

HEAD CYLINDER

7

272200

GASKET CYLINDER HEAD

8

399717

BREATHER VALVE CHAMBER

9

271904

GASKET, VALVE COVER

9A

272238

GASKET, BAFFLE PLATE

10

94222

SCREW, SEMS, BREATHER MOUNTING

11

231685

TUBE, BREATHER

12

272198

GASKET, CRANKCASE

13

84547

SCREW, CYLINDER HEAD

15

93418

PLUG, OIL DRAIN

16

493362

CRANKSHAFT



94388

TIMING GEAR KEY

18

493279

SUMP, ENGINE

20

399781

SEAL, OIL

22

94220

SCREW, HEX HEAD



94612

SCREW, HEX HEAD

23

492177

FLYWHEEL

24

222698

KEY, FLYWHEEL

25

493262

PISTON ASSY STANDARD SIZE



493385

PISTON ASSY



493386

PISTON ASSY



493387

PISTON ASSY

26

493261

RING SET, PISTON, STANDARD SIZE



493388

RING SET, PISTON, .010" OVERSIZE



493389

RING SET, PISTON, .020" OVERSIZE



493390

RING SET, PISTON, .030" OVERSIZE

27

26026

LOCK, PISTON PIN

28

298909

PIN ASSY, PISTON, STD



298908

PIN ASSEMBLY, PISTON .005" OVERSIZE

29

490566

ROD, CONNECTING



490743

ROD, CONNECTING, .020" UNDERSIZE

32

94405

SCREW CONNECTING ROD

33

262651

VALVE, EXHAUST

34

262652

VALVE, INTAKE

35

262224

SPRING, VALVE

40

93312

RETAINER, VALVE SPRING

45

262204

TAPPET, VALVE

46

492830

GEAR, CAM

47

493737

SLINGER, OIL

52

272199

GASKET, INTAKE ELBOW

54

94526

SCREW, HEX HEAD

55

492831

HOUSING REWIND STARTER

56

492832

PULLEY REWING STARTER

57

262594

SPRING, REWIND STARTER

58

280399

ROPE, REWIND STARTER (CUT TO 88-5/8)

59

396892

INSERT, HANDLE

60

393152

HANDLE, REWIND STARTER

69

280973

WASHER

69A

224322

WASHER

81

223664

LOCK, MUFFLER SCREW

95

94098

SCREW, THROTTLE

98

398185

SCREW IDLE ADJ

98A

493280

SCREW ASSY SPEED ADJ

104

231371

PIN, FLOAT HINGE

108

223471

VALVE CHOKE

8905 (1999 & Before)



Page 10 of 19

22" REAR BAGGER

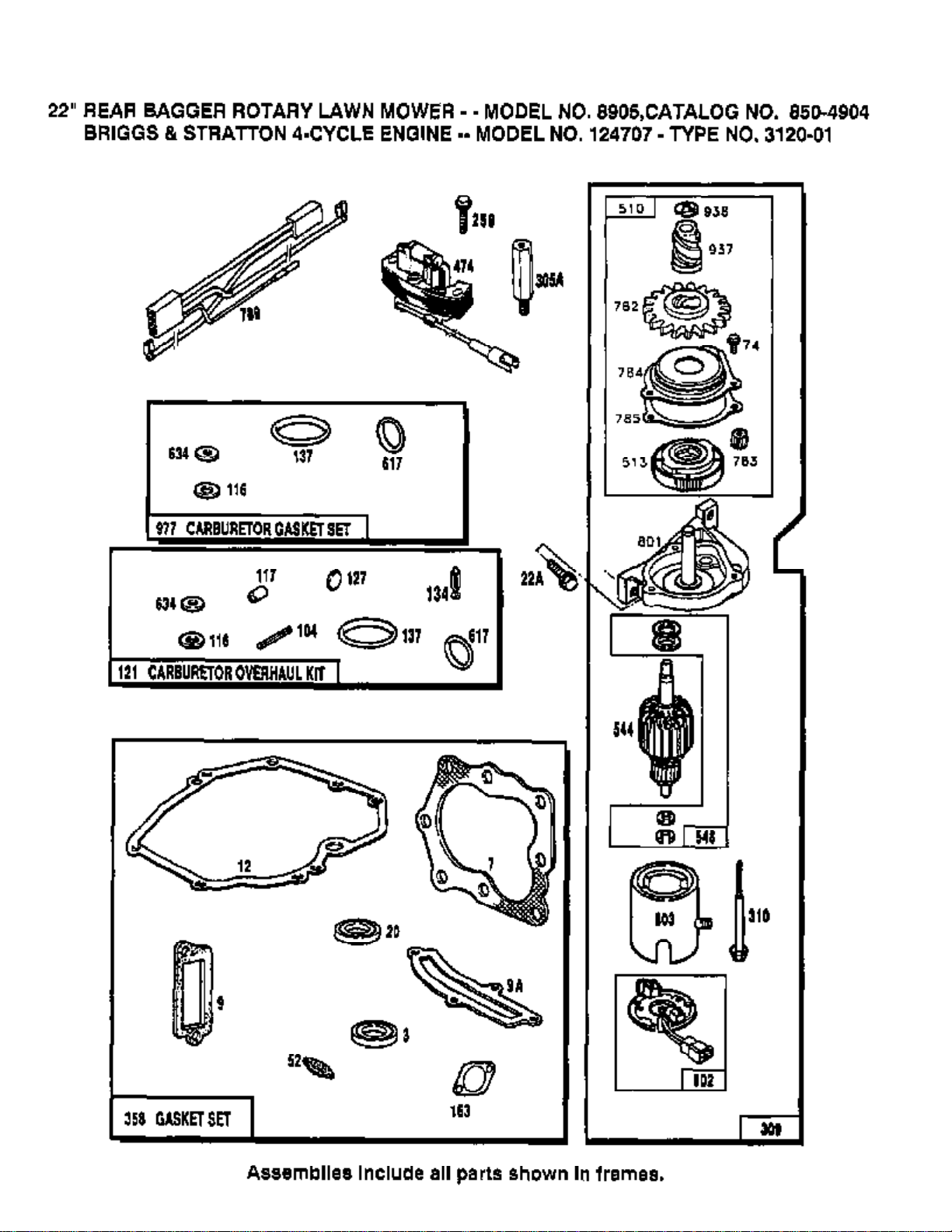

Ref #

Part Number

Qty Description

116



REFER TO IMAGE



117



REFER TO IMAGE

118

493765

VALVE AND SPRING NEEDLE

121

493762

CARB OVERHAUL KIT

124

94525

SCREW, CARBURETOR MOUNTING

125

494217

CARB ASSY

127



REFER TO IMAGE

130

223470

VALVE THROTTLE

131

493267

SHAFT, THROTTLE

133

398187

FLOAT, CARBURETOR

134

398188

VALVE, INLET

137



REFER TO IMAGE

141

494218

SHAFT CHOKE

163

272257

GASKET, AIR CLEANER

187

492790

HOSE, FUEL

188

398540

SCREW, HEX HEAD

188A

94644

SCREW, HEX HEAD

201

262579

LINK, GOVERNOR

209

262660

SPRING, GOVERNOR

227

492349

LEVER, GOVERNOR

230

67072

WASHER, THRUST

258

94512

SCREW, HEX HEAD

284

94511

SCREW, HEX HEAD

300

490547

MUFFLER EXHAUST

304

493293

HOUSING, BLOWER

305

94513

SCREW, SEMS, AIR CLEANER

306

224324

SHIELD, CYLINDER

307

94515

SCREW HEX HD

324

224251

SCREEN ROTATING

332

92284

NUT, FLYWHEEL

333

802574

ARMATURE, MAGNETO

334

93381

SCREW, SEM, ARMATURE MOUNTING

337

492167

PLUG SPARK

356

398808

WIRE, GROUND

358

493263

GASKET SET

363

19069

PULLEY, FLYWHEEL

383

89838

WRENCH SPARK PLUG

455

224250

CUP, STARTER

456

224321

RETAINER, REWIND STARTER

459

492833

PAWL, STARTER

461

262626

PIN, STARTER

515

262556

SPRING PAWL

515A

262625

SPRING, TORSION

523

493950

CAP WITH DIPSTICK

524

280393

SEAL, FILLER TUBE

525

493952

TUBE OIL FILLER

529

280943

GROMMET BREATHER

562

92613

BOLT, GOVERNOR LEVER

572

224328

BAFFLE, CYLINDER

592

231082

NUT, HEX

601

93053

CLAMP, HOSE, GREEN



93807

CLAMP HOSE

628

493295

STARTER ASSY REWIND

613

94231

SCREW, HEX HEAD

615

94474

FASTENER

616

262578

CRANK, GOVERNOR

617

270344

SEAL, FUEL INTAKE TUBE

618

262749

SPRING CHOKE REWIND
