AYP 3A Parts List

Size:
17.76 Kb
Download

3A (1999 & Before)

Page 1 of 2

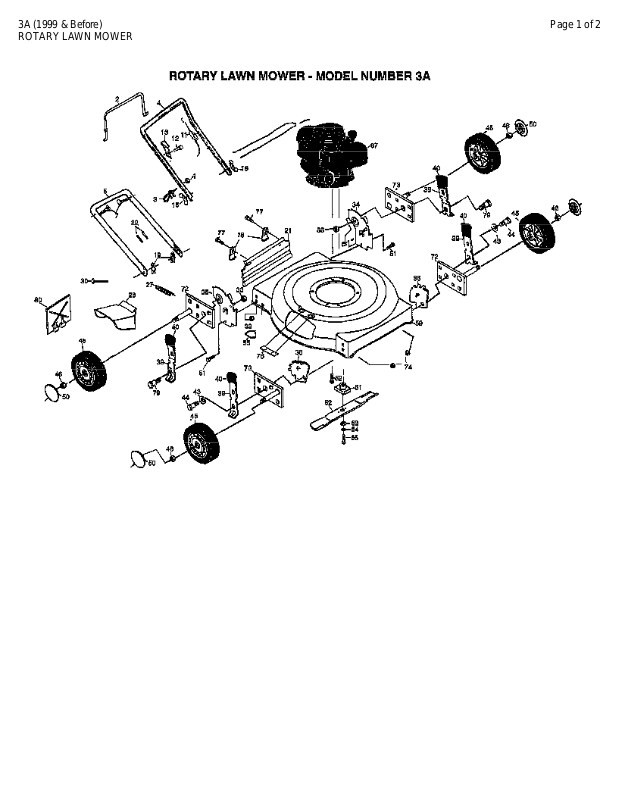

ROTARY LAWN MOWER



3A (1999 & Before)



Page 2 of 2

ROTARY LAWN MOWER











Ref # Part Number

Qty Description

1

63601

SUB= 73800400



2

86902

CONTROL BAR PM

3

132001

ROPE GUIDE

4

160834X479

UPPER HANDLE

5

160609X479

LOWER HANDLE

7

131959

BOLT.HANDLE.LM

11

153892

"CONTROL-ZONE,ENG"

12

750097

TAPPING SCREW

13

86899X004

"BRKT,UPSTOP PM"

16



CHECK WITH SUPPLIER

19

51793

HAIRPIN COTTER

21

140540

SKIRT.REAR.FGD.22

22

66426

SUB= 7192J

23

160831

GUARD.DISCHARGE

27

160832

HINGE.SPRING

30

160833

HINGE.ROD.22SD

33

751153

LOCKNUT

34

161268X479

WHL BRKT SUPT LEFT

35

161269X479

WHL BRKT SUPT RIGHT

36

160835X007

WHEEL.BRKT.ADJ.

39

160826X004

SLECTOR SPRING

40

87877

KNOB PM

43

19112222

WASHER.BELLEVELLE

44

160828

SHOULDER BOLT

45

750123

SUB= 148438

46

83923

HEX FLANGE LOCKNT

50

77400

HUB CAP

51

17600406

SCREW 1/4X20

52

150406

BOLT.ENG.3/8-16

55

107339X

DECAL HYT

59

161469

LAWNMOWER HOUSING KIT

61

851514

ADAPTOR.BLADE.LM

62

141114

"BLADE.MULCH.22"""

63

851074

"WASHER,HARDEN"

64

850263

LOCKWASHER

65

851084

SCREW

67



CHECK WITH SUPPLIER

72

161114X004

ARM.ASM.AXLE.RR/LF

73

161113X004

SUB= 167133X004

74

751153

LOCKNUT

76

161622

CLIP.CLOSECUT.22SD

77

750097

TAPPING SCREW

78

87584X001

SHOULDER BOLT

79

160829

SHOULDER BOLT

80

160830

MULCHER PLATE



161116

MANUAL.GEN.PUSH



163686

MANUAL.OPER.FRENCH



164112

MANUAL.P.3A



GCK3300

GRASS CATCHER KIT
