AYP 3332A99 Parts List

Size:
182.32 Kb
Download

3332A99 (1999)

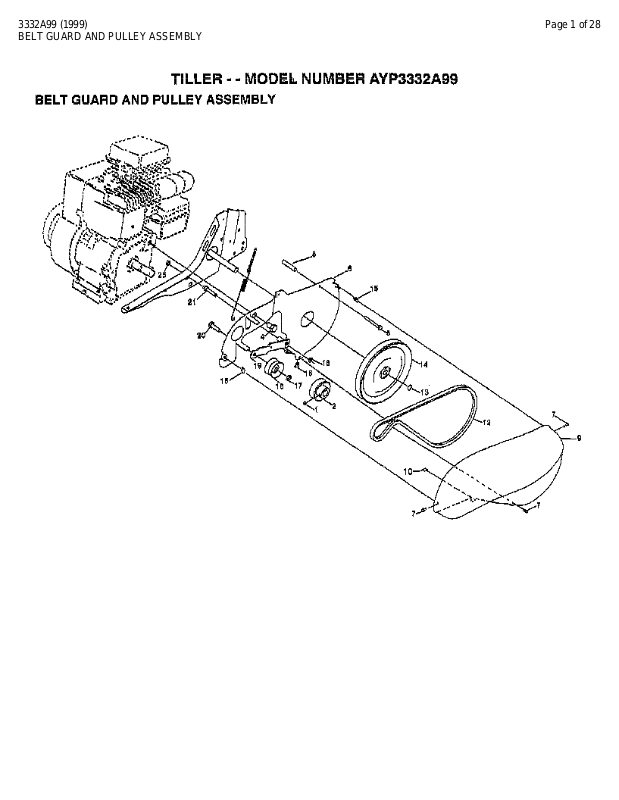

Page 1 of 28

BELT GUARD AND PULLEY ASSEMBLY



3332A99 (1999)



Page 2 of 28

BELT GUARD AND PULLEY ASSEMBLY











Ref # Part Number

Qty Description

1

23230506

SET SCREW



2

130812

ENGINE PULLEY

4

74610812

BOLT.HEX.HEAD

5

17490440

BOLT.ROLLER.1/4-20X21/2

6

165770

SHEILD.INNER.GUARD

7

165503

SCREW HX WSH.HD#8-18X1/2

8

139155

SPACER.SPLIT

9

165768X505

GUARD.PNT.BELT

10

109227X

PAD IDLER TI

12

9180R

V BELT STD

13

12000028

SUB= 2267J

14

151223

SHEAVE.TRANS

15

165504

NUT J CLIP #8

16

12000036

KLIP RING TI

17

73350600

NUT

18

161806

"PULLEY,IDLER"

19

162290

"ARM, IDLER"

20

74760620

SUB= 74780620

21

106968X

SHAFT IDLER TI

25

73350500

JAM NUT TI

3332A99 (1999)

Page 3 of 28

DECALS



3332A99 (1999)



Page 4 of 28

DECALS













Ref # Part Number

Qty Description

1

157695

DECAL PANEL CONT



2

166629

DECAL, LOGO

3

127521

NLA

4

110594X

DECAL TI

5

120431X

DECAL TI

6

162215

DECAL.TINE.SHIELD

7

120075X

DECAL TI

8

165277

DECAL

9

165327

DECAL.SPEED.CONTROL

10

165269

SUB= 273199



167522

MANUAL, OWNER'S (ENGLISH)

3332A99 (1999)

Page 5 of 28

ENGINE



3332A99 (1999)



Page 6 of 28

ENGINE















Ref #

Part Number

Qty Description

1

494549

CYLINDER ASSEMBLY



2

293708

BUSHING, CYLINDER

3

299819

SEAL, OIL

5

214277

HEAD, CYLINDER

7

272694

GASKET, CYLINDER HEAD

8

495774

BREATHER ASSEMBLY

9

27549

GASKET, VALVE COVER

10

94621

SCREW, STEMS

11

66578

GROMMET, BREATHER TUBE

12

270833

GASKET, CRANKCASE, STANDARD .015"

12

270895

GASKET, CRANKCASE .005"

12

270896

GASKET, CRANKCASE .009"

13

94960

SCREW

15

94387

PLUG OIL DRAIN

16

495211

CRANKSHAFT

16

499047

KEY, TIMING GEAR RETAINING

18

394820

BUSHING, CRANKCASE COVER

19

293708

BUSHING, CYLINDER

20

299819

SEAL, OIL

21

281658

PLUG-OILFILLER

22

94607

SCREW, SEM, MOUNTING

22A

94862

SCREW

23

496278

FLYWHEEL

24

222698

KEY, FLYWHEEL

25

498668

PISTON ASSEMBLY, STANDARD

25

498669

PISTON ASSEMBLY, .010" OVERSIZE

25

498670

PISTON ASSEMBLY, .020" OVERSIZE

25

498671

PISTON ASSEMBLY, .030" OVERSIZE

26

498680

RING SET, STANDARD SIZE

26

498681

RING SET, .010" OVERSIZE

26

498682

RING SET, .020" OVERSIZE

26

498683

RING SET, .030" OVERSIZE

27

26026

LOCK, PISTON PIN

28

298909

PIN ASSY, PISTON, STD

28

298908

PIN ASSEMBLY, PISTON .005" OVERSIZE

29

294367

ROD ASSEMBLY, CONNECTING

29

296079

ROD ASSEMBLY, CONNECTING .020" UNDERSIZE





CRANKPIN

30

220670

DIPPER, CONNECTING ROD

32

94699

SCREW

33

296676

VALVE, EXHAUST

34

296677

VALVE, INTAKE

35

260552

SPRING, INTAKE VALVE

37

224557

GUARD, FLYWHEEL

38

94736

SCREW

40

93312

RETAINER, VALVE SPRING

45

230173

TAPPET, VALVE

46

493747

GEAR, CAM

51

273113

GASKET, CARBURETOR MOUNTING

53

94523

SCREW, EXHAUST

55

499441

HOUSING, REWIND STARTER

58

281464

ROPE, STARTER

60

393152

HANDLE, REWIND STARTER

65

94904

SCREW, SEMS

73

225381

SCREEN, ROTATING

90

499491

CARBURETOR ASSEMBLY

95

93499

SCREW

3332A99 (1999)



Page 7 of 28

ENGINE















Ref #

Part Number

Qty Description

96

223793

THROTTLE, CARBURETOR



97

495313

SHAFT & LEVER, THROTTLE

109

497230

VALVE & SHAFT GROUP, CHOKE

121

495606

CARBURETOR OVERHAUL KIT

124

94616

SCREW, ELBOW MOUNTING

127

220352

PLUG, WELCH

127A

223789

PLUG, WELCH

144

499901

PULLEY, STARTER

152

260575

SPRING, THROTTLE ADJUSTMENT

153

490501

SCREW, CARBURETOR CAM AND LEVER

154

93527

SCREW, MACHINE, ROUND HEAD

161

492797

BASE, AIR CLEANER

163

271935

GASKET, AIR CLEANER MOUNTING

180

495377

TANK ASSEMBLY, FUEL

181

494559

CAP, FUEL TANK

190

94919

SCREW, TORX

190A

94924

SCREW, TORX

191

272489

GASKET, FUEL TANK TO CARBURETOR

200

495213

BLADE, GOVERNOR

201

263174

LINK, GOVERNOR

202

262470

LINK, CONTROL

209

260041

SPRING, GOVERNOR

211

263030

SPRING

216

263188

LINK, CHOKE

222

499533

BRACKET, CONTROL

257

93543

SCREW, SEMS, HEX HEAD

298

220859

LOCKNUT, MUFFLER

300

493288

MUFFLER, EXHAUST

304

499522

HOUSING, BLOWER

305

94786

SCREW

306

224555

SHIELD, CYLINDER

307

93758

SCREW, SEMS

308

224556

COVER, CYLINDER HEAD

332

94877

NUT, FLYWHEEL

333

496914

ARMATURE, MAGNETO

334

94731

SCREW, SEMS

337

802592

PLUG, SPARK

356

497298

WIRE, GROUND

358

495605

GASKET SET

363

19203

PULLER, FLYWHEEL

373

94908

NUT, HEX

383

89838

WRENCH SPARK PLUG

392

262328

SPRING, FUEL PUMP DIAPHRAGM

393

225058

SCREEN-CARBURETOR

394

272538

DIAPHRAGM

432

221377

CAP, SPRING

433

93265

PIN, DIAPHRAGM COVER

434

213963

COVER, DIAPHRAGM

435

93141

SCREW, DIAPHRAGM

455

225502

CUP, FLYWHEEL

456

281503

RETAINER, STARTER

459

281505

PAWL, RATCHET

526

94914

SCREW, SEMS, TANK BRACKET MOUNT

527

223786

CLAMP BREATHER TUBE

528

491435

FILTER, AIR

529

67838

GROMMET, BREATHER TUBE

535

491435

FILTER, AIR

536

494279

AIR CLEANER KIT

3332A99 (1999)



Page 8 of 28

ENGINE















Ref #

Part Number

Qty Description

542

94897

SCREW



608

499706

STARTER, REWIND

609

265715

SPRING, CHOKE

611

231067

LINE, FUEL

612

391813

FUEL PIPE AND CLIP ASSEMBLY

621

296110

SWITCH, STOP

621A

396847

SWITCH, STOP

623

94943

P/N CONFLICT - CHECK WITH SUPPLIER

634

271853

WASHER, THROTTLE SHAFT, FOAM

635

66538

ELBOW, SPARK PLUG

643

280737

SPACER, AIR CLEANER

679

270382

WASHER, FOAM

680

221839

WASHER, BRASS

689

260575

SPRING, THROTTLE ADJUSTMENT

741

261533

GEAR, TIMING

748

99669

GASKET SET, VALVE OVERHAUL

780

225029

ANCHOR, SPRING

851

493880

TERMINAL, IGNITION CABLE

864

492232

ADAPTER ASSEMBLY, MUFFLER

869

211172

SEAT, INTAKE VALVE, STANDARD

870

211291

SEAT, EXHAUST VALVE, STANDARD

871

231348

GUIDE, EXHAUST VALVE

871

63709

GUIDE, INTAKE VALVE

883

272203

GASKET, MUFFLER

955

281227

PLUG

967

491588

SUB= 3364

968

495872

COVER, AIR CLEANER

969

490073

SCREW, COVER MOUNTING

971

94902

SCREW, HEX HEAD

987

398970

SEAL, THROTTLE SHAFT

995

497195

CONTROL, THROTTLE

1036

499329

LABEL KIT, EMISSION

1095

99669

GASKET SET, VALVE OVERHAUL

2500

94202-0115

ENGINE



495914

SHORTBLOCK



494550

GASKET SET



292638

VALVE OVERHAUL GASKET SET

3332A99 (1999)

Page 9 of 28

ENGINE



3332A99 (1999)



Page 10 of 28

ENGINE















Ref #

Part Number

Qty Description

1

494549

CYLINDER ASSEMBLY



2

293708

BUSHING, CYLINDER

3

299819

SEAL, OIL

5

214277

HEAD, CYLINDER

7

272694

GASKET, CYLINDER HEAD

8

495774

BREATHER ASSEMBLY

9

27549

GASKET, VALVE COVER

10

94621

SCREW, STEMS

11

66578

GROMMET, BREATHER TUBE

12

270833

GASKET, CRANKCASE, STANDARD .015"

12

270895

GASKET, CRANKCASE .005"

12

270896

GASKET, CRANKCASE .009"

13

94960

SCREW

15

94387

PLUG OIL DRAIN

16

495211

CRANKSHAFT

16

499047

KEY, TIMING GEAR RETAINING

18

394820

BUSHING, CRANKCASE COVER

19

293708

BUSHING, CYLINDER

20

299819

SEAL, OIL

21

281658

PLUG-OILFILLER

22

94607

SCREW, SEM, MOUNTING

22A

94862

SCREW

23

496278

FLYWHEEL

24

222698

KEY, FLYWHEEL

25

498668

PISTON ASSEMBLY, STANDARD

25

498669

PISTON ASSEMBLY, .010" OVERSIZE

25

498670

PISTON ASSEMBLY, .020" OVERSIZE

25

498671

PISTON ASSEMBLY, .030" OVERSIZE

26

498680

RING SET, STANDARD SIZE

26

498681

RING SET, .010" OVERSIZE

26

498682

RING SET, .020" OVERSIZE

26

498683

RING SET, .030" OVERSIZE

27

26026

LOCK, PISTON PIN

28

298909

PIN ASSY, PISTON, STD

28

298908

PIN ASSEMBLY, PISTON .005" OVERSIZE

29

294367

ROD ASSEMBLY, CONNECTING

29

296079

ROD ASSEMBLY, CONNECTING .020" UNDERSIZE





CRANKPIN

30

220670

DIPPER, CONNECTING ROD

32

94699

SCREW

33

296676

VALVE, EXHAUST

34

296677

VALVE, INTAKE

35

260552

SPRING, INTAKE VALVE

37

224557

GUARD, FLYWHEEL

38

94736

SCREW

40

93312

RETAINER, VALVE SPRING

45

230173

TAPPET, VALVE

46

493747

GEAR, CAM

51

273113

GASKET, CARBURETOR MOUNTING

53

94523

SCREW, EXHAUST

55

499441

HOUSING, REWIND STARTER

58

281464

ROPE, STARTER

60

393152

HANDLE, REWIND STARTER

65

94904

SCREW, SEMS

73

225381

SCREEN, ROTATING

90

499491

CARBURETOR ASSEMBLY

95

93499

SCREW
