AYP 2A151A Parts List

Size:
19.91 Kb
Download

2A151A (1999 & Before)

Page 1 of 2

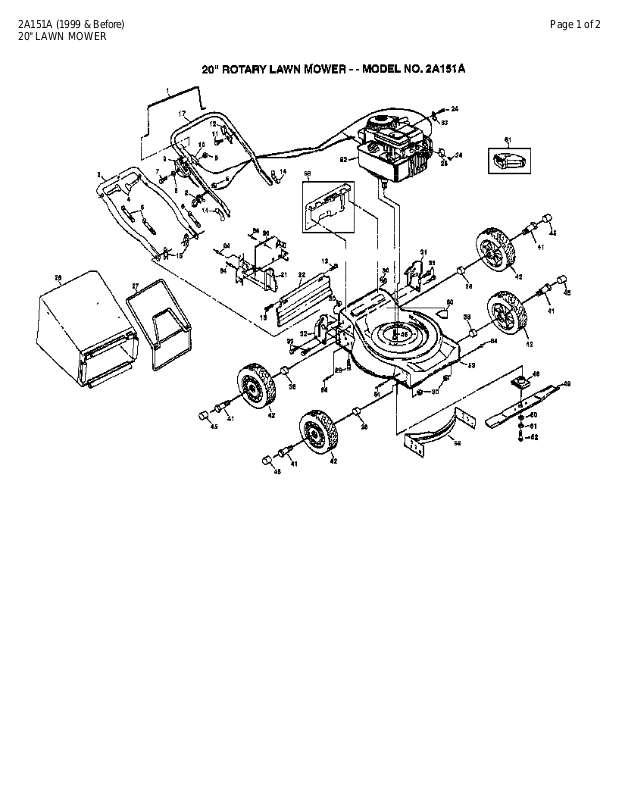

20" LAWN MOWER



2A151A (1999 & Before)

Page 2 of 2

20" LAWN MOWER













Ref # Part Number

Qty Description

1

86902

CONTROL BAR PM



2

132001

ROPE GUIDE

3

84676X479

SUB= 151516X479

4

131959

BOLT.HANDLE.LM

5

63601

SUB= 73800400

6

66426

SUB= 7192J

7

85692

SUB= 74250434

8

85723

WASHER PM

9

851462

CONTROL THROTTLE

10

130861

"CABLE,ENG ZONE CO"

11

750097

TAPPING SCREW

12

850733X004

"BRKT,UPSTOP"

13

88652

HINGE SCREW

14

128638

"NUT,WING PM"

15

51793

HAIRPIN COTTER

17

132649X479

SUB= 160223X479

20

700356X479

PLATE.BACK.20RD

21

700363X479

BAFFLE.SIDE

22

136233

SUB= 140541

24

83816

SCREW PM

25

213146

CABLE CLAMP

27

750532

FRAME.CATCHER.ASM

28

133266

GRASS BAG

29

54583

SCREW

30

751592

LOCKNUT PM

31

700913X505

SUB= 150956

32

700915X505

SUB= 150956

33

55187

SCREW

36

136624

SUB= 532136624

41

67609

AXLE BOLT

42

800220

WHEEL.ASM

45

800090

HUB CAP-PLASTIC

46

850998

SCREW

48

850977

BLADE ADAPTOR

49

850972

BLADE.STAND.20INC

50

851074

"WASHER,HARDEN"

51

850263

LOCKWASHER

52

851084

SCREW

53

701786

SUB= 701779

56

48257

"KIT, REAR DOOR PM"

58

132198X479

SUB= 144961

60

107339X

DECAL HYT

61



REFER TO IMAGE

62



REFER TO IMAGE

63

850472

"CLIP,CABLE"

64

128415

BLIND RIVET



700714

NLA



701784

MANUAL.P.2A151A



700063X479

REAR BAFFLE
