REAR TINE TILLER

Owner's Manual

Models

90102800 17" REAR TINE TILLER

%.',)3(

427490 Rev. 1 03.18.09





Printed in USA

SAFETY RULES

Safe Operation Practices for Walk-BehindPowered Rotary Tillers

TRAINING

Read the Owner’s Manual carefully. Be thoroughly familiar with the controls and the proper use of the equipment. Know how to stop the unit and disengage the controls quickly.

Never allow children to operate the equipment. Never allow adults to operate the equipment without proper instruction.

Keep the area of operation clear of all persons, particularly small children, and pets.

PREPARATION

Thoroughly inspect the area where the equipment is to be used and remove all foreign objects.

Disengage all clutches and shift into neutral before starting the engine (motor).

Do not operate the equipment without wearing adequate outer garments. Wear footwear that will improve footing on slippery surfaces.

Handle fuel with care; it is highly flammable.

Use an approved fuel container.

Never add fuel to a running engine or hot engine.

Fill fuel tank outdoors with extreme care. Never fill fuel tank indoors.

Replace gasoline cap securely and clean up spilled fuel before restarting.

Use extension cords and receptacles as specified by the manufacturer for all units with electric drive motors or electric starting motors.

Never attempt to make any adjustments while the engine (motor) is running (except where specifically recommended by manufacturer).

OPERATION

Do not put hands or feet near or under rotating parts.

Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards or traffic. Do not carry passengers.

After striking a foreign object, stop the engine (motor), remove the wire from the spark plug, thoroughly inspect the tiller for any damage, and repair the damage before restarting and operating the tiller.

Exercise caution to avoid slipping or falling.

If the unit should start to vibrate abnormally, stop the engine (motor) and check immediately for the cause. Vibration is generally a warning of trouble.

Stop the engine (motor) when leaving the operating position.

Take all possible precautions when leaving the machine unattended. Disengage the tines, shift into neutral, and stop the engine.

Keep children and pets away.

Do not overload the machine capacity by attempting to till too deep at too fast a rate.

Never operate the machine at high speeds on slippery surfaces. Look behind and use care when backing.

Never allow bystanders near the unit.

Use only attachments and accessories approved by the manufacturer of the tiller.

Never operate the tiller without good visibility or light.

Be careful when tilling in hard ground. The tines may catch in the ground and propel the tiller forward. If this occurs, let go of the handlebars and do not restrain the machine.

MAINTENANCE AND STORAGE

Keep machine, attachments, and accessories in safe working condition.

Check shear pins, engine mounting bolts, and other bolts at frequent intervals for proper tightness to ensure the equipment is in safe working condition.

Never store the machine with fuel in the fuel tank inside a building where ignition sources are present, such as hot water and space heaters, clothes dryers, and the like. Allow the engine to cool before storing in any enclosure.

Always refer to the operator’s guide instructions for important details if the tiller is to be stored for an extended period.

- IMPORTANT -

CAUTIONS, IMPORTANTS, AND NOTES ARE A MEANS OF ATTRACTING ATTENTION TO IMPORTANT OR CRITICAL INFORMATION IN THIS MANUAL.

IMPORTANT: USED TO ALERT YOU THAT THERE IS A POSSIBILITY OF DAMAGING THIS EQUIPMENT.

NOTE: Gives essential information that will aid you to better understand, incorporate, or execute a particular set of instructions.

Look for this symbol to point out important safety precautions. It means CAUTION!!! BECOME ALERT!!! YOUR SAFETY IS INVOLVED.

CAUTION: Always disconnect spark plug wire and place wire where it cannot contactsparkpluginordertopreventaccidental starting when setting up, transporting, adjusting or making repairs.

Before cleaning, repairing, or inspecting, shut off the engine and make certain all moving parts have stopped. Disconnect the spark plug wire, and keep the wire away from the plug to prevent accidental starting. Disconnect the cord on electric motors.

Do not run the engine indoors; exhaust fumes are dangerous.

Never operate the tiller without proper guards, plates, or other safety protective devices in place.

WARNING

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

2

PRODUCT SPECIFICATIONS

Gasoline Capacity:

3.6 Quarts (3.4L)



Unleaded Regular





Oil (API-SG-SL):

SAE 10w-30(Above 32°F/0°C)

(Capacity: 20 oz./0.6L)

SAE 5w-30(Below 32°F/0°C)





Spark Plug:

NGK BR-5HS(Champion RL86C)

(Gap: .030"/0.76mm)







CONGRATULATIONS on your purchase of a new tiller. It has been designed, engineered and manufactured to give you the best possible dependability and performance.

Should you experience any problems you cannot easily remedy, please contact your nearest authorized service center. We have competent, well-trainedtechnicians and the proper tools to service or repair this unit.

Please read and retain this manual. The instructions will enable you to assemble and maintain your tiller properly. Always observe the “SAFETY RULES."

CUSTOMER RESPONSIBILITIES

Read and observe the safety rules.

Follow a regular schedule in maintaining, caring for and using your tiller.

Follow instructions under “Maintenance” and “Storage” sections of this Manual.

IMPORTANT: THIS UNIT IS EQUIPPED WITH AN INTERNAL COMBUSTION ENGINE AND SHOULD NOT BE USED ON OR NEAR ANY UNIMPROVEDFOREST-COVERED,BRUSHCOVERED OR GRASS COVERED LAND UNLESS THE ENGINE'S EXHAUST SYSTEM IS EQUIPPED WITH A SPARK ARRESTER MEETING APPLICABLE LOCAL LAWS (IF ANY). IF A SPARK ARRESTER IS USED, IT SHOULD BE MAINTAINED IN EFFECTIVE WORKING ORDER BY THE OPERATOR.

IN THE STATE OF CALIFORNIA, A SPARK ARRESTER IS REQUIRED BY LAW (SECTION 4442 OF THE CALIFORNIA PUBLIC RESOURCES CODE). OTHER STATES MAY HAVE SIMILARLAWS. FEDERALLAWSAPPLYONFEDERALLANDS. SEE YOUR AUTHORIZED SERVICE CENTER/DEPARTMENT FOR SPARK ARRESTER.

TABLE OF CONTENTS

SAFETY RULES ............................................................

2

PRODUCT SPECIFICATIONS.......................................

3

CUSTOMER RESPONSIBILITIES.................................

3

ASSEMBLY.................................................................

4-5

OPERATION .............................................................

6-10

MAINTENANCE SCHEDULE ......................................

11

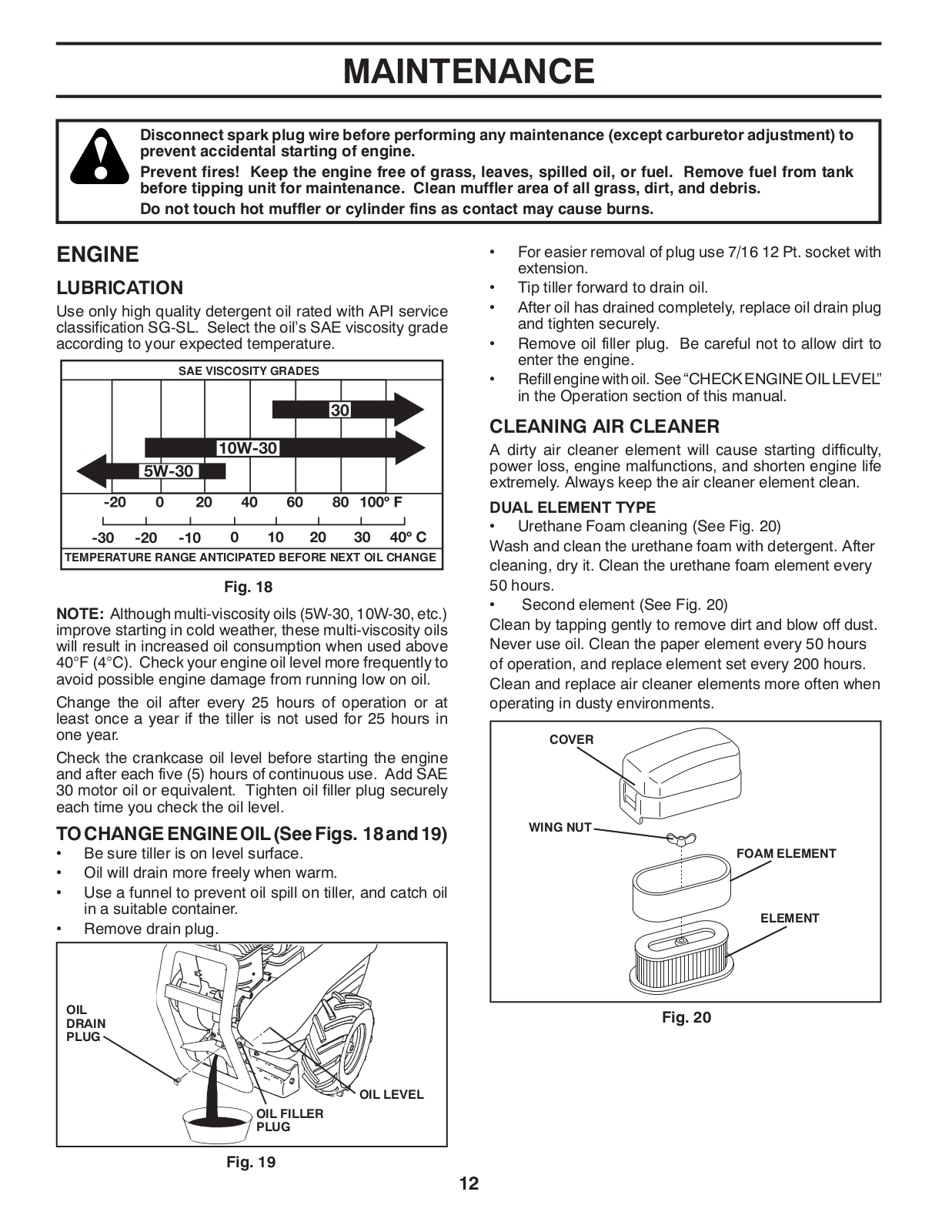

MAINTENANCE .....................................................

10-13

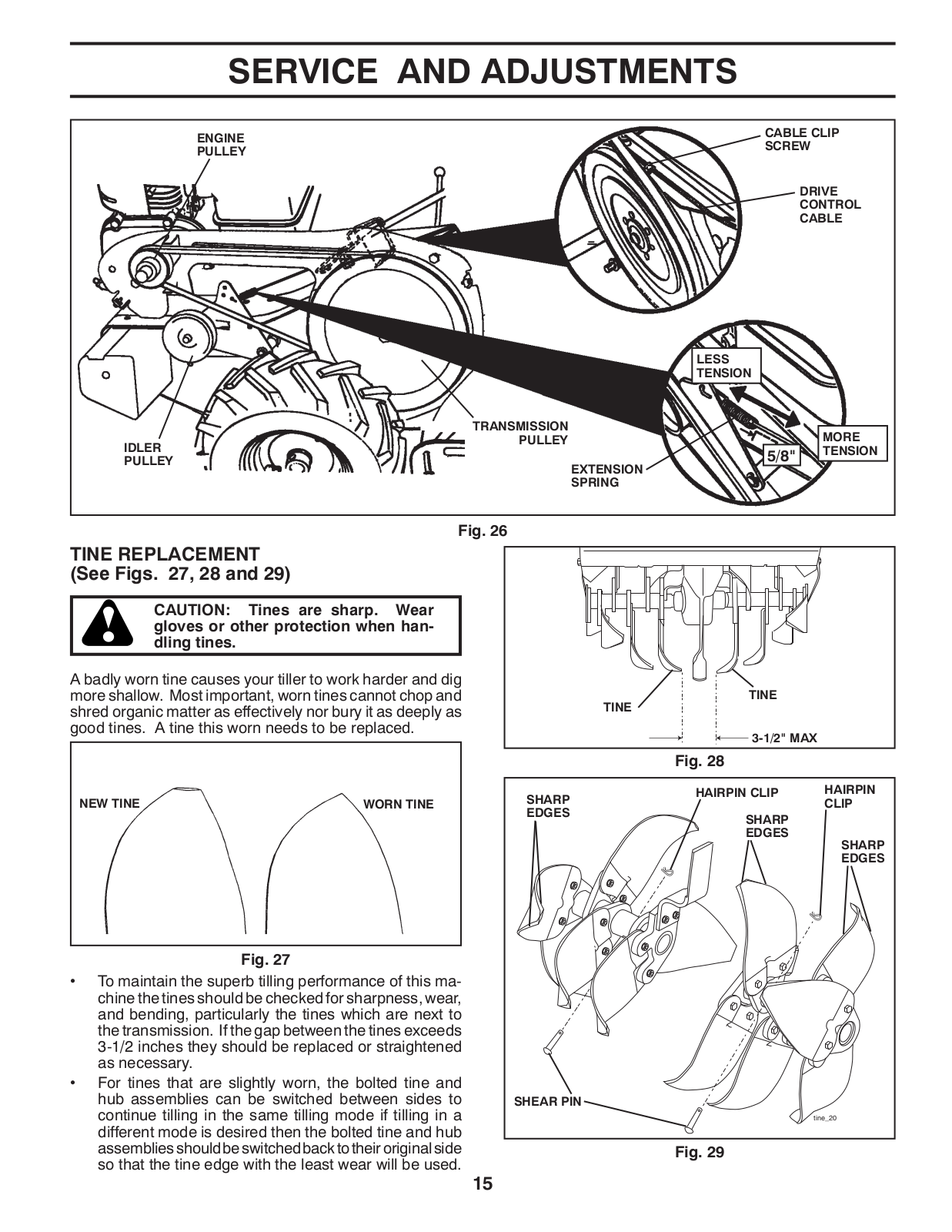

SERVICE & ADJUSTMENTS .................................

14-16

STORAGE....................................................................

16

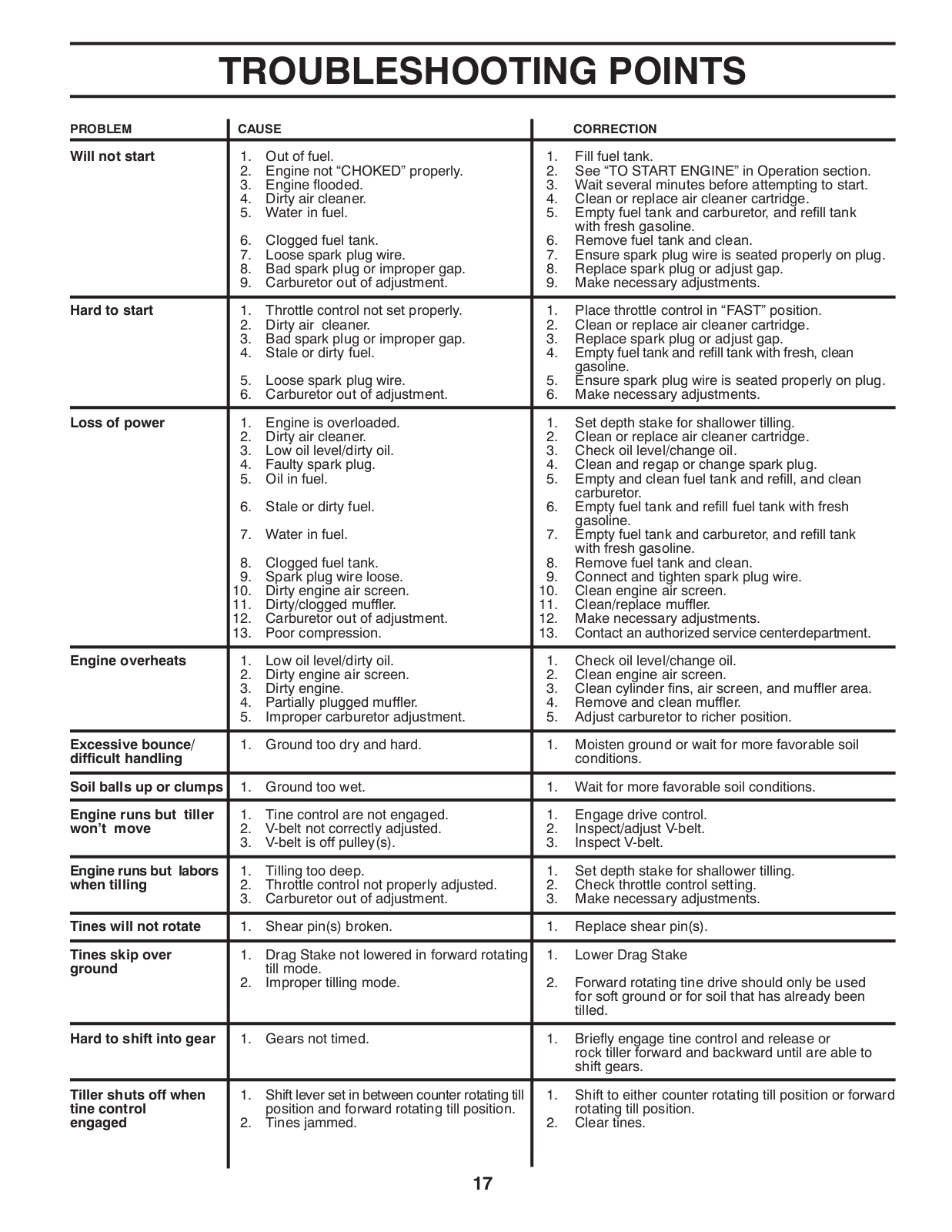

TROUBLESHOOTING.................................................

17

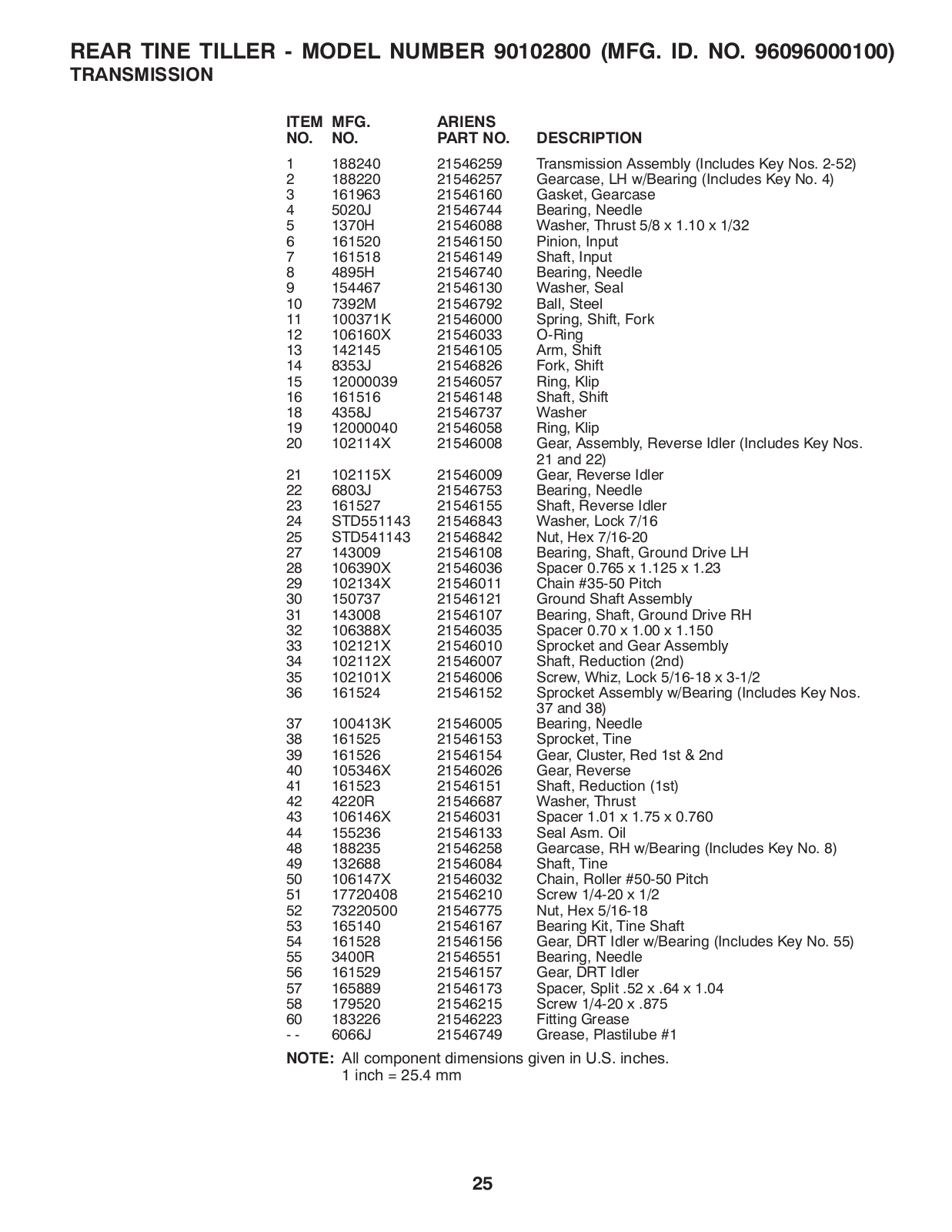

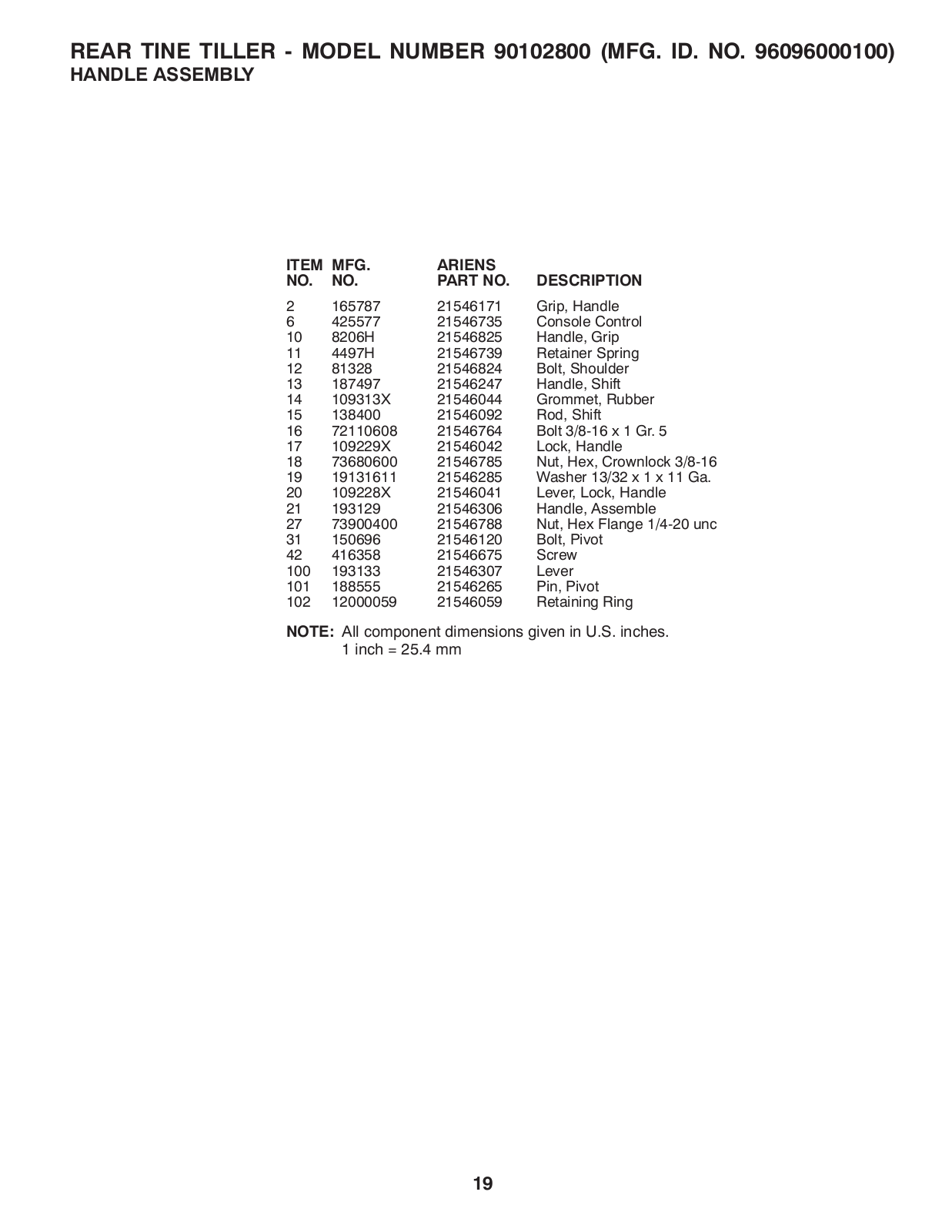

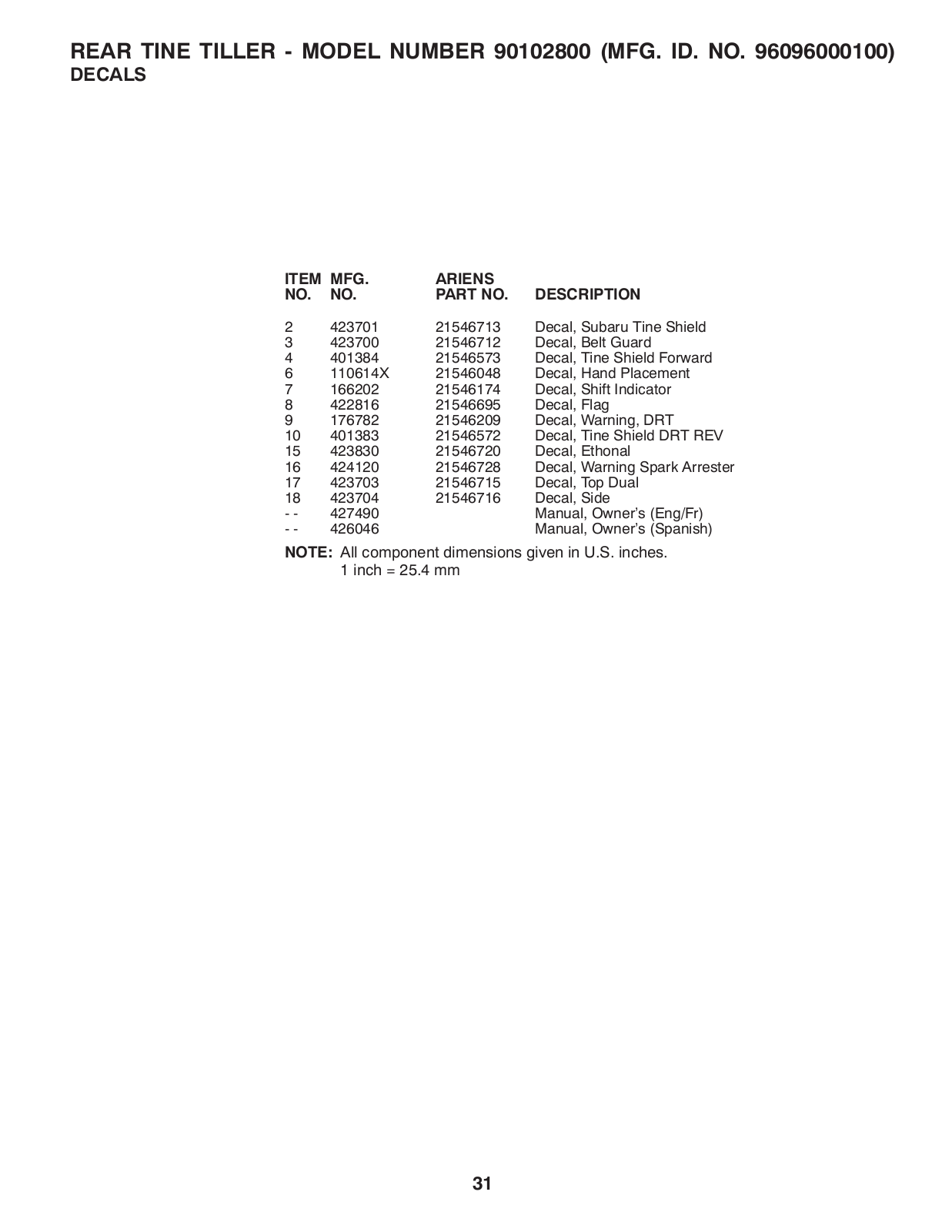

PARTS.....................................................................

18-31

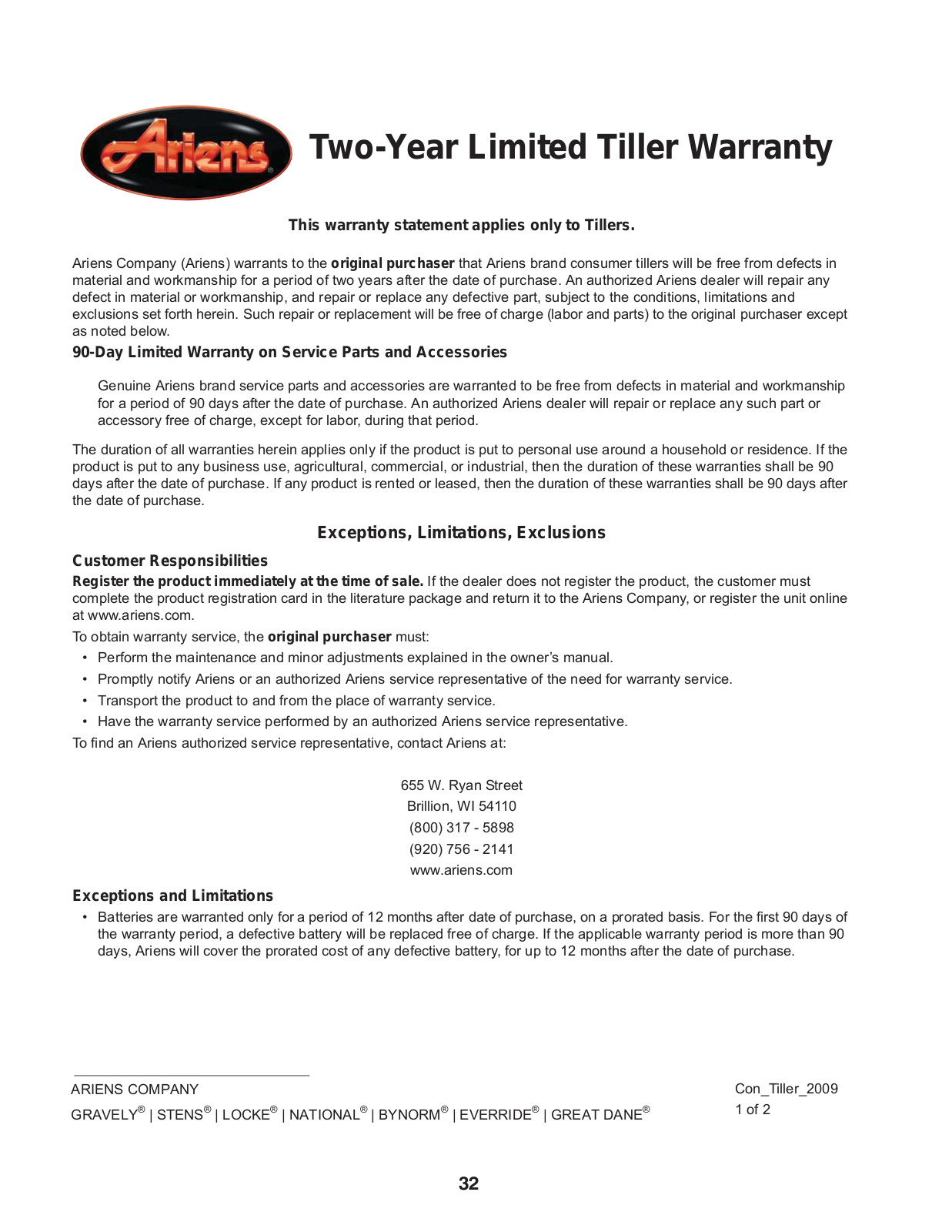

WARRANTY............................................................

32-33

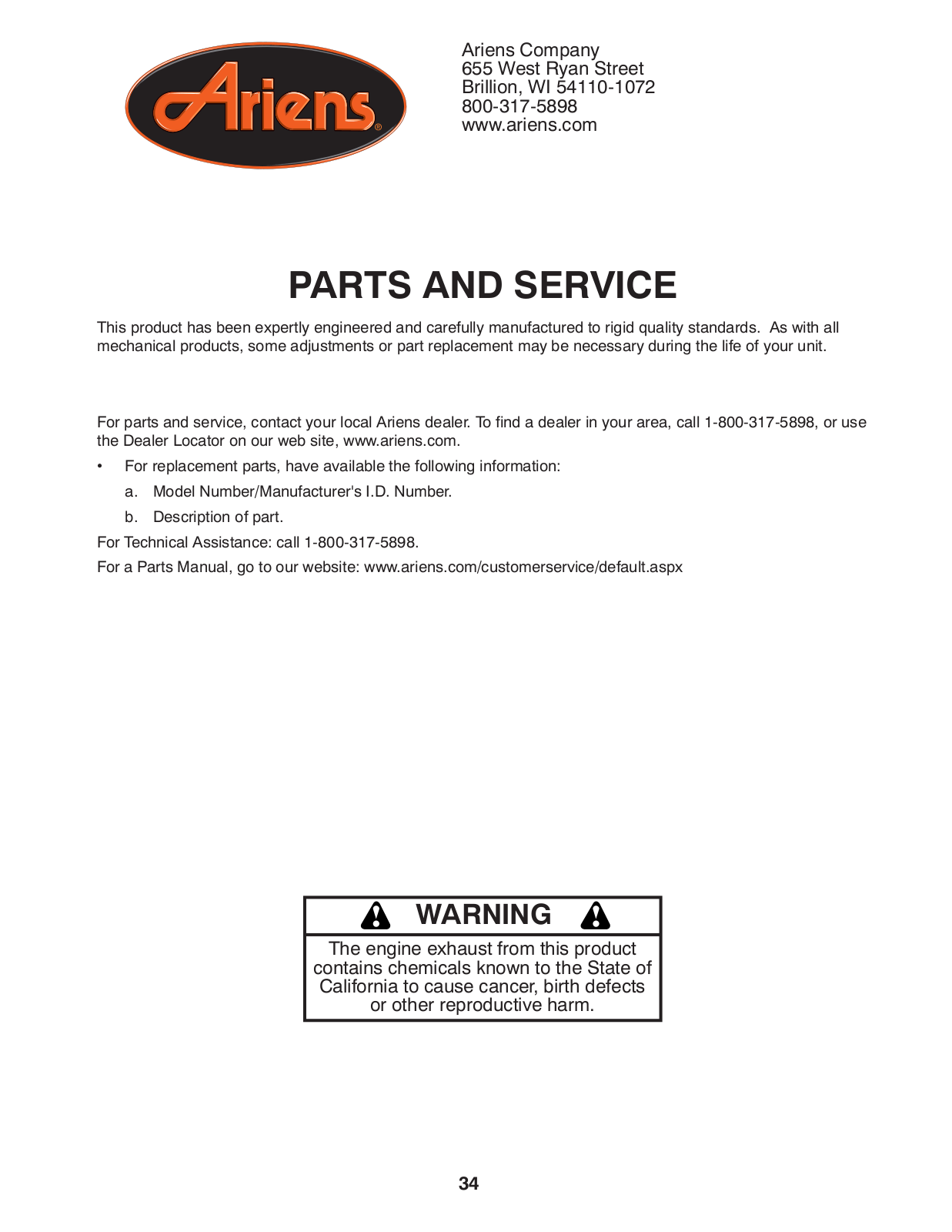

PARTS AND SERVICE................................................

34

3

ASSEMBLY

Your new tiller has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tiller all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to ensure proper tightness.

CONTENTS OF HARDWARE PACK



(2) Handle Locks

(1) Carriage Bolt

(1) Center Locknut



3/8-16UNC x 1 Grade 5

3/8-16UNC

(1) Flat Washer 13/32 x 1 x 11 Gauge

(1) Handle Lock Lever

(1) Hairpin Clip

(1) Pivot Bolt





3/8-16UNC Grade 5

Extra Shear Pins & Clips

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard wrench sizes are listed.

(1) Utility knife

(1) Tire pressure gauge

(1) Pair of pliers

(1) 9/16" wrench

OPERATOR’S POSITION (See Fig. 1)

When right or left hand is mentioned in this manual, it means when you are in the operating position (standing behind tiller handles).

FRONT

LEFT

RIGHT

OPERATOR’S

POSITION

Fig. 1

UNPACKING CARTON (See Fig. 2)

CAUTION: Be careful of exposed staples when handling or disposing of cartoning material.

IMPORTANT: WHEN UNPACKING AND ASSEMBLING TILLER, BE CAREFUL NOT TO STRETCH OR KINK CABLES.

While holding handle assembly, cut cable ties securing handle assembly to top frame. Let handle assembly rest on tiller.

Remove top frame of carton.

Slowly ease handle assembly up and place on top of carton.

Cut down right hand front and right hand rear corners of carton. Lay side carton wall down.

Remove packing material from handle assembly.

SHIFT ROD

HANDLE

ASSEMBLY

Fig. 2

4

ASSEMBLY

INSTALL HANDLE (See Figs. 3, 4, and 5)

Insert one handle lock (with teeth facing outward) in gearcase notch. (Apply grease on smooth side of handle lock to aid in keeping lock in place until handle assembly is lowered into position.)

VIEWED FROM R.H. SIDE OF TILLER

HANDLE



ASSEMBLY

GEARCASE





NOTCH



HANDLE



LOCK

Fig. 3

Grasp handle assembly. Hold in “up” position. Ensure handle lock remains in gearcase notch. Slide handle assembly into position.

HANDLE ASSEMBLY "UP" POSITION

TIGHTEN HANDLE

LOCK LEVER TO

HOLD

LOOSEN HANDLE

LOCK LEVER TO

MOVE

Fig. 4

Rotate handle assembly down. Insert rear carriage bolt first, with bolt head on L.H. side of tiller and loosely assemble locknut (See Fig. 5).

Insert pivot bolt in front part of plate and tighten.

Cutdownremainingcornersofcartonandlaypanelsflat.

Lower the handle assembly. Tighten nut on carriage bolt so handle moves with some resistance. This will allow for easier adjustment.

Place flat washer on threaded end of handle lock lever.

Insert handle lock lever through handle base and gearcase. Screw in handle lock lever just enough to hold lever in place.

Insert second handle lock (with teeth inward) in the slot of the handle base (just inside of washer).

With handle assembly in lowest position, securely tighten handle lock lever by rotating clockwise. Leaving handle assembly in lowest position will make it easier to remove tiller from carton.





SILVER







GEARCASE

HANDLE







LOCK

FLAT

HANDLE







WASHER

SLOT







LOCK

REAR







LEVER









CARRIAGE









BOLT







PIVOT

















BOLT







LOCKNUTS

4









_3









ndles









ha

HANDLE BASE











Fig. 5

CONNECT SHIFT ROD (See Fig. 6)

Insert end of shift rod into hole of shift lever indicator.

Insert hairpin clip through hole of shift rod to secure with bend of clip on right side.



SHIFT

HAIRPIN

LEVER

CLIP

INDICATOR

SHIFT



ROD



Fig. 6

REMOVE TILLER FROM CRATE

Ensure shift lever indicator is in “N” position (See Fig. 6).

Tilt tiller forward by lifting handle. Separate cardboard cover from leveling shield.

Rotate tiller handle to the right and pull tiller out of carton.

CHECK TIRE PRESSURE

The tires on your unit were overinflated at the factory for shipping purposes. Correct and equal tire pressure is important for best tilling performance.

Reduce tire pressure to 20 PSI (1.4 kg/cm2).

HANDLE HEIGHT

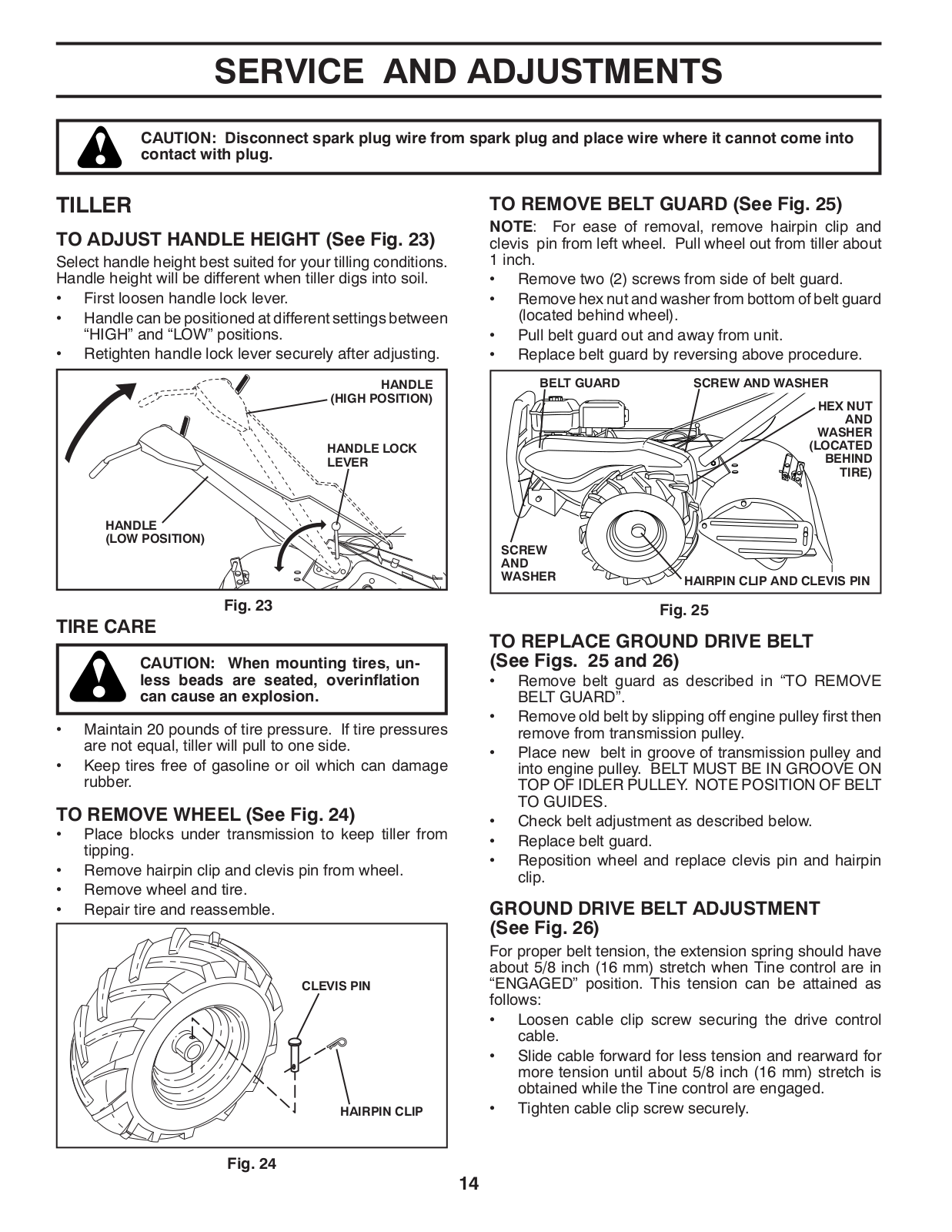

Handle height may be adjusted to better suit operator. (See “TO ADJUST HANDLE HEIGHT” in the Service and Adjustments section of this manual.)

5

OPERATION

KNOW YOUR TILLER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER.

Compare the illustrations with your tiller to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference.

Thesesymbols mayappearonyourTillerorinliteraturesuppliedwiththeproduct. Learnandunderstandtheirmeaning.











CAUTION

ENGINE

ENGINE

FAST

SLOW

CHOKE

FUEL

OIL





















TILLING

TILLING

FORWARD

NEUTRAL

REVERSE

OR WARNING

ON

OFF





















SHIFT LEVER







FUEL

THROTTLE

















CONTROL





















VALVE



ENGINE

















































ON/OFF















CHOKE







SWITCH

TINE













CONTROL









CONTROL





































SHIFT LEVER























INDICATOR













DRAG























STAKE



















DEPTH STAKE

























LEVELING

























SHIELD













































RECOIL

























STARTER

























HANDLE





OUTER SIDE SHIELD

















Fig. 7

MEETS ANSI SAFETY REQUIREMENTS

Our tillers conform to the safety standards of the American National Standards Institute.

CHOKE CONTROL - Used when starting a cold engine.DEPTH STAKE - Controls depth at which tiller will dig.

DRAG STAKE - Controls forward speed in forward rotating till position.

ENGINE ON/OFF SWITCH - The engine switch enables and disables the ignition system.

FUEL VALVE - The fuel valve opens and closes the passage between the fuel tank and the carburetor.

TINE CONTROL - Used to engage tines.

LEVELING SHIELD - Levels tilled soil.

OUTER SIDE SHIELD - Adjustable to protect small plants from being buried.

RECOIL STARTER HANDLE - Used to start the engine.SHIFT LEVER - Used to shift transmission gears.

SHIFT LEVER INDICATOR - Shows which gear the transmission is in.

THROTTLE CONTROL - Controls engine speed.

6

OPERATION

The operation of any tiller can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields before starting your tiller and while 00155 tilling. We recommend a wide vision safety mask for over spectacles or standard safety glasses.

HOW TO USE YOUR TILLER

Know how to operate all controls before adding fuel and oil or attempting to start engine.

STOPPING (See Fig. 8)

TINES AND DRIVE

1.Release tine control to stop movement.

2.Move shift lever indicator to “N” (neutral) position.

ENGINE

3.Set the speed control lever at the low speed position and allow the engine to run at low speed for 1 or 2 minutes before stopping.

4.Turn the ENGINE SWITCH counterclockwise to the position “ O ” (OFF).

5.Close the fuel valve.

6.Pull the starter handle slowly and return the handle to its original position when resistance is felt. This operation is necessary to prevent outside moist air from intruding into the combustion chamber.

NOTE: Never use choke to stop engine.

IMPORTANT: TO STOP ENGINE IN AN EMERGENCY, TURN THE ENGINE SWITCH TO THE OFF POSITION.

TINE CONTROL





“ON” (UP)





POSITION





TINE CONTROL





“OFF” (DOWN)





POSITION





THROTTLE

ENGINE

FUEL

CONTROL

SWITCH

VALVE





ENGINE





SWITCH





THROTTLE





CONTROL





RECOIL





STARTER





FUEL VALVE

Fig. 8

TINE OPERATION - WITH WHEEL DRIVE

Always release tine control before moving shift lever into another position.

Tine movement is achieved by moving shift lever to

either the counter rotating () till position or the forward rotating () till position and engaging tine control.

FORWARD - WHEELS ONLY/TINES STOPPED

Release tine control and move shift lever indicator to “F” (forward) position. Engage tine control and tiller will move forward.

REVERSE - WHEELS ONLY/TINES STOPPED

DO NOT STAND DIRECTLY BEHIND TILLER.

Release the tine control.

Move throttle control to “SLOW” position.

Move shift lever indicator to “R” (reverse) position.

Hold tine control against the handle to start tiller movement.

HARD TO SHIFT GEARS

Briefly engage tine control and release or rock tiller forward and backward until are able to shift gears.

DEPTH STAKE (See Fig. 9)

The depth stake can be raised or lowered to allow you more versatile tilling and cultivating, or to more easily transport your tiller.















TRANSPORT

SHALLOWEST













POSITION















TILLING















(CULTIVATING)















DEEPEST















TILLING















DEPTH















STAKE





























2













_











e











k











ta











s











_













h















dept













Fig. 9

7

OPERATION

DRAG STAKE (See Fig. 10)

The drag stake should be raised when tilling in the counter rotating () till position. The drag stake should be lowered when tilling in the forward rotating ()till position.

LOWERED (FORWARD ROTATING TILL)

RAISED



(COUNTER ROTAT-



ING TILL)

10



depth stake

Fig. 10

TILLING (See Fig. 11)

Release depth stake pin. Pull the depth stake up for increased tilling depth. Place depth stake pin in hole of depth stake to lock in position.

Place shift lever indicator in counter rotating () till position .

Hold the tine control against the handle to start tilling movement. Tines and wheels will both turn.

Move throttle control to “FAST” position for deep tilling. To cultivate, throttle control can be set at any desired speed, depending on how fast or slow you wish to cultivate.

IMPORTANT: ALWAYS RELEASE TINE CONTROL BEFORE MOVING SHIFT LEVER INTO ANOTHER POSITION.





DEPTH STAKE PIN





“RELEASED” POSITION





“LOCKED”





POSITION

NUT “B”





OUTER

NUT “A”

11

_

stake

SIDE SHIELD





_



th



p





de

Fig. 11

TURNING

Release the tine control.

Move throttle control to “SLOW” position.

Place shift lever indicator in “F” (forward) position. Tines will not turn.

Lift handle to raise tines out of ground.

Swing the handle in the opposite direction you wish to turn, being careful to keep feet and legs away from tines.

When you have completed your turn-around,release the tine control and lower handle. Place shift lever in (till) position and move throttle control to desired speed. To begin tilling, hold tine control against the handle.

CULTIVATING

Use the forward rotating tine drive when cultivating, tilling soft ground or tilling pre-tilledsoil.

Releasedepthanddragstakepins.Lowerdragstake.Pull thedepthstakeupforincreasedtillingdepth.Placeproper pin in hole of depth stake or drag stake to lock in position.

Place shift lever indicator in forward rotating () till position.

Hold the tine control against the handle to start tilling movement. Tines and wheels will both turn.

Move throttle control "FAST" position for deep tilling. To cultivate, throttle control can be set at any desired speed, depending on how fast or slow you wish to cultivate.

Alwayslowerthedragstakewhenusingtheforward rotating tine drive.

OUTER SIDE SHIELDS (See Fig. 11)

The back edges of the outer side shields are slotted so that the shields can be raised for deep tilling and lowered for shallow tilling to protect small plants from being buried. Loosen nut “A” in slot and nut “B”. Move shield to desired position (both sides). Retighten nuts.

TO TRANSPORT

CAUTION: Before lifting or transporting, allow tiller engine and muffler to cool. Disconnectsparkplug wire. Drain gasoline from fuel tank.

AROUND THE YARD

Release the depth stake pin. Move the depth stake down to the top hole for transporting the tiller. Place depth stake pin in hole of depth stake to lock in position. This prevents tines from scuffing the ground.

Place shift lever indicator in “F” (forward) position for transporting.

Hold the tine control against the handle to start tiller movement. Tines will not turn.

Move throttle control to desired speed.

AROUND TOWN

Disconnect spark plug wire.

Drain fuel tank.

Transport in upright position to prevent oil leakage.

8

OPERATION

BEFORE STARTING ENGINE

IMPORTANT: BE VERY CAREFUL NOT TO ALLOW DIRT TO ENTER THE ENGINE WHEN CHECKING OR ADDING OIL OR FUEL. USE CLEAN OIL AND FUEL AND STORE IN APPROVED, CLEAN, COVERED CONTAINERS. USE CLEAN FILL FUNNELS.

CHECK ENGINE OIL LEVEL (See Fig. 12)

The engine in your unit has been shipped, from the factory, already filled with SAE 30 summer weight oil.

With engine level, clean area around oil filler plug and remove plug.

Engine oil should be to point of overflowing when engine is level. For approximate capacity see “PRODUCT SPECIFICATIONS” on page 3 of this manual. All oil must meet A.P.I. Service Classification SF-SJ.

For cold weather operation you should change oil for easier starting (See oil viscosity chart in the Maintenance section of this manual).

To change engine oil, see the Maintenance section in this manual.

OIL FILLER PLUG

OIL LEVEL

MAXIMUM UPPER LEVEL

MINIMUM UPPER LEVEL

Fig. 12

ADD GASOLINE

Fill fuel tank to bottom of filler neck. Do not overfill. Use fresh, clean, regular unleaded gasoline with a minimum of 87 octane. (Use of leaded gasoline will increase carbon and lead oxide deposits and reduce valve life.) Do not mix oil with gasoline. Purchase fuel in quantities that can be used within 30 days to assure fuel freshness.

CAUTION: Fill to within 1/2 inch of top of fuel tank to prevent spills and to allow for fuel expansion. If gasoline is accidentally spilled, move machine away from area of spill. Avoid creating any source of ignition until gasoline vapors have disappeared.

Wipe off any spilled oil or fuel. Do not store, spill or use gasoline near an open flame.

IMPORTANT: WHENOPERATINGINTEMPERATURESBELOW 32°F(0°C), USE FRESH, CLEAN WINTER GRADE GASOLINE TO HELP ENSURE GOOD COLD WEATHER STARTING.

CAUTION:Alcoholblendedfuels(calledgasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before storage of 30 days or longer. Drain the gas tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season. See Storage Instructions for additional information. Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.

TO START ENGINE (See Fig. 13)

CAUTION: Keep tine control in “OFF” position when starting engine.

1.Move shift lever indicator to “N” (neutral) position.

2.Open the fuel valve.

3.Turn the ENGINE SWITCH to the position “ I ” (ON).

4.Set the speed control lever 1/3 of the way towards the high speed position.

5.Close the choke lever.

NOTE: If the engine is cold or the ambient temperature is low, close the choke lever fully.

NOTE: If the engine is warm or the ambient temperature is high, open the choke leverhalf-way,or keep it fully open.

6.Pull the starter handle slowly until resistance is felt. This is the “compression” point. Return the handle to its original position and pull swiftly. Do not pull out the rope all the way. After starting the engine, allow the starter handle to return to its original position while still holding the handle.

7.After starting the engine, gradually open choke by turning the choke lever and finally keep it fully opened. Do not fully open the choke lever immediately when the engine is cold or the ambient temperature is low, because the engine may stop.

NOTE: If engine does not start, see troubleshooting points.

ENGINE

SWITCH

SPARK

THROTTLE

CONTROL

PLUG



RECOILCHOKE STARTER CONTROL

FUEL VALVE

Fig. 13

9

OPERATION

TILLING HINTS (See Fig. 14)

CAUTION: Until you are accustomed to handling your tiller, start actual field use with throttle in slow position (mid-waybetween “FAST” and “IDLE”).

Tilling is digging into, turning over, and breaking up packed soil before planting. Loose, unpacked soil helps root growth. Best tilling depth is 4" to 6" (10-15cm). A tiller will also clear the soil of unwanted vegetation. The decomposition of this vegetable matter enriches the soil. Depending on the climate (rainfall and wind), it may be advisable to till the soil at the end of the growing season to further condition the soil.

You will find tilling much easier if you leave a row untilled between passes. Then go back between tilled rows. (See Fig. 14) There are two reasons for doing this. First, wide turns are much easier to negotiate than about-faces.Second, the tiller won’t be pulling itself, and you, toward the row next to it.

Soil conditions are important for proper tilling. Tines will not readily penetrate dry, hard soil which may contribute to excessive bounce and difficult handling of your tiller. Hard soil should be moistened before tilling; however, extremely wet soil will “ball-up”or clump during tilling. Wait until the soil is less wet in order to achieve the best results. When tilling in the fall, remove vines and long grass to prevent them from wrapping around the tine shaft and slowing your tilling operation.

Do not lean on handle. This takes weight off the wheels and reduces traction. To get through a really tough section of sod or hard ground, apply upward pressure on handle or lower the depth stake.

4

3

2

1

5

6



7

Fig. 14

CULTIVATING

Cultivating is destroying the weeds between rows to prevent them from robbing nourishment and moisture from the plants. At the same time, breaking up the upper layer of soil crust will help retain moisture in the soil. Best digging depth is 1" to 3" (2.5-7.5cm). Lower the outer side shields to protect small plants from being buried.

Cultivate up and down the rows at a speed which will allow tines to uproot weeds and leave the ground in rough condition, promoting no further growth of weeds and grass (See Fig. 15).

Do not lean on handle, this takes weight off the wheels, reduces traction, and may cause the tiller to skip over the ground.

Always lower the drag stakewhenusing theforward rotating tine drive.

Fig. 15

ADJUST WHEELS FOR CULTIVATING

(See Figs. 16 and 17)

Place blocks under right hand side of tiller and remove hairpin clip and clevis pin from right hand wheel.

Move wheel outward approximately 1 inch until hole in inner wheel hub lines up with inner hole in axle.

Replace clevis pin and hairpin clip on inside of wheel and remove blocks.

Repeat preceding steps on left hand side.

NOTE: In extremely rough conditions and while cultivating, the wheels should be moved outward on the axle for increased stability.

OUTER VIEW

OF TIRE

CLEVIS PIN

HAIRPIN CLIP

Fig. 16

INNER VIEW

OF TIRE

CLEVIS PIN

HAIRPIN CLIP

Fig. 17

10
