PORTABLE AIR CONDITIONER

M00019-V01

CAUTION

This symbol denotes a caution or warning.

Caution:

-Please read these instructions carefully before installing and operating your Williamson-Thermofloportable air conditioner. They will help you to derive the maximum benefit from your air conditioner.

-The air conditioner should always be operated or stored in an upright position. If you have any reason to believe that it was not always in an upright position during the 24 hours before you acquired it, leave it upright for 24 hours before attempting to operate it. This will help to ensure that your air conditioner will run properly.

Service & installation manual

CONTENTS

Introduction

1

Technical specifications

2

Disassembly illustration

3

Parts list per model

4-6

Accessories

7

Installation instructions

8-11

Service & installation manual

INTRODUCTION

For future reference, we suggest you attach a copy of your sales slip/receipt to this page, along with the following information which is located on the manufacturer’s nameplate located on the side of the unit. You will be asked this information if your unit requires servicing and/or for general inquiries.

Model number:

Serial number:

Date of purchase:

Date of installation:

Dealer’s Name and Address:

Service & installation manual _1

TECHNICAL SPECIFICATIONS

Service & installation manual _2

DISASSEMBLY ILLUSTRATION

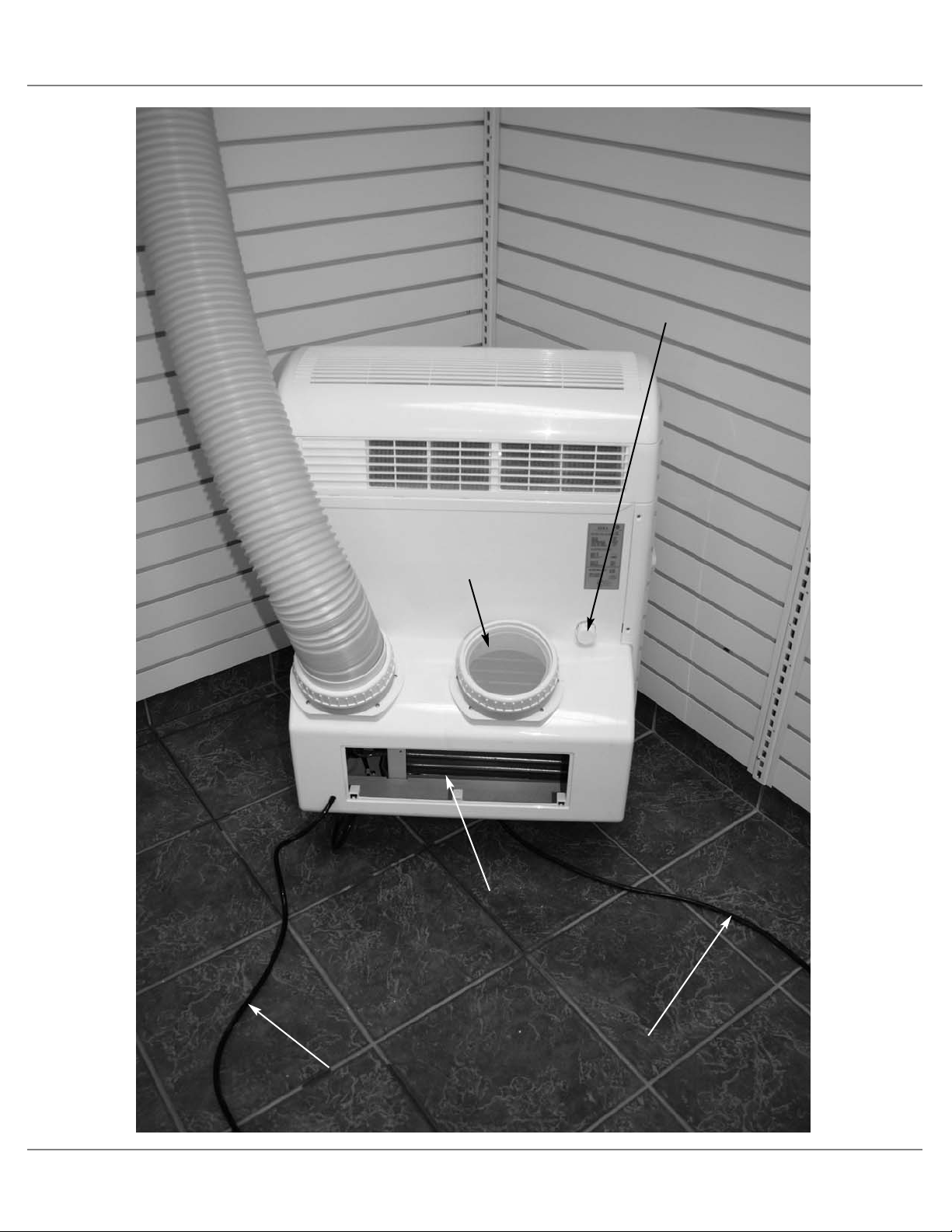

See Installation instructions p.8

Service & installation manual _3

PARTS LIST PER MODEL

Service & installation manual _4

PARTS LIST PER MODEL



Ref. No.

Description

Qty

Part N°





30

Seal gasket

4

P00421





31

White rubber holder

4

P00422





33

Stopper

2

P00423





35

Fixed louvers air intake

1

P00425





36

Remote control & holder

1

P00500





37

Front panel

1

P00501





38

Screw cap cover

2

P00428





39

back panel

1

P00502





40

back panel door

1

P00430





41

Insulation material (Compressor)

1

P00431





42

Evaporator fan motor assembly

Kit

K00073





42-1

Evaporator fan motor

1

P00503





42-2

Motor cushion

2

P00504





43

PCB (display screen)

1

P00505





44

Condenser fan motor assembly

Kit

K00074





44-1

Condenser fan motor

1

P00506





44-2

Motor cushion

2

P00507





45

Casing set

1

P00508





47

Flow control bar

2

P00441





48

Axis of rotation assembly

Kit

K00059





48-1

Axis of rotation 1

1

P00442





48-2

Axis of rotation 2

1

P00443





48-3

Axis of rotation rod

1

P00444





49

Step motor assembly

Kit

K00060





49-1

Step motor

1

P00445





49-2

Step motor installation board

1

P00446





50

Grid

1

P00509





51

Case assembly (bottom)

1

P00510





52

Evaporator assembly

1

P00511







Control box assembly

Kit

K00061





53-1

Control box

1

P00450





53-2

Control box cover

1

P00451





54

Electrical Parts assembly

Kit

K00110





54-1

PCB

1

P00512





54-2

Transformer

1

P00513





54-3

Capacitor 8.0uf/250vac

1

P00454





54-4

Capacitor 45uf/250vac

1

P00455





54-5

Relay

1

P00514





55

Air outlet assembly

Kit

K00063





55-1

Air outlet (front)

1

P00457





55-2

Air outlet (back)

1

P00458





56

Air outlet connectors



K00064





56-1

Upper air outlet connector

1

P00459





56-2

Lower air outlet connector

1

P00460















Service & installation manual _5

PARTS LIST PER MODEL

Service & installation manual _6

ACCESSORIES

The following accessories are supplied with the air conditioner. *The quantities are indicated in parentheses.

26. Window panel with

2 holes A (1)

78. Panel C (1)

30.Seal gasket (2)

36.Remote control and holder (1)

27. Window panel B (1)

Owner’s manual (1) Service & installation manual (1)

31. White rubber holder (2)

AAA batteries for remote control (2)

29. (28,1-28,2-28,3)

Window flange with flaps for air exhaust (1)

29. (35) Window flange with fixed louvers for air intake (1)

33. Stopper (2)

Note:

Please check accessories to make sure that you have all the parts needed for installation.

Service & installation manual _7
