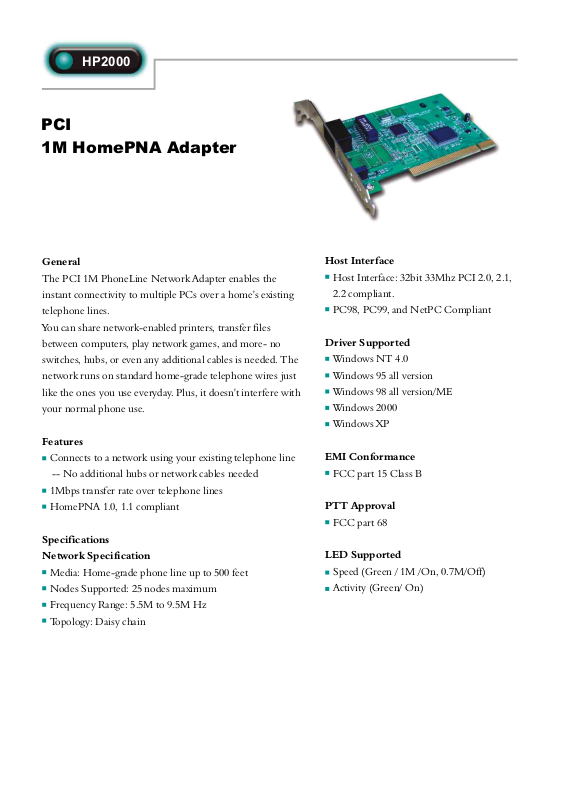

HP2000

PCI

1M HomePNA Adapter

General

The PCI 1M PhoneLine Network Adapter enables the instant connectivity to multiple PCs over a home's existing telephone lines.

You can share network-enabledprinters, transfer files between computers, play network games, and moreno switches, hubs, or even any additional cables is needed. The network runs on standardhome-gradetelephone wires just like the ones you use everyday. Plus, it doesn't interfere with your normal phone use.

Features

Connects to a network using your existing telephone line--No additional hubs or network cables needed

1Mbps transfer rate over telephone lines

HomePNA 1.0, 1.1 compliant

Specifications

Network Specification

Media:Home-gradephone line up to 500 feet

Nodes Supported: 25 nodes maximum

Frequency Range: 5.5M to 9.5M HzTopology: Daisy chain

Host Interface

Host Interface: 32bit 33Mhz PCI 2.0, 2.1,

2.2 compliant.

PC98, PC99, and NetPC Compliant

Driver Supported

Windows NT 4.0

Windows 95 all version

Windows 98 all version/ME

Windows 2000

Windows XP

EMI Conformance

FCC part 15 Class B

PTT Approval

FCC part 68

LED Supported

Speed (Green / 1M /On, 0.7M/Off)Activity (Green/ On)
