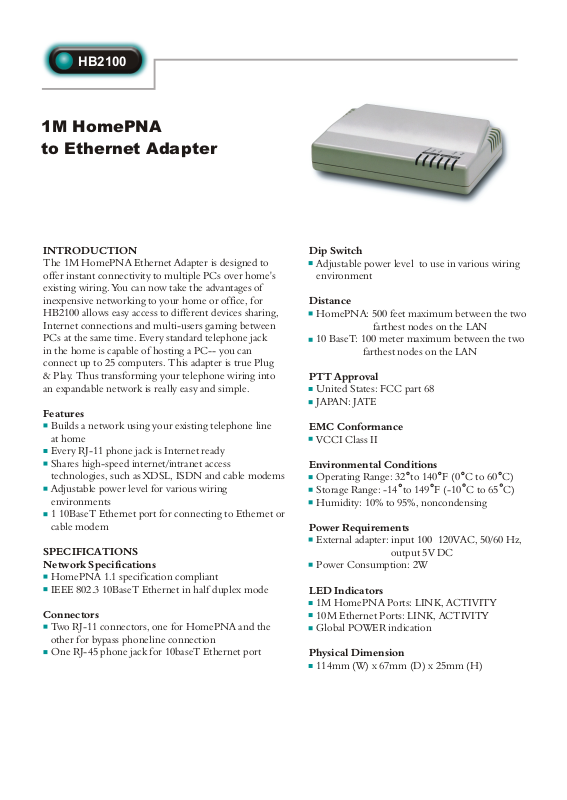

HB2100

1M HomePNA

to Ethernet Adapter

INTRODUCTION

The 1M HomePNA Ethernet Adapter is designed to offer instant connectivity to multiple PCs over home's existing wiring. You can now take the advantages of inexpensive networking to your home or office, for HB2100 allows easy access to different devices sharing, Internet connections and multi-usersgaming between PCs at the same time. Every standard telephone jack in the home is capable of hosting aPC--you can connect up to 25 computers. This adapter is true Plug & Play. Thus transforming your telephone wiring into an expandable network is really easy and simple.

Features

Builds a network using your existing telephone line at home

EveryRJ-11phone jack is Internet ready

Shareshigh-speedinternet/intranet access technologies, such as XDSL, ISDN and cable modems

Adjustable power level for various wiring environments

1 10BaseT Ethernet port for connecting to Ethernet or cable modem

SPECIFICATIONS

Network Specifications

HomePNA 1.1 specification compliant

IEEE 802.3 10BaseT Ethernet in half duplex mode

Connectors

TwoRJ-11connectors, one for HomePNA and the other for bypass phoneline connection

OneRJ-45phone jack for 10baseT Ethernet port

Dip Switch

Adjustable power level to use in various wiring environment

Distance

HomePNA: 500 feet maximum between the two farthest nodes on the LAN

10 BaseT: 100 meter maximum between the two farthest nodes on the LAN

PTT Approval

United States: FCC part 68

JAPAN: JATE

EMC Conformance

VCCI Class II

Environmental Conditions

Operating Range: 32 to 140 F (0 C to 60 C)

Storage Range:-14to 149 F(-10C to 65 C)

Humidity: 10% to 95%, noncondensing

Power Requirements

External adapter: input 100 120VAC, 50/60 Hz, output 5V DC

Power Consumption: 2W

LED Indicators

1M HomePNA Ports: LINK, ACTIVITY

10M Ethernet Ports: LINK, ACTIVITY

Global POWER indication

Physical Dimension

114mm (W) x 67mm (D) x 25mm (H)
