Abit IB9 User Manual

Size:
4.84 Mb
Download

IB9

Motherboard

Socket 775

Intel Core 2 Duo,

Pentium Extreme Editon,

Pentium D, Pentium 4

Intel P965 / ICH8

FSB1066

Dual DDR2 800

PCI Express

Gigabit LAN

4x SATA 3Gb/s

7.1 Channel HD Audio

Appendix QIG Multilingual Utility & Driver Setup BIOS Setup Hardware

IB9

User’s Manual

English + Multilingual QIG

1st Edition, October 2006

Copyright and Warranty Notice

The information in this document is subject to change without notice and does not represent a commitment on part of the vendor, who assumes no liability or responsibility for any errors that may appear in this manual.

No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for any particular part of this document. In no event shall the manufacturer be liable for direct, indirect, special, incidental or consequential damages arising from any defect or error in this manual or product.

Product names appearing in this manual are for identification purpose only and trademarks and product names or brand names appearing in this document are the property of their respective owners.

This document contains materials protected under International Copyright Laws. All rights reserved. No part of this manual may be reproduced, transmitted or transcribed without the expressed written permission of the manufacturer and authors of this manual.

If you do not properly set the motherboard settings, causing the motherboard to malfunction or fail, we cannot guarantee any responsibility.

ii

IB9

Contents

1. Hardware Setup ...............................................................

1-1

1.1

Specifications ..............................................................................

1-1

1.2

Motherboard Layout.....................................................................

1-2

1.3

Choosing a Computer Chassis .......................................................

1-3

1.4 Installing Motherboard .................................................................

1-3

1.5

Checking Jumper Settings ............................................................

1-4



1.5.1 CMOS Memory Clearing Header and Backup Battery ..............

1-4



1.5.2 Wake-upHeader .................................................................

1-6

1.6

Connecting Chassis Components...................................................

1-7



1.6.1 ATX Power Connectors ........................................................

1-7



1.6.2 Front Panel Switches & Indicators Headers............................

1-8



1.6.3 FAN Power Connectors ........................................................

1-9

1.7

Installing Hardware....................................................................

1-10



1.7.1 CPU Socket 775 ................................................................

1-10



1.7.2 DDR2 Memory Slots ..........................................................

1-12

1.8

Connecting Peripheral Devices ....................................................

1-13



1.8.1 Floppy and IDE Disk Drive Connectors ................................

1-13



1.8.2 Serial ATA Connectors .......................................................

1-14



1.8.3 Additional USB 2.0 Port Headers.........................................

1-15



1.8.4 Internal Audio Connectors..................................................

1-16



1.8.5 Front Panel Audio Connection Header .................................

1-16



1.8.6 PCI and PCI Express X16, X1 Slots .....................................

1-18

1.9

Onboard Status Display..............................................................

1-19



1.9.1 Power Source Indicators ....................................................

1-19

1.10 Connecting Rear Panel I/O Devices ...........................................

1-20

2. BIOS Setup.......................................................................

2-1

2.1

SoftMenu Setup...........................................................................

2-2

2.2

Standard CMOS Features..............................................................

2-4

2.3

Advanced BIOS Features ..............................................................

2-7

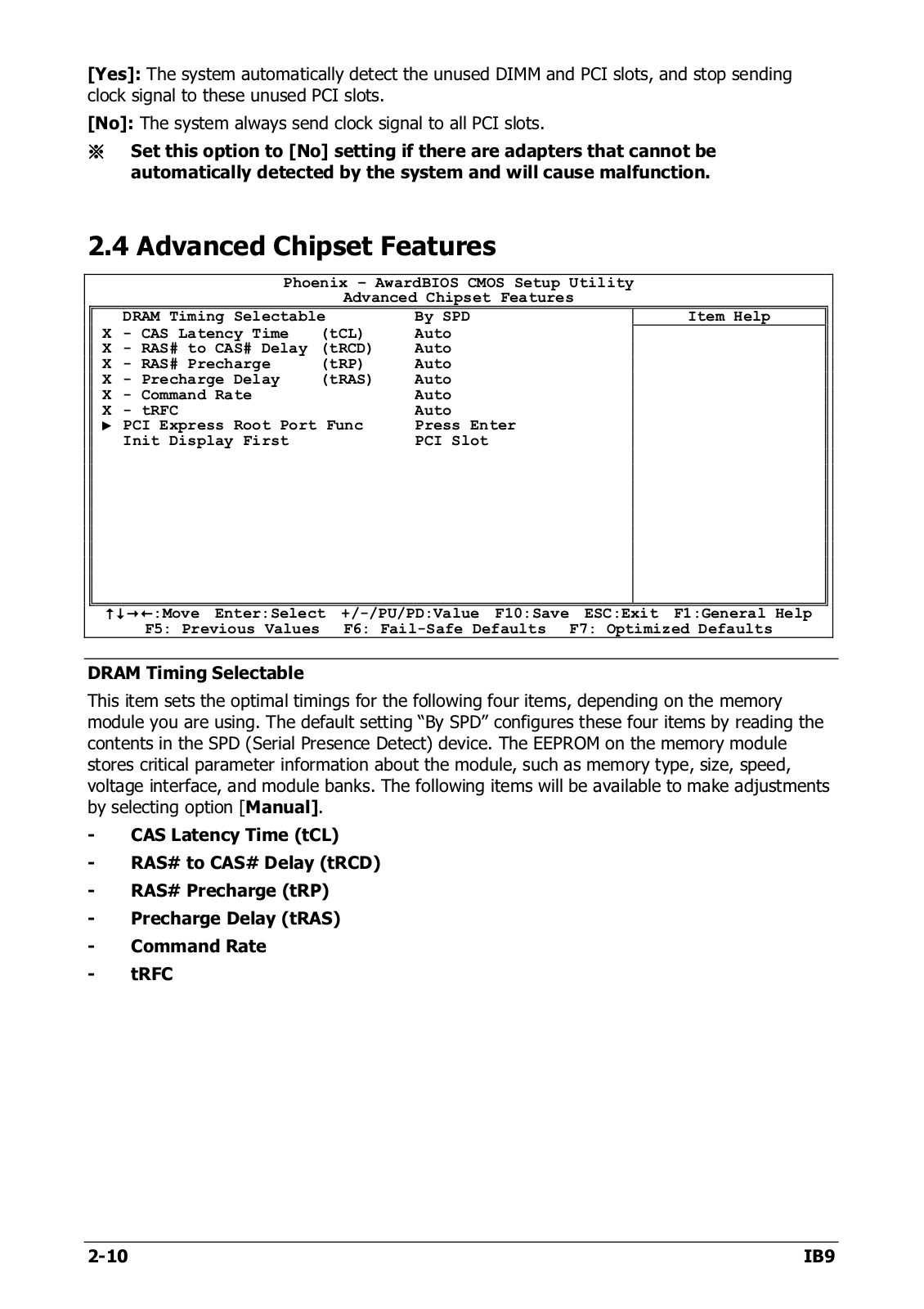

2.4

Advanced Chipset Features.........................................................

2-10

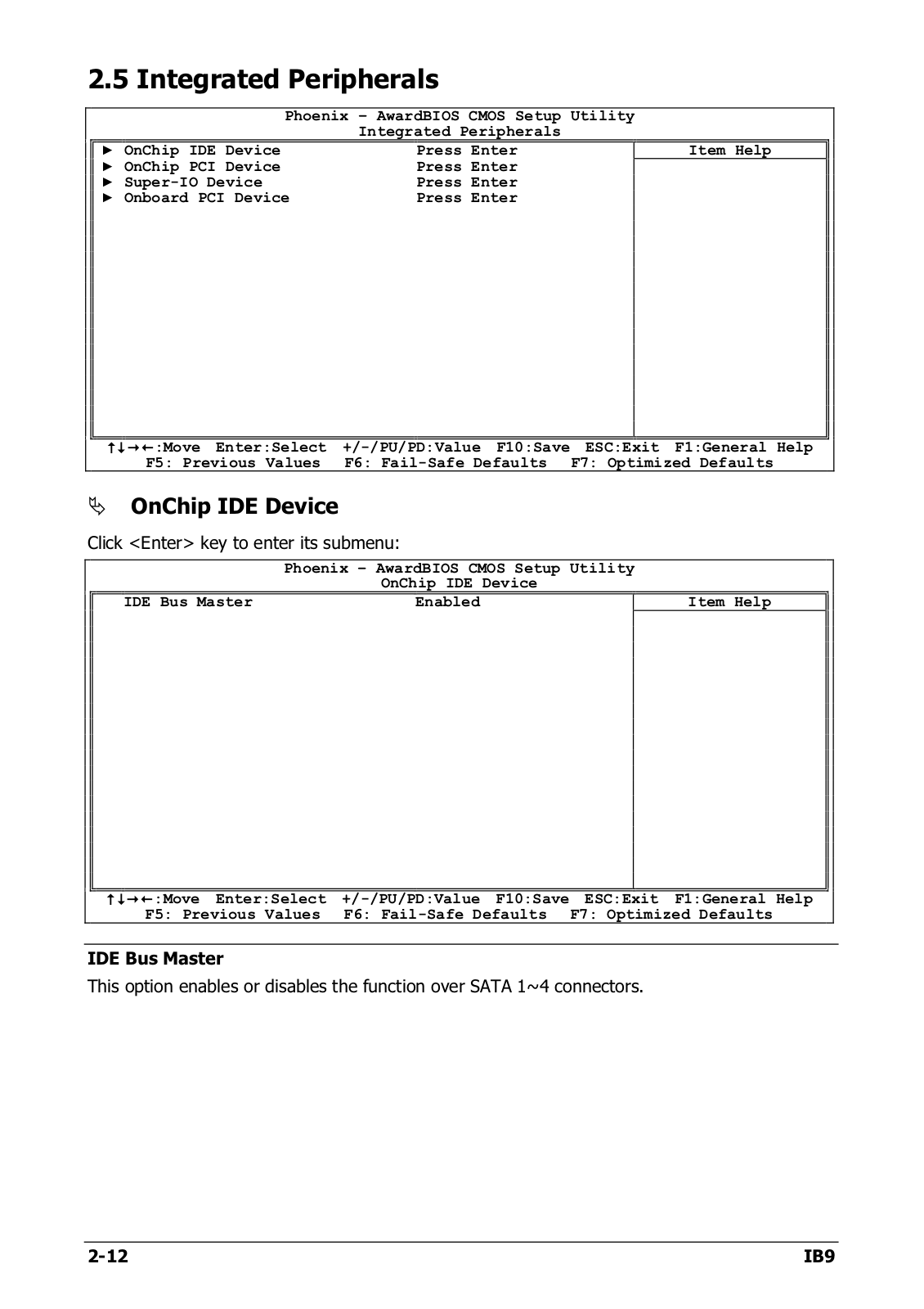

2.5

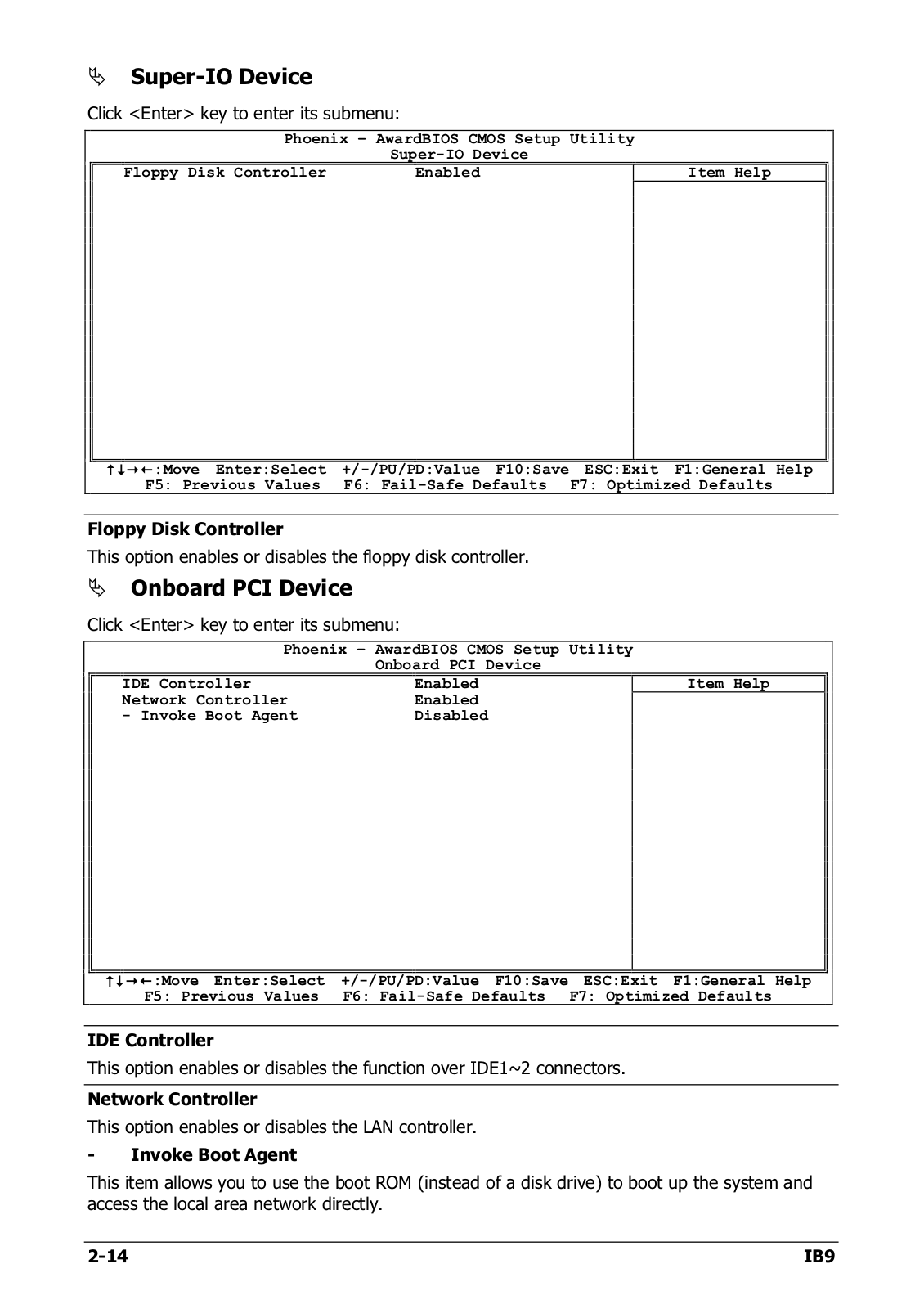

Integrated Peripherals................................................................

2-12

2.6

Power Management Setup..........................................................

2-15

2.7

PnP/PCI Configurations ..............................................................

2-17

2.8

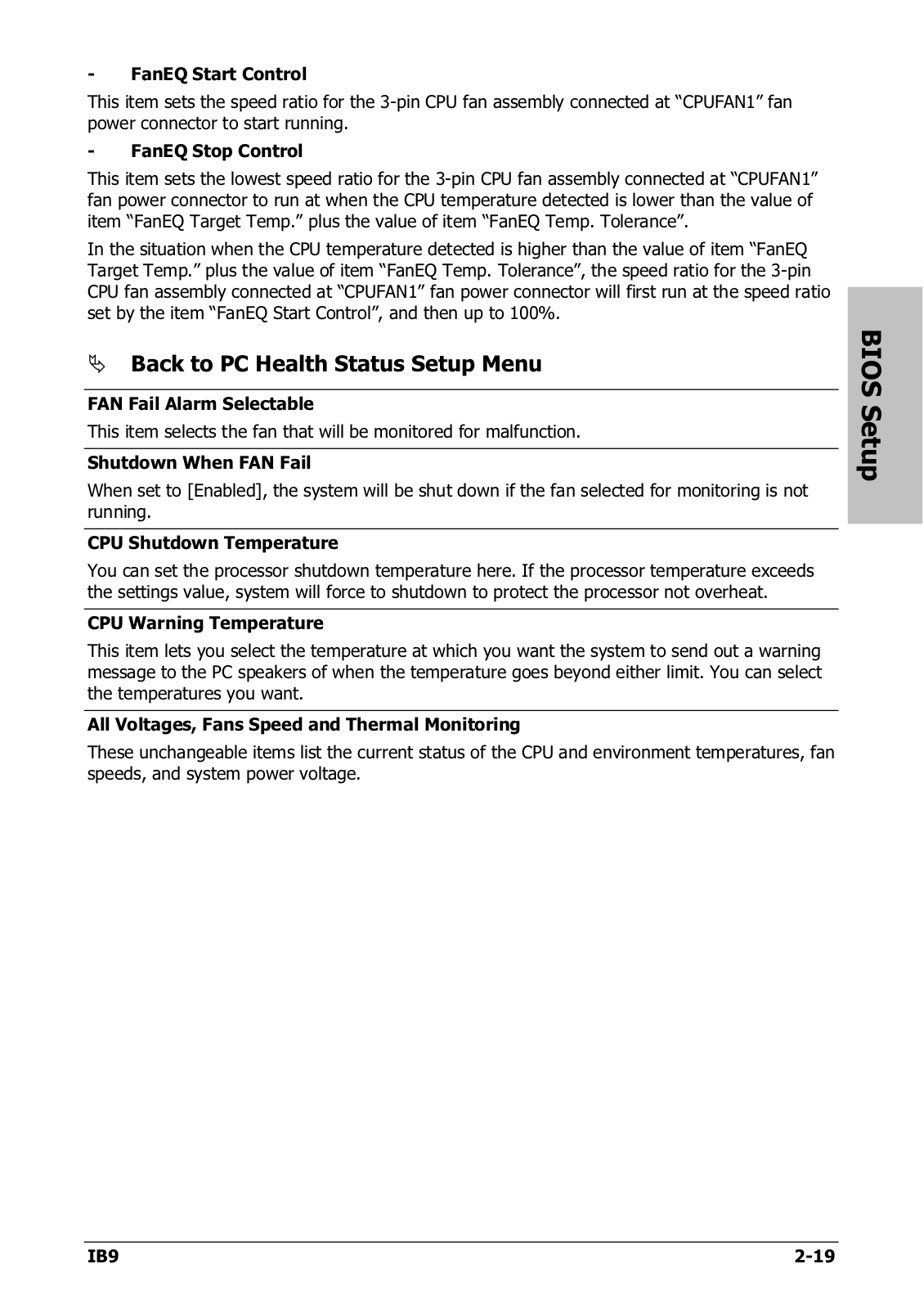

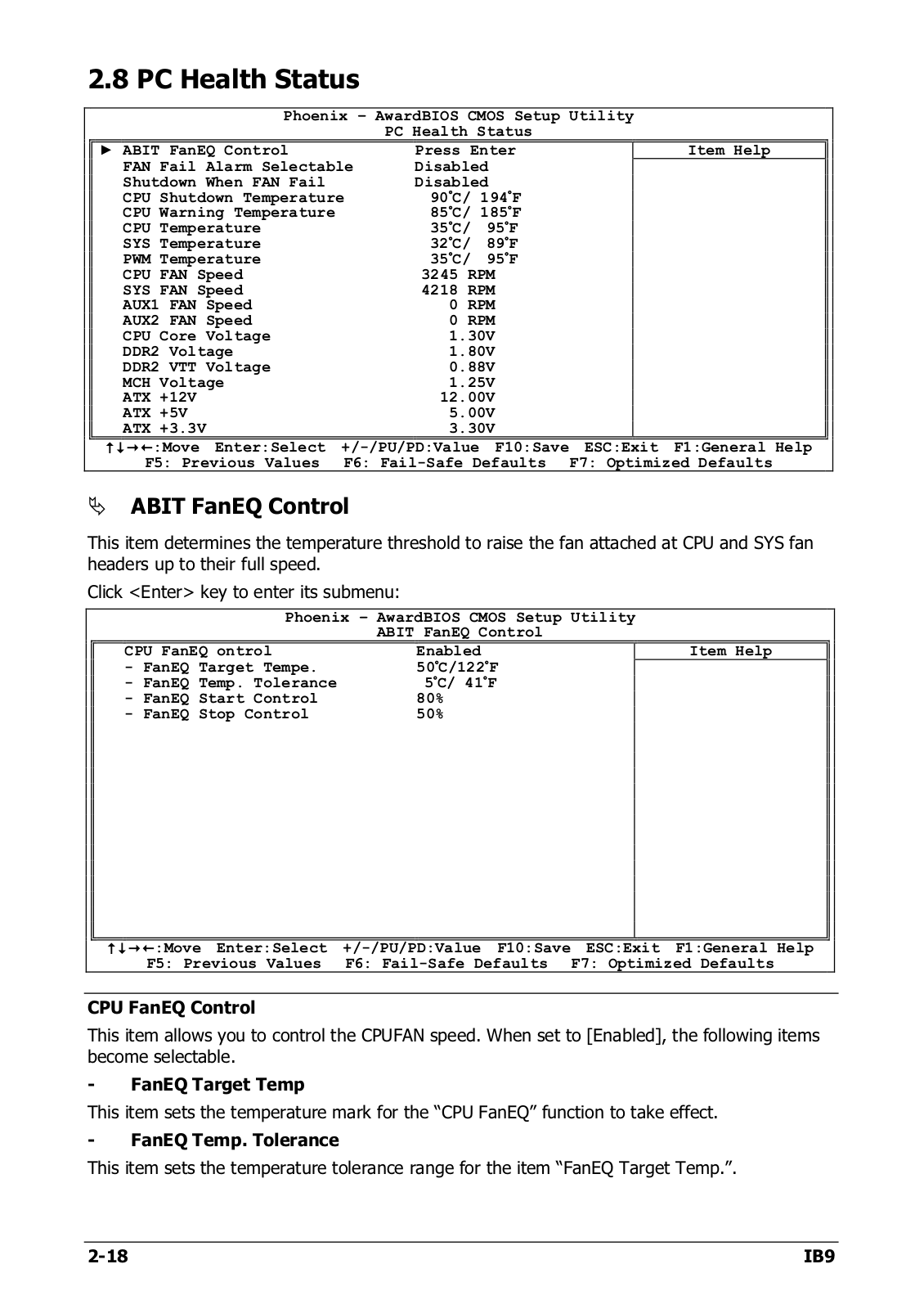

PC Health Status........................................................................

2-18

2.9

Load Fail-SafeDefaults ..............................................................

2-20

2.10

Load Optimized Defaults...........................................................

2-20

2.11

Set Password...........................................................................

2-20

2.12

Save & Exit Setup ....................................................................

2-20

2.13

Exit Without Saving..................................................................

2-20

3. Driver & Utility .................................................................

3-1

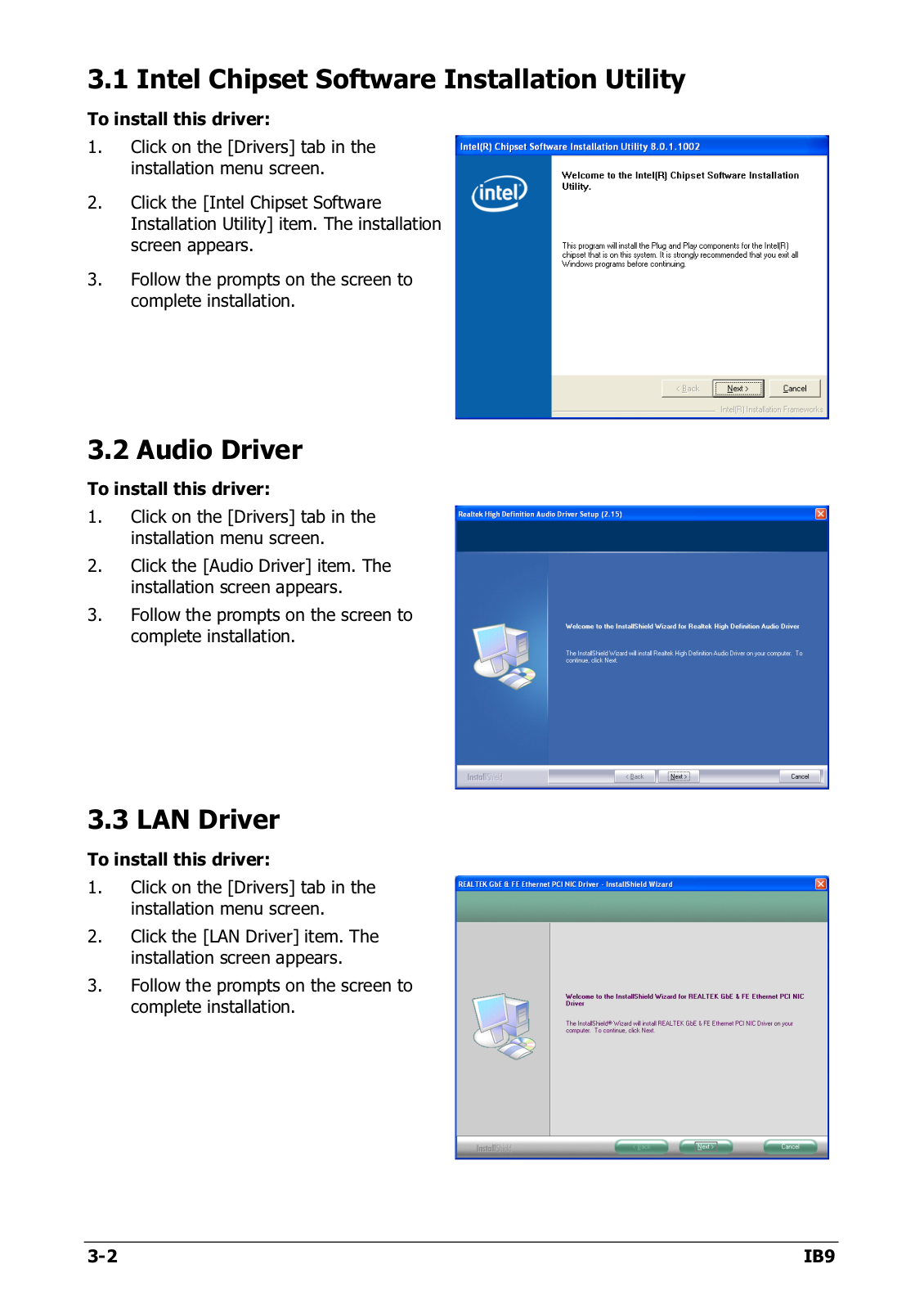

3.1 Intel Chipset Software Installation Utility .......................................

3-2

Appendix QIG Multilingual Utility & Driver Setup BIOS Setup Hardware

IB9

iii

3.2

Audio Driver ................................................................................

3-2

3.3

LAN Driver ..................................................................................

3-2

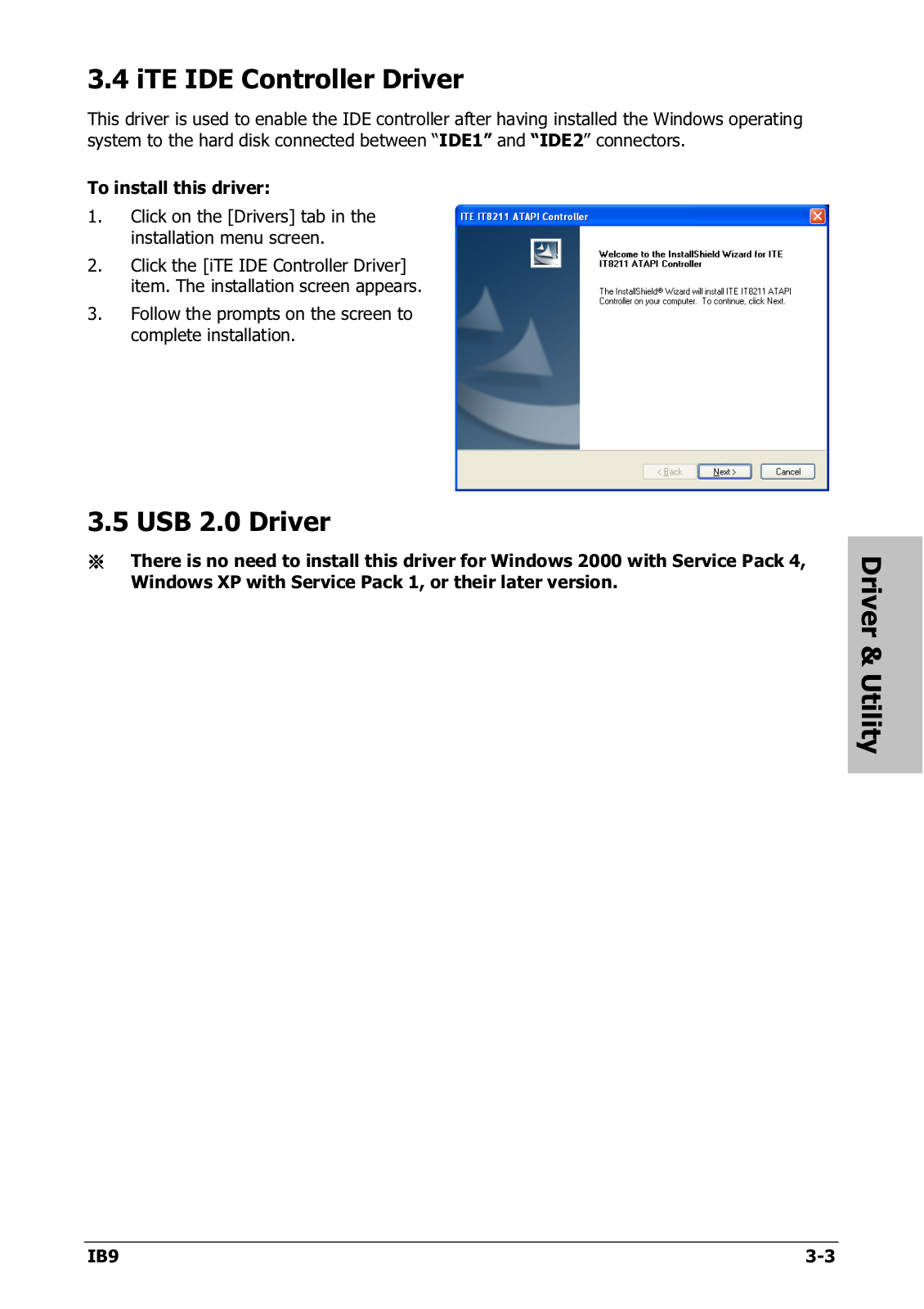

3.4 iTE IDE Controller Driver ..............................................................

3-3

3.5

USB 2.0 Driver.............................................................................

3-3

3.6

ABIT EQ (The Hardware Doctor Utility)..........................................

3-4

3.7

FlashMenu (BIOS Update Utility)...................................................

3-5

3.8

Build A Driver Disk Under Windows Environment............................

3-6

3.9

Build A Driver Disk Under DOS Environment ..................................

3-7

4. Multilingual Quick Installation Guide ..............................

4-1

4.1

French//Guide d'Installation Rapide...............................................

4-1

4.2

German//Kurze Installationsanleitung............................................

4-3

4.3

Italian//Guida all’installazione rapida .............................................

4-5

4.4

Spanish//Guía rápida de instalación...............................................

4-7

4.5

Portuguese//Guia de instalação rápida ..........................................

4-9

4.6

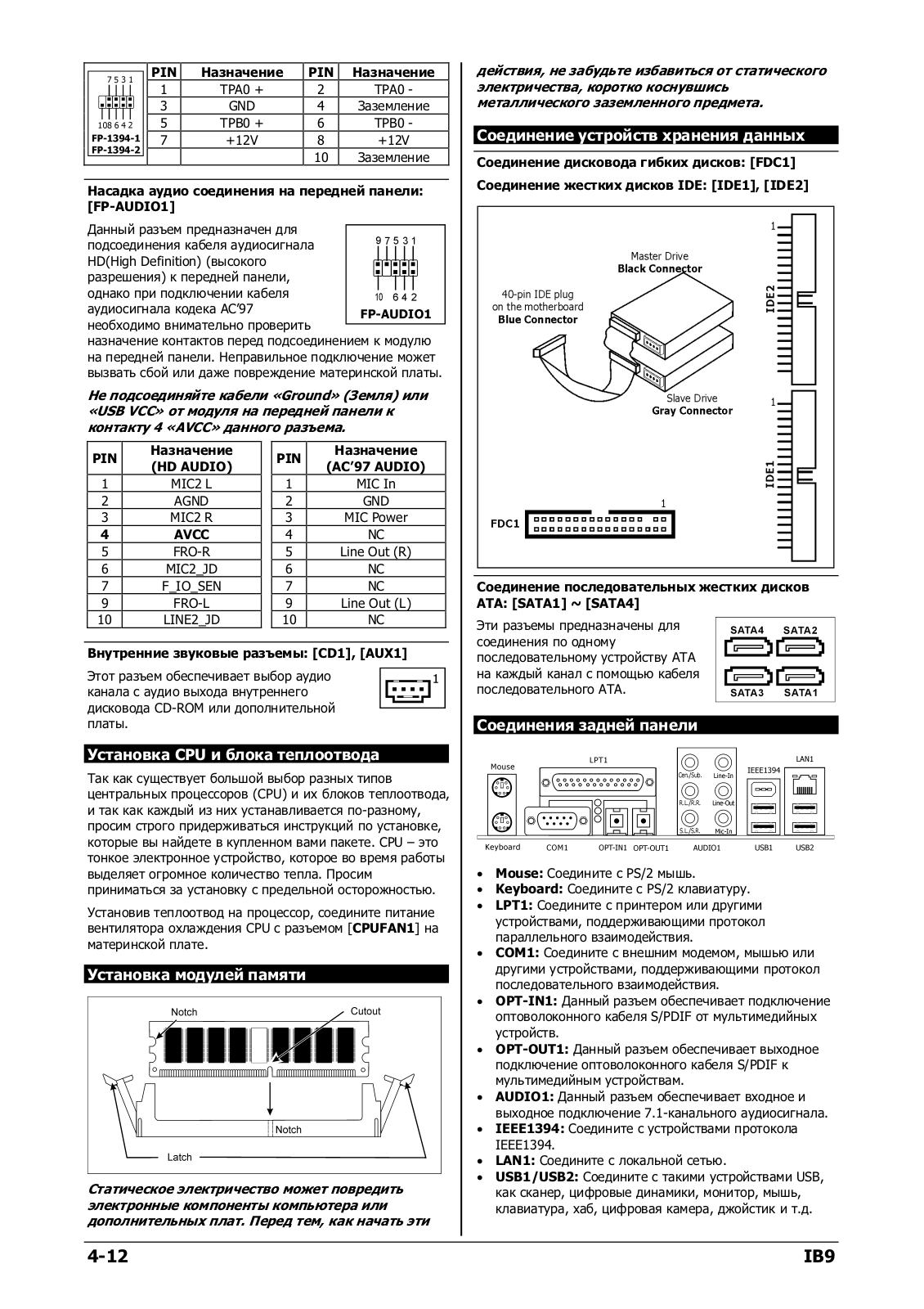

Russian//Краткое руководство по установке .............................

4-11

4.7

Estonian//Kiirpaigaldusjuhend.....................................................

4-13

4.8

Latvian//Ātrās instalēšanas instrukcija .........................................

4-15

4.9

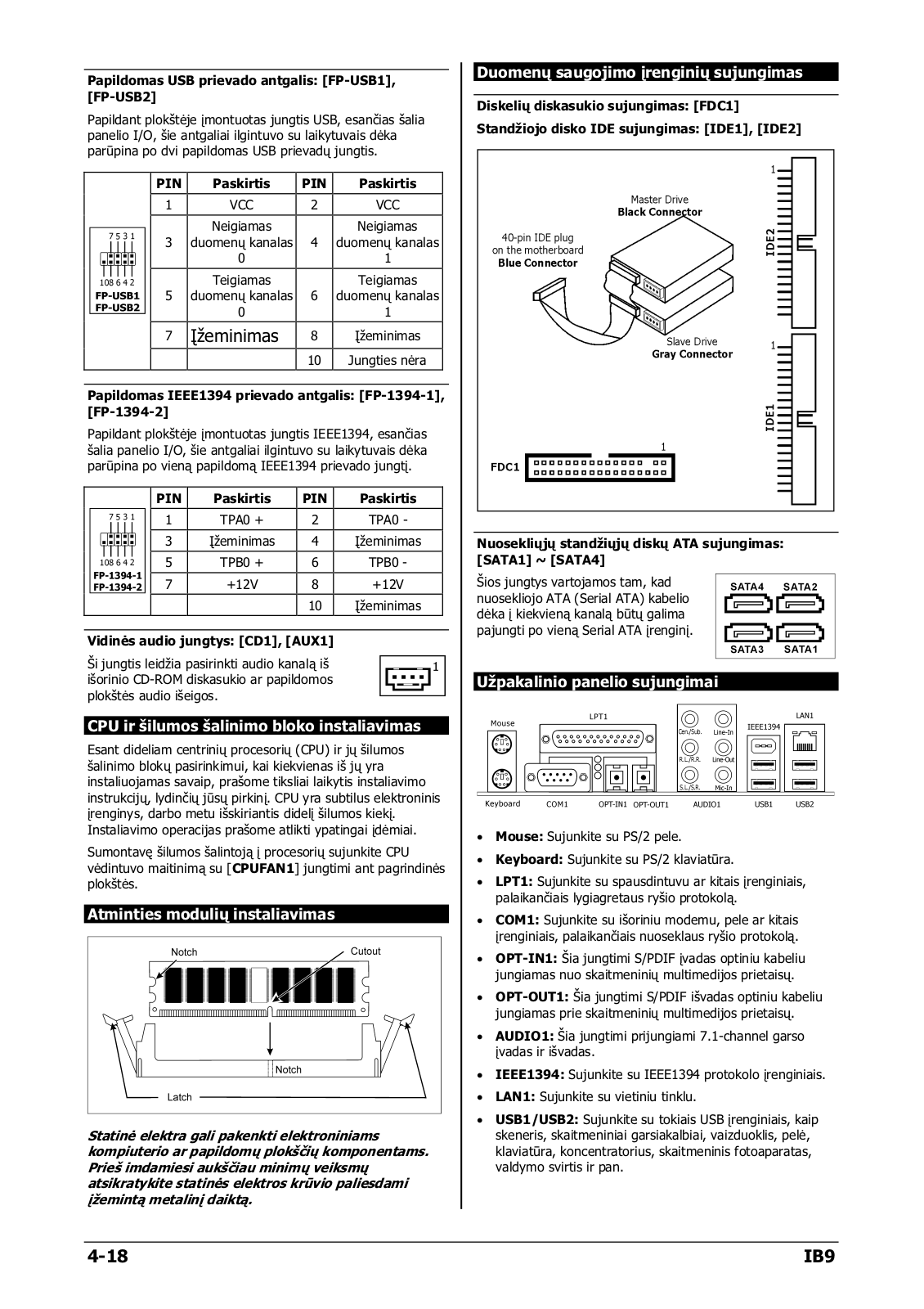

Lithuanian//Trumpas instaliavimo vadovas...................................

4-17

4.10

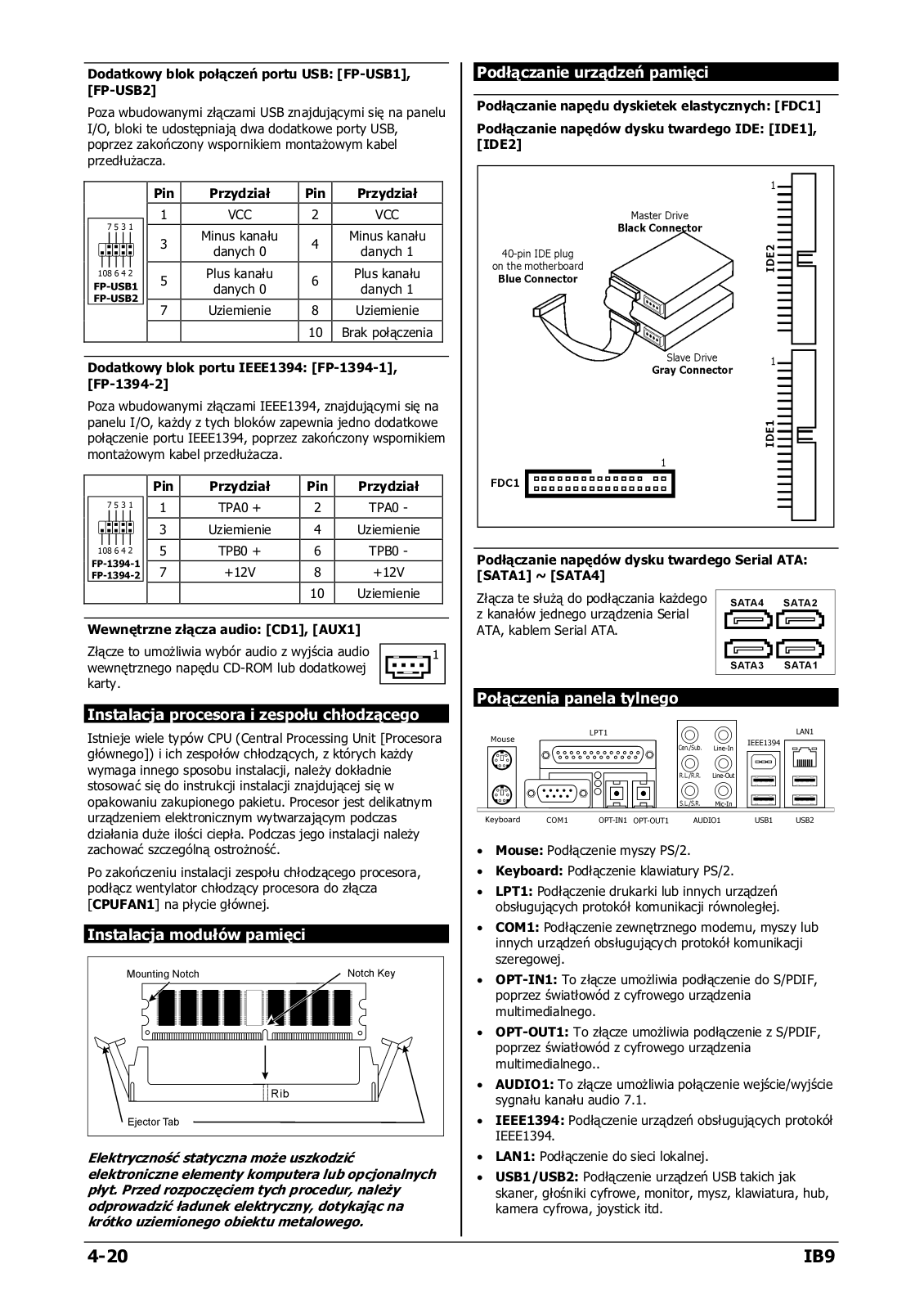

Polish//Instrukcja szybkiej instalacji...........................................

4-19

4.11

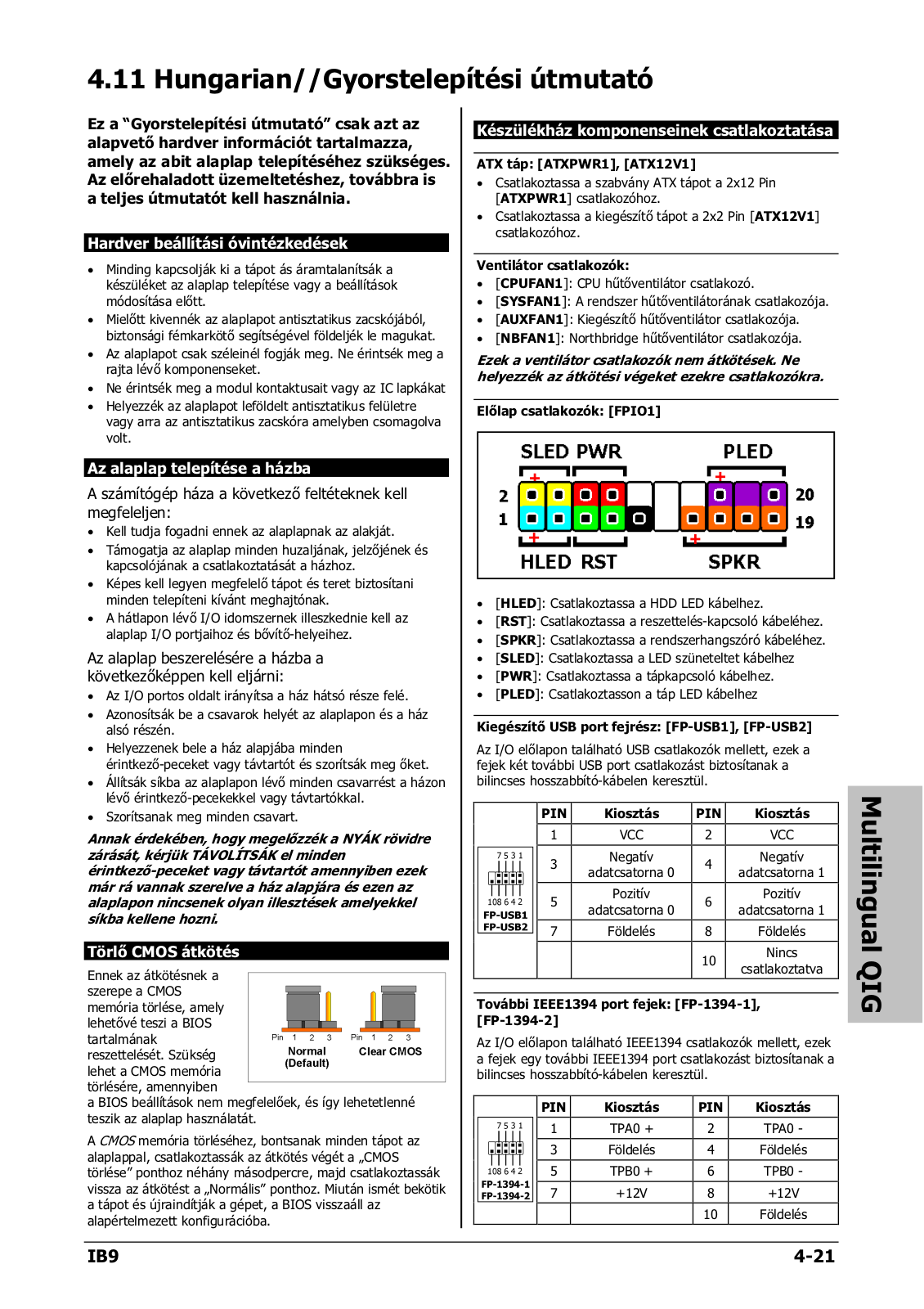

Hungarian//Gyorstelepítési útmutató .........................................

4-21

4.12

Turkish//Hızlı Kurulum Kılavuzu.................................................

4-23

4.13

Arabic// .........................................................

4-25

4.14

Persian// ....................................................

4-27

4.15

Japanese// ...................................

4-29

4.16

Korean// .......................................................

4-31

4.17

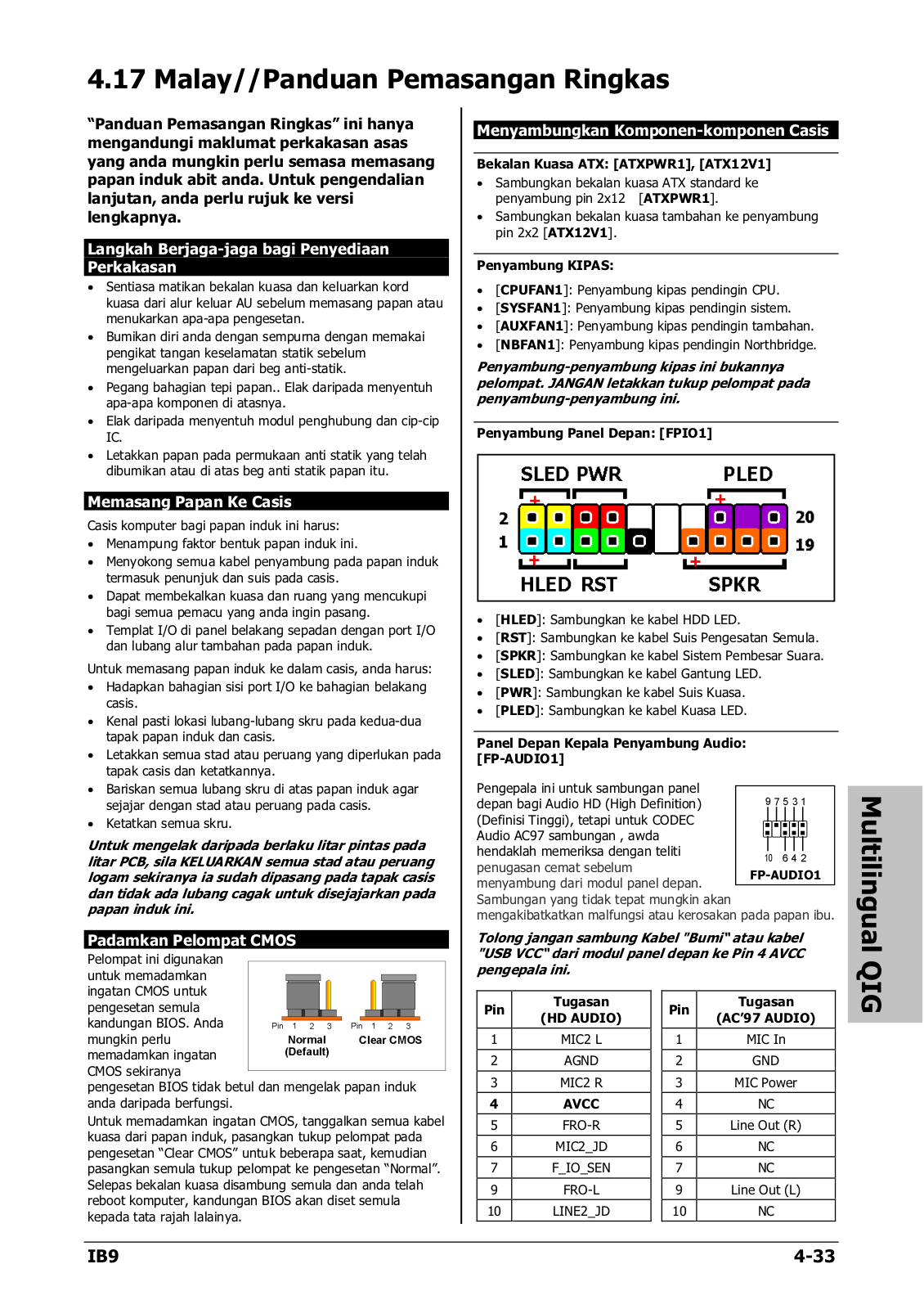

Malay//Panduan Pemasangan Ringkas.......................................

4-33

4.18

Thai// ! ! ........................................................

4-35

4.19

................................................................................

4-37



4.19.1 ..............................................................................

4-37



4.19.2 .................................................................

4-38

4.20

................................................................................

4-40



4.20.1 ..............................................................................

4-40



4.20.2 .................................................................

4-41

5. Appendix ..........................................................................

5-1

5.1 Troubleshooting (How to Get Technical Support?)..........................

5-1

5.1.1 Q & A.................................................................................

5-1

5.1.2 Technical Support Form ......................................................

5-4

5.1.3 Contact Information ............................................................

5-5





iv

IB9

1. Hardware Setup

1.1 Specifications

CPU



Internal I/O Connectors

• Support Intel Core 2 Duo, Pentium



1x

Floppy port





Extreme Edition, Pentium D, Pentium 4



2x

ATA 100 IDE connectors

Processor with 1066/800MHz FSB





• 4x SATA 3Gb/s connectors











3x

USB 2.0 headers

Chipset



• Intel P965 / ICH8



1x

FP-Audioheader





• 1x CD-Inconnector

Memory













• 4x 240-pinDIMM slots support



Rear Panel I/O





maximum memory capacity up to 8GB



1x

PS/2 Keyboard connector





• Supports Dual Channel DDR2



1x

PS/2 Mouse connector

800/667/533 Un-bufferedNon-ECC





1x

S/PDIF Out





memory























• 1x 7.1CH Audio Connector

LAN



4x

USB 2.0 connectors

• Onboard 10/100/1000M PCI controller



1x

RJ-45Gigabit LAN connector



















Audio















ABIT Engineered



• Onboard 7.1 CH HD Audio CODEC







ABIT SoftMenu

Technology





















Serial ATA















RoHS

















• 4x SATA 3Gb/s



100% Lead-freeprocess and RoHS











compliant





Expansion Slots





















• 1x PCI-EX16 slot



Miscellaneous





• 3x PCI-EX1 slots



ATX form factor (305mm x 245mm)

2x PCI slots

Specifications and information contained herein are subject to change without notice.

Setup Hardware

IB9

1-1

1.2 Motherboard Layout

1-2

IB9

1.3 Choosing a Computer Chassis

Choose a chassis big enough to install this motherboard.

As some features for this motherboard are implemented by cabling connectors on the motherboard to indicators and switches or buttons on the chassis, make sure your chassis supports all the features required.

If there is possibility of adopting some more hard drives, make sure your chassis has sufficient power and space for them.

Most chassis have alternatives for I/O shield located at the rear panel. Make sure the I/O shield of the chassis matches the I/O port configuration of this motherboard. You can find an I/O shield specifically designed for this motherboard in its package.

1.4 Installing Motherboard

Most computer chassis have a base with many mounting holes to allow the motherboard to be securely attached, and at the same time, prevent the system from short circuits. There are two ways to attach the motherboard to the chassis base: (1) with studs, or (2) with spacers.

Basically, the best way to attach the board is with studs. Only if you are unable to do this should you attach the board with spacers. Line

up the holes on the board with the mounting holes on the chassis. If the holes line up and there are screw holes, you can attach the board with studs. If the holes line up and there are only slots, you can only attach with spacers. Take the tip of the spacers and insert them into the slots. After doing this to all the slots, you can slide the board into position aligned with slots. After the board has been positioned, check to make sure everything is OK before putting the chassis back on.

Always power off the computer and unplug the AC power cord before adding or removing any peripheral or component. Failing to so may cause severe damage to your motherboard and/or peripherals. Plug in the AC power cord only after you have carefully checked everything.

To install this motherboard:



1.

Locate all the screw holes on the





motherboard and the chassis base.



2.

Place all the studs or spacers needed on

panel.



the chassis base and have them tightened.





3.

Face the motherboard’s I/O ports toward

rear



the chassis’s rear panel.





4.

Line up all the motherboard’s screw holes

chassis’s



have them tightened.



with those studs or spacers on the chassis.



5.

Install the motherboard with screws and





To prevent shorting the PCB circuit,

the





please REMOVE the metal studs or

Face



spacers if they are already fastened







on the chassis base and are without





mounting-holeson the motherboard





to align with.









IB9



1-3

Setup Hardware

1.5 Checking Jumper Settings

For a 2-pinjumper, plug the









jumper cap on both pins will









make it CLOSE (SHORT).









Remove the jumper cap, or









plug it on either pin









(reserved for future use) will









leave it at OPEN position.

SHORT

OPEN

OPEN











For 3-pinjumper, pin 1~2 or pin 2~3 can be shorted by plugging the jumper cap in.

Pin 1~2 SHORT Pin 2~3 SHORT

1.5.1 CMOS Memory Clearing Header and Backup Battery

The time to clear the CMOS memory occurs when (a) the CMOS data becomes corrupted, (b) you forgot the supervisor or user password preset in the BIOS menu, (c) you are unable to boot-upthe system because the CPU ratio/clock was incorrectly set in the BIOS menu, or (d) whenever there is modification on the CPU or memory modules.

This header uses a jumper cap to clear the CMOS memory and have it reconfigured to the default values stored in BIOS.

Pins 1 and 2 shorted (Default): Normal operation.

Pins 2 and 3 shorted:

Clear CMOS memory.

To clear the CMOS memory and load in the default values:

1.Power off the system.

2.Set pin 2 and pin 3 shorted by the jumper cap. Wait for a few seconds. Set the jumper cap back to its default settings ---pin 1 and pin 2 shorted.

3.Power on the system.

4.For incorrect CPU ratio/clock settings in the BIOS, press <Del> key to enter the BIOS setup menu right after powering on system.

5.Set the CPU operating speed back to its default or an appropriate value.

6.Save and exit the BIOS setup menu.

1-4

IB9

CMOS Backup Battery:

An onboard battery saves the CMOS memory to keep the BIOS information stays on even after disconnected your system with power source. Nevertheless, this backup battery exhausts after some five years. Once the error message like “CMOS BATTERY HAS FAILED” or “CMOS checksum error” displays on monitor, this backup battery is no longer functional and has to be renewed.

To renew the backup battery:

1.Power off the system and disconnect with AC power source.

2.Remove the exhausted battery.

3.Insert a new CR2032 or equivalent battery. Pay attention to its polarity. The “+” side is its positive polarity.

4.Connect AC power source and power on the system.

5.Enter the BIOS setup menu. Reconfigure the setup parameters if necessary.

CAUTION:

Danger of explosion may arise if the battery is incorrectly renewed.

Renew only with the same or equivalent type recommended by the battery manufacturer.

Dispose of used batteries according to the battery manufacturer’s instructions.

Setup Hardware

IB9

1-5

1.5.2 Wake-upHeader

These headers use a jumper cap to enable/disable the wake-upfunction.

USB-PWR1:

Pin 1-2shorted (Default): Disablewake-upfunction support at USB1 port. Pin2-3shorted: Enablewake-upfunction support at USB1 port.

USB-PWR2:

Pin 1-2shorted (Default): Disablewake-upfunction support at USB2 port. Pin2-3shorted: Enablewake-upfunction support at USB2 port

1-6

IB9
